Star SR-32J type N
Star - SR-32J type N
2008
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Star SR-32J type N Automatic Lathe

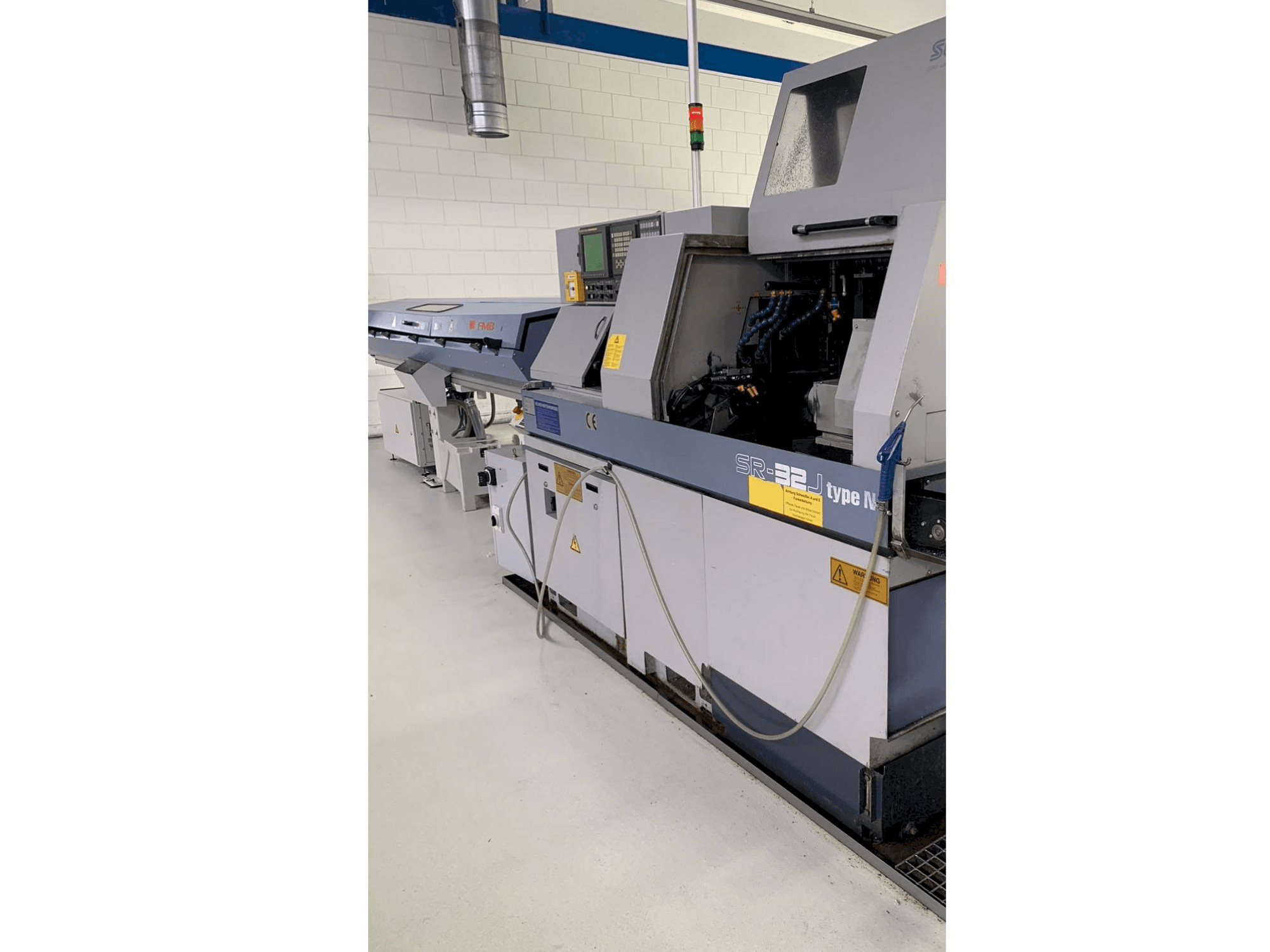

This Star SR-32J type N Automatic Lathe was built in the year 2008. It has 22740 working hours. It is equipped with a Fanuc Series 18i-TB control unit. This machine can work with a spindle speed up to 7000 rpm. Bar feeder included: FMB type Turbo 3-36/3200A – YOM 2008.
Overview
- brand: Star
- year: 2008
- MODEL: SR-32J type N
- production hours: 22740
- application type: Turning
- Location: Poland
- machine type: Lathe
- availability: Sold
- control unit brand: Fanuc
- GINDUMAC ID: PL-TUR-STA-2008-00001
Technical Information
General Data
- Measurements width: 2711 mm
- Measurements depth: 1275 mm
- Measurements height: 1705 mm
- Machine weight: 3100 kg
Control Unit
- Brand: Fanuc
- Model: Series 18i-TB
Main drive
- Spindle speed range: 7000 1/MIN
Media
- Main electronic connection: 400V / 50 Hz
- Power consumption: 6 kVA
- Chip conveyor: Yes
Additional Equipment
- - Bar feeder included in the offer: FMB type Turbo 3-36/3200A – YOM 2008
Additional Information
- Technical Machine Benefits:
- - Max machining diameter: 32 mm
- - Max headstock stroke: 80 mm
- - Co2 extinguishing system
- - Separate high-pressure unit, müller brand, type combiloop cl2
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
