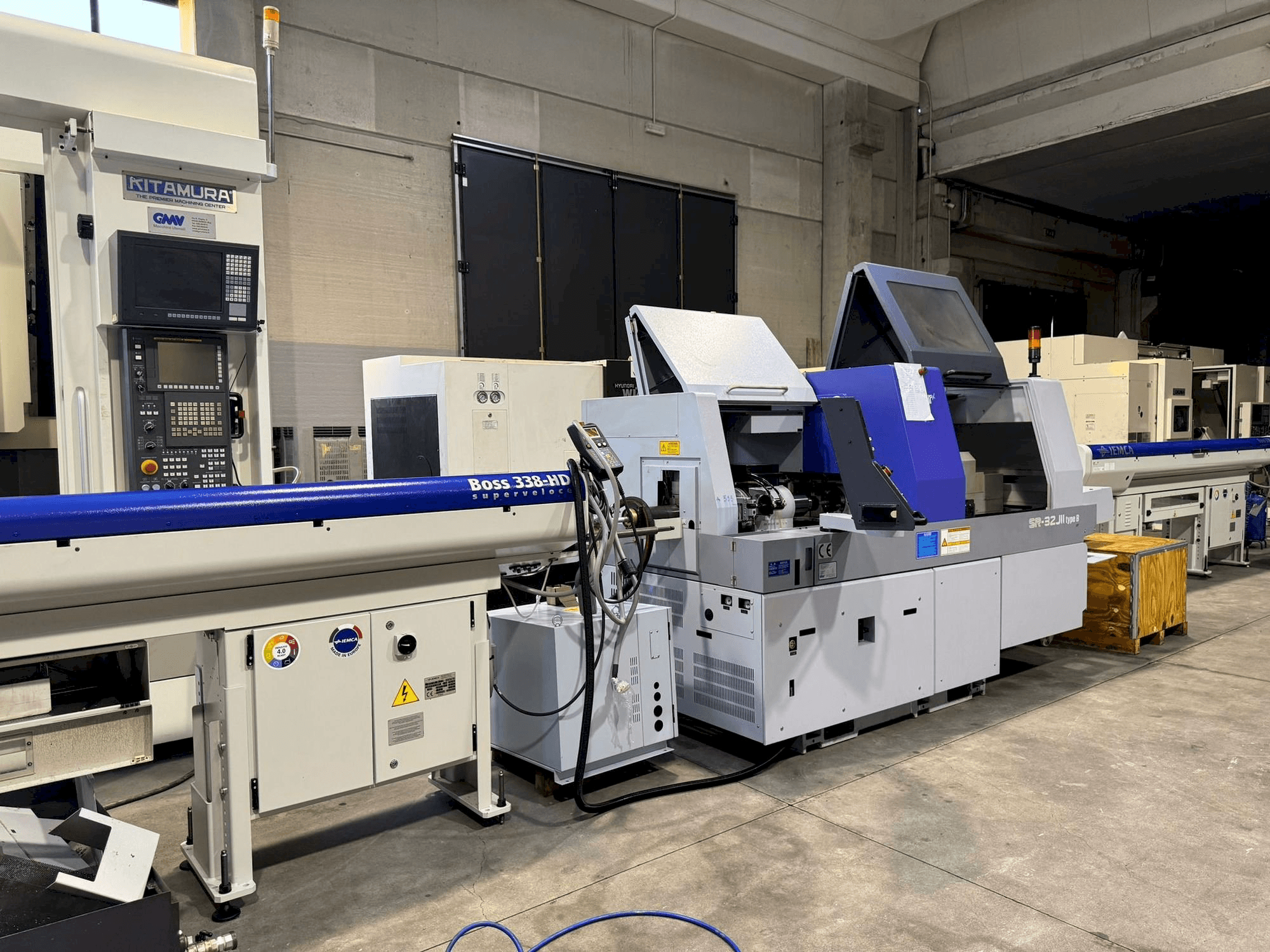

Front view of Star SR-32JII type B  machine

Star SR-32JII type B

Star - SR-32JII type B

2018

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This STAR SR-32JII type B Lathe was manufactured in the year 2018 in Japan and has 33087 production hours, of which 3810 are spindle hours. It is equipped with a Fanuc Series 32i-MODEL B control unit. The machine has a spindle speed of 8000 rpm.

Overview

  • brand: Star
  • year: 2018
  • MODEL: SR-32JII type B
  • production hours: 33087
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Fanuc
  • GINDUMAC ID: IT-TUR-STA-2018-00001

Technical Information

General Data

  • Measurements width: 2690 mm
  • Measurements depth: 1345 mm
  • Measurements height: 1780 mm
  • Machine weight: 4100 kg

Control Unit

  • Brand: Fanuc
  • Model: Series 32i-MODEL B

Main drive

  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 7.5-11 kW

Movement

  • X-AXIS Rapid traverse: 35m/min
  • Y-AXIS Rapid traverse: 35m/min
  • Z-AXIS Rapid traverse: 35m/min

Media

  • Power consumption: 8.8 kVA

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max. Machining diameter: ø32mm
      • - Max. Headstock stroke standard :320mm
      • - Tool shank: 16 mm
      • - 5-spindle sleeve holder number of tools front 5 tools, rear 5 tools
      • - Max. Drilling capability ø13mm
      • - Max. Tapping capability m12 x p1. 75
      • - Cross milling 3 tools (er20) + cartridge type 2 positions
      • - Cross milling 6 tools (er16)
      • - Max. Drilling capability ø10mm
      • - Max. Tapping capability m8 x p1. 25
    • Qualitative Machine Benefits:
      • - Max. Milling capability ø10mm
      • - Cross milling: max 6,000min -1
      • - Main spindle indexing angle c-axis control
      • - Coolant tank capacity 255 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
