➤ Pre-Owned Star SR20J type C Lathe

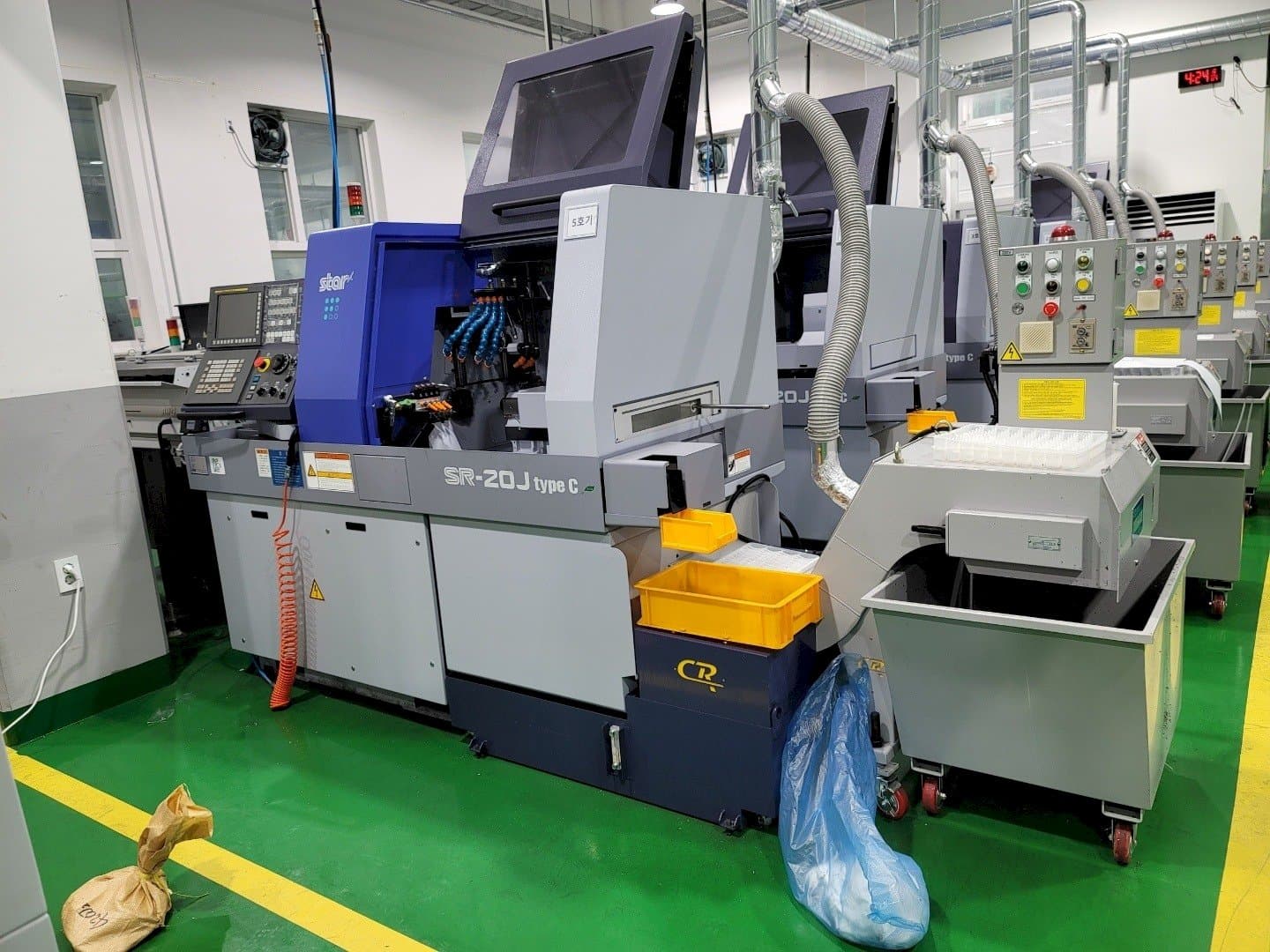

This Star SR20J type C Lathe was manufacture in Japan in the year 2020. This machine is operated through a FANUC Series 31i-MODEL B control unit. It can work with a spindle speed up to 10000 rpm and a headstock stroke 205 mm. This machine has a sub-spindle and 4 spindle drilling head. Included coolant pump 120 Bar.

Overview

brand: Star
year: 2020
MODEL: SR20J type C
application type: Turning
Location: South Korea
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Star SR20J type C

Control Unit

Control Brand: FANUC
Control Model: SERIES 31I-MODEL B

Dimensions

Machine Weight: 2200 kg

Technical Specification

Spindle Power: 2.2 kW
Spindle Speed: 10000 RPM

Additional Information

Additional equipment

INCLUDED COOLANT PUMP 120 BAR

Machine Benefits

Qualitative Machine Benefits

Rapid feed rate: 35m/min (xb, zb) - main spindle indexing angle: c axis control - axis: c1, c2, x1, y1, z1, x2, z2 - bar-feeder (barload bwg) - chip bucket - call right (led 3 step) - guideway type: lm guide - mpg handle; manual books - ce mark

Technical Machine Benefits

Max. Diameter: 20 mm - max. Headstock stroke standard: 205 mm - number of tools: 6 tools; front 4 tools, rear 4 tools - spindle speed: 8000 rpm (secondary) drive motor: 1. 2 kw - tool shank: 12 mm [4 spindle sleeve holder] - max. Drilling capability:∮10mm; max. Tapping capability: m8*p1. 25 - [2 spindle front sleeve holder] number of tools: front 2 tools - max. Drilling capability:∮ 8 mm, max. Depth of hole: 100mm - number of tools: cross milling 3 tools - max. Drilling capability:∮8 mm; max. Tapping capability: m6*p1. 0

Extra Information

THE MACHINE HAS SUB-SPINDLE AND 4 SPINDLE DRILLING HEAD

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
