STUDER - S33 CNCDE-GRI-STU-2004-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used STUDER S33 CNC For Sale | gindumac.com

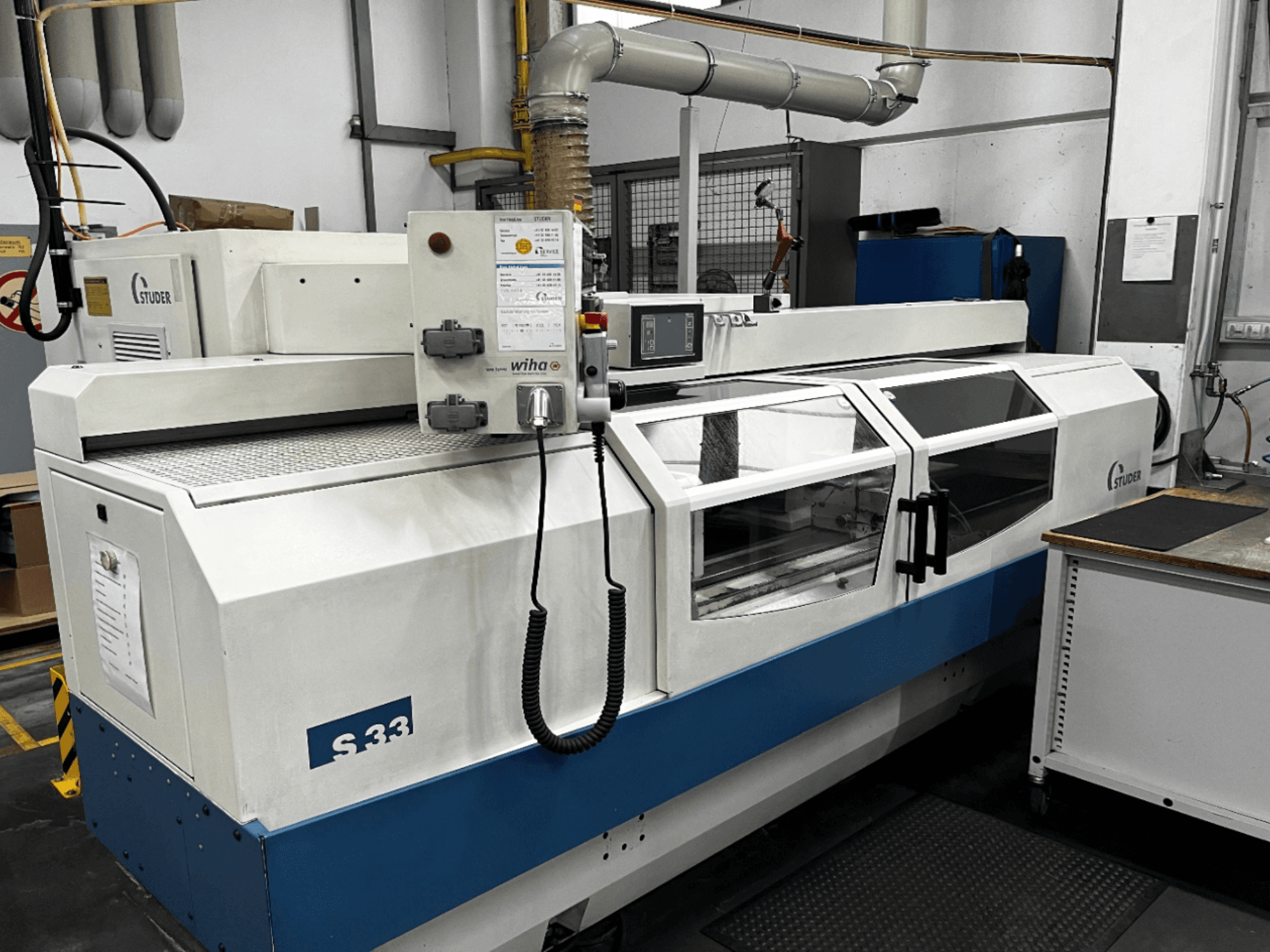

Cylindrical grinding machine manufactured in 2004. This STUDER S33 CNC features a Z-axis travel of 1000 mm and an X-axis travel of 285 mm. It is equipped with a grinding spindle diameter of 73 mm and can handle a maximum workpiece length of 1000 mm, with a weight capacity of 120 kg. If you are looking to get high-quality grinding capabilities, consider the STUDER S33 CNC machine we have for sale. Contact us for further details.
Overview
- brand: STUDER
- year: 2004
- MODEL: S33 CNC
- production hours: 19052
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- control unit brand: FANUC
Technical Information - STUDER S33 CNC
Control Unit
- Control Brand: FANUC
- Control Model: 21i TB
Dimensions
- Machine Height: 2200 mm
- Machine Length: 3500 mm
- Machine Weight: 4000 kg
- Machine Width: 3000 mm
Movement
- Number of Axes: 2
- X-axis Travel: 285 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 3200 RPM
Additional Information
Distance between centers 1000 mm
Center height 175 mm
Max workpiece length 1000 mm
Max workpiece diameter 175 mm
Max workpiece weight 120 kg
Workpiece weight between centers max. 80 kg (1000 mm)
Workpiece weight between centers max. 120 kg (650 mm)
Swiveling worktable ±8.5°
Granite machine bed S103
X-axis travel 285 mm
Z-axis travel 1000 mm
Programmable feed rate 0.001–5000 mm/min
Direct measuring system X-axis resolution 0.0001 mm
Direct measuring system Z-axis resolution 0.0001 mm
Grinding spindle head swivel range 0°–30°
Grinding wheel diameter max. 500 mm
Grinding wheel width 63 mm
Grinding wheel bore 203.2 mm
Grinding spindle diameter 73 mm
Grinding spindle motor power 7.5 kW
Spindle speed 3200 rpm
Workhead spindle bore 30 mm
Workhead drive power 3 kW
Roundness accuracy at least 0.0004 mm
Tailstock quill diameter 50 mm
Tailstock taper MK3
Hydraulically actuated tailstock quill
Pneumatic tailstock movement
Power supply 400 V ±10%
Frequency 50 Hz ±1 Hz
Control voltage 24 V DC
CNC control Fanuc 21i-TB
Program memory 64 kB
Program capacity 125 programs
Coolant system for emulsion
Coolant pump capacity 40 l/min at 3 bar
Paper band filter capacity 375 liters
Filter fleece width 1000 mm
Mist extraction capacity up to 1800 m³/h
Machine dimensions 3.5 m x 3 m x 2.2 m
Machine weight 4000 kg
Machine lighting 24 V 36 W
Utilization 40%
Additional equipment
OPTIONAL for an additional charge
9x flange
1x Studer steady rest with protective cover
Balacing device
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
