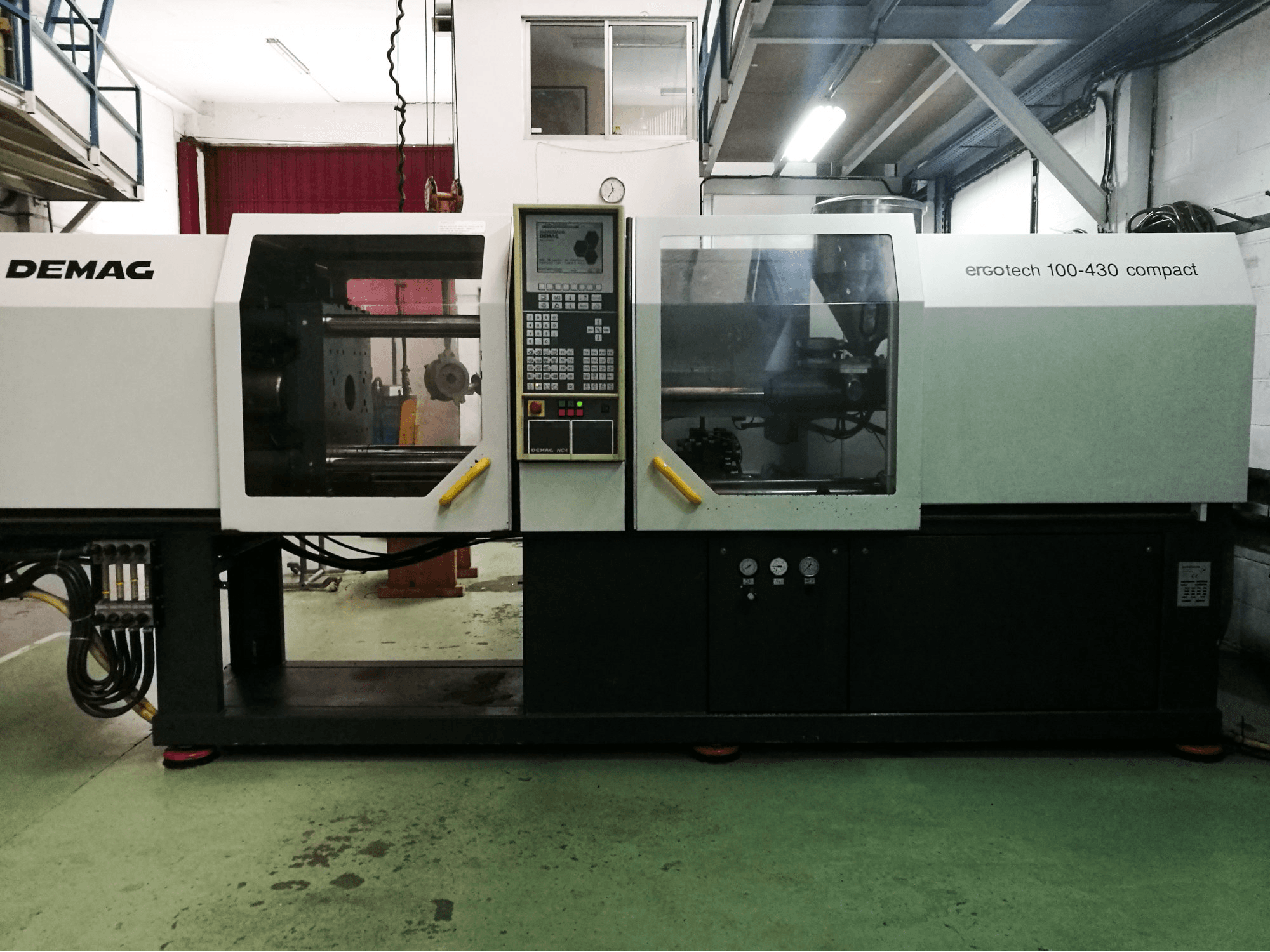

Front view of DEMAG ERGOtech 100-430 compact machine

SUMITOMO SHI DEMAG - ERGOtech 100-430 compactES-INJ-DEM-1997-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DEMAG ERGOtech 100-430 compact Injection Moulding Machine dates from the year 1997 and has worked for 59050 production hours since its manufacture. It is equipped with a DEMAG NC4 Control unit that makes this machine very easy to handle, and operates with a 2020 bar injection pressure and 1000 kN clamping force.

Overview

  • brand: SUMITOMO SHI DEMAG
  • year: 1997
  • MODEL: ERGOtech 100-430 compact
  • production hours: 59050
  • application type: Injection Moulding
  • Location: Spain
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - SUMITOMO SHI DEMAG ERGOtech 100-430 compact

General Data

  • Measurements width: 4200 mm
  • Measurements depth: 1400 mm
  • Measurements height: 1900 mm
  • Machine weight: 3700 kg

Control Unit

  • Model: NC4

Injection Unit

  • Screw diameter: 40 mm
  • Shot weight: 205 g/PS
  • Stroke volume: 231.2 cm³
  • Injection pressure: 2020 bar
  • Heating capacity: 11.1 kW
  • Nozzle pressure: 60 kN

Clamping unit

  • Clamping force: 1000 kN
  • Opening stroke: 500 mm
  • Mould height min: 250 mm
  • Size of mold platens: 580 x 590 mm
  • Ejector stroke: 150 mm
  • Ejector force for / back: 41.2 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
