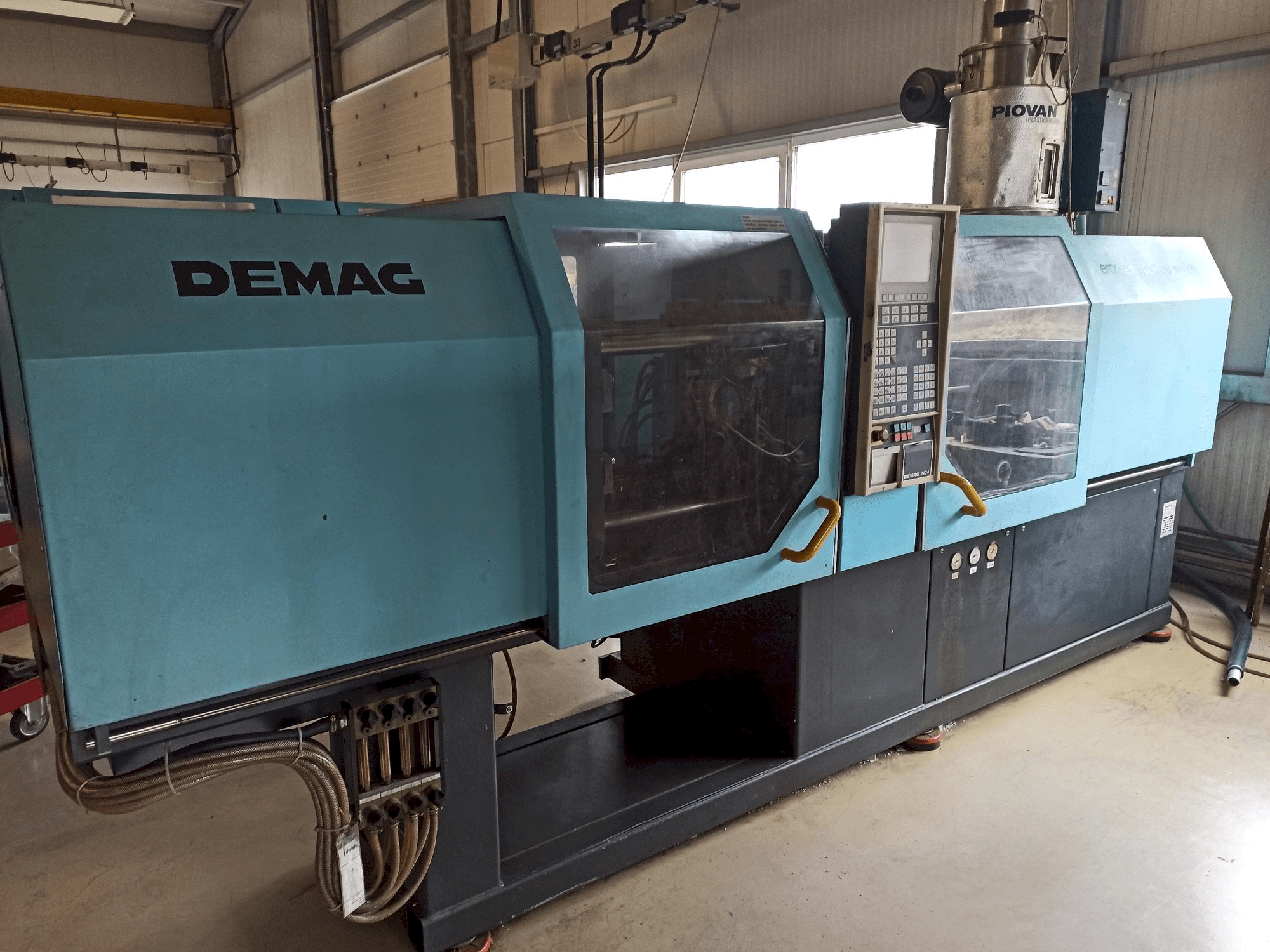

Left side view of DEMAG Ergotech 150-610 Compact  machine

SUMITOMO SHI DEMAG - Ergotech 150-610 CompactDE-INJ-DEM-1998-00005

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DEMAG Ergotech 150-610 Compact Injection Moulding Machine was built in the year 1998 and has 13860 pump hours. It is equipped with a Demag NC IV control unit. The machine has a clamping force of 1650 kN and a screw diameter of 40 mm.

Overview

  • brand: SUMITOMO SHI DEMAG
  • year: 1998
  • MODEL: Ergotech 150-610 Compact
  • production hours: 13860
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - SUMITOMO SHI DEMAG Ergotech 150-610 Compact

General Data

  • Measurements width: 5200 mm
  • Measurements depth: 1600 mm
  • Measurements height: 2100 mm
  • Machine weight: 7400 kg

Control Unit

  • Model: NC IV
  • CNC main language: German

Injection Unit

  • Screw diameter: 40 mm
  • Shot weight: 230 g
  • Injection pressure: 2418 bar

Clamping unit

  • Clamping force: 1650 kn
  • Max open daylight: 1060 mm
  • Distance between bars: 500 mm x 500 mm
  • Mould height min: 250 mm
  • Mould height max: 560 mm
  • Size of mold platens: 750 mm x 750 mm
  • Ejector stroke: 160 mm
  • Ejector force for / back: 58/26 kN

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max mold weight 1700 kg
      • - Core pulls hydr. 2 pcs
      • - L / d 20
      • - Electrical and hydraulic equipment
      • - Rated power of the pump motor: 34 kw
      • - Installed heating power: 11,7 kw
    • Qualitative Machine Benefits:
      • - General condition: only one shift used

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
