SUMITOMO SHI DEMAG - Ergotech 200/560-840 conceptEE-INJ-DEM-2003-00002
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Plastics Processing Machinery
- DEMAG Ergotech 200/560-840 concept injection moulding machine

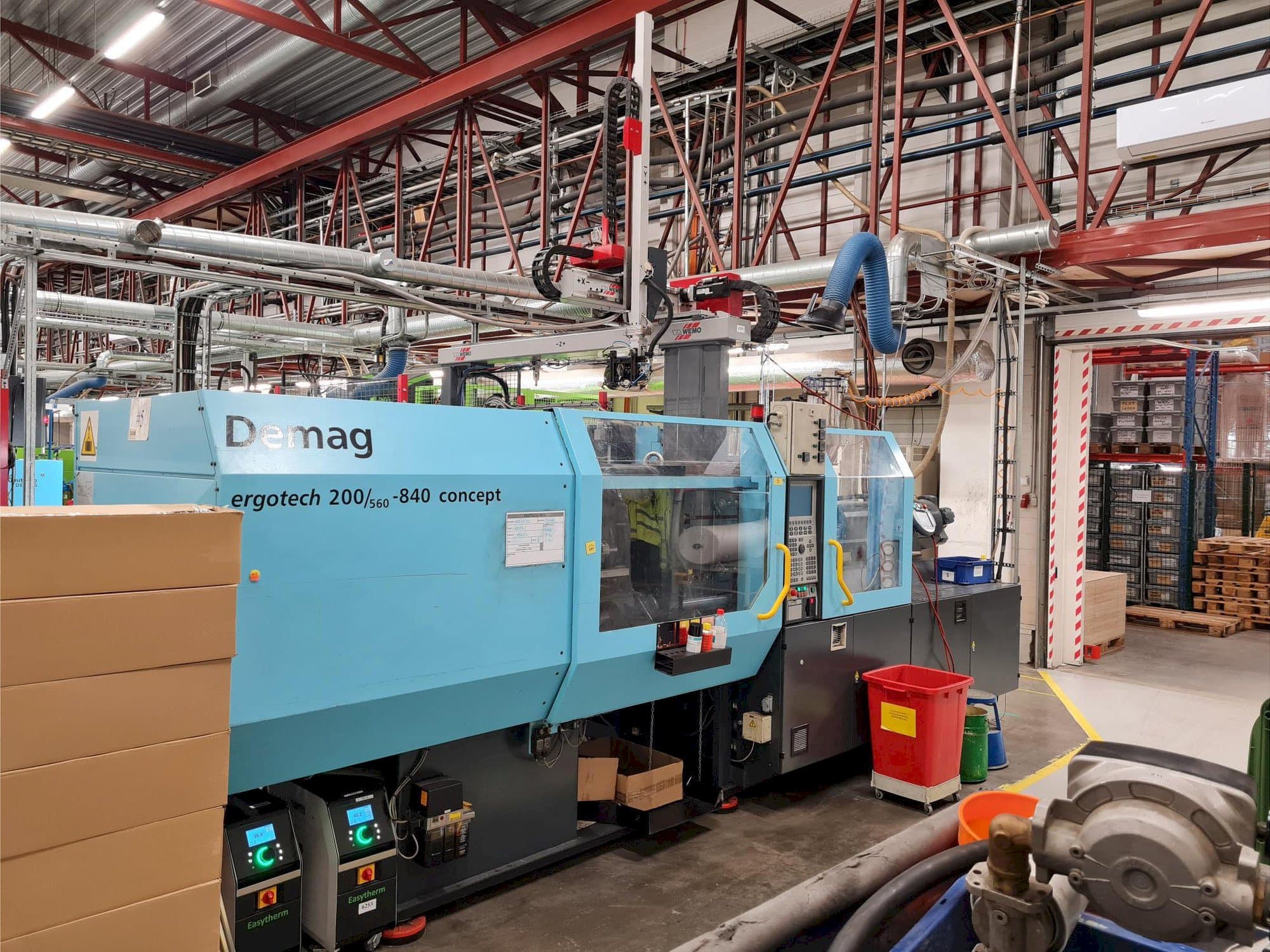

This DEMAG Ergotech 200/560-840 concept injection moulding machine was built in the year 2003 and has 75370 pump hours. The machine has a clamping force of 2000 kN and a screw diameter of 50 mm
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2003
- MODEL: Ergotech 200/560-840 concept
- production hours: 75370
- application type: Injection Moulding
- Location: Estonia
- machine type: Hydraulic Injection Moulding Machine
Technical Information - SUMITOMO SHI DEMAG Ergotech 200/560-840 concept
General Data
- Machine weight: 10100 kg
Injection Unit
- Screw diameter: 50 mm
- Stroke volume: 442 CM³
- Injection pressure: 2402 bar
Clamping unit
- Clamping force: 2000 kn
- Opening stroke: 575 mm
- Distance between bars: 560 x 560 mm
- Mould height min: 310/275 mm
- Mould height max: 660 mm
- Ejector stroke: 180 mm
Additional Information
- Technical Machine Benefits:
- - Core 2
- - Hot runners no
- - Intrusion yes
- - Centering 160 mm
- - WEMU handlings no included
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
