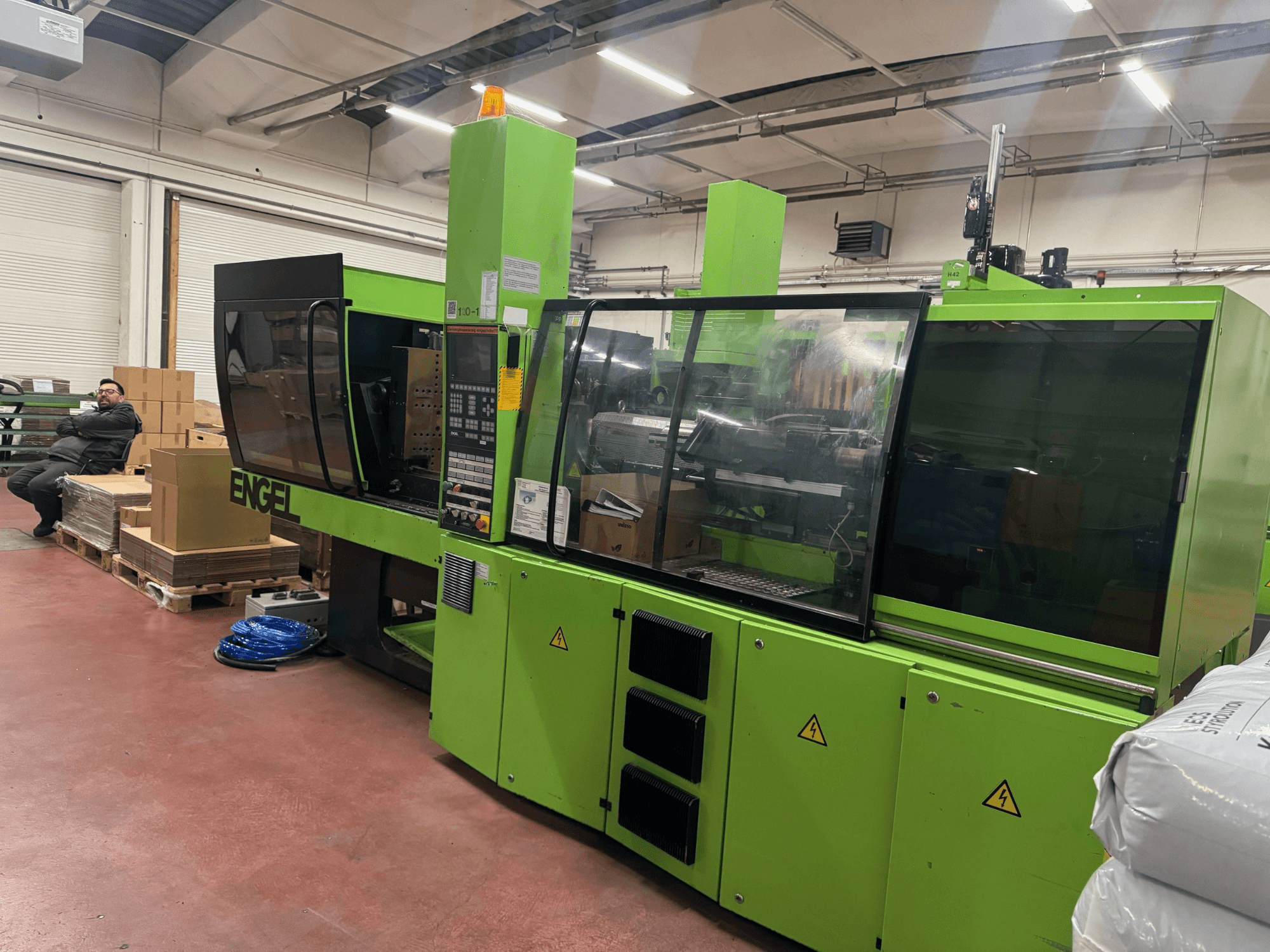

Engel VICTORY 500/120 hydraulic injection moulding machine, front view, green color, with control panel and safety features visible.
Engel VICTORY 500/120 hydraulic injection moulding machine, front view, green color, with control panel and safety features visible.

Engel - VICTORY 500/120CH-INJ-ENG-2002-00001

16,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Hydraulic injection moulding machine manufactured in 2002. This Engel VICTORY 500/120 features a robust design with a weight of 7400 kg. It includes an integrated keypad and screen for user-friendly control. If you are looking to get high-quality injection moulding capabilities, consider the Engel VICTORY 500/120 machine we have for sale. Contact us for further details.

Overview

  • brand: Engel
  • year: 2002
  • MODEL: VICTORY 500/120
  • application type: Injection Moulding
  • Location: Switzerland
  • machine type: Hydraulic Injection Moulding Machine
  • control unit brand:

Technical Information - Engel VICTORY 500/120

Dimensions

  • Machine Height: 2048 mm
  • Machine Length: 4860 mm
  • Machine Weight: 7400 kg
  • Machine Width: 1480 mm

Technical Specification

  • Clamping Force: 500 kN
  • Screw Diameter: 40 mm

Additional Information

  • Screw Diameter: 40 mm (Selected option)

  • Screw Length (L/D): 20

  • Plasticizing Capacity (Standard): 32 g/sec

  • Plasticizing Capacity (Barrier): 44 g/sec

  • Dosing Stroke: 200 mm

  • Screw Speed: 20-400 r/min

  • Injection Rate: 198 cm³/sec

  • Max. Stroke Volume: 251 cm³

  • Spec. Injection Pressure: 1300 bar

  • Spec. Injection Pressure (Increased): 2050 bar

  • Nozzle Stroke: 300 mm

  • Nozzle Contact Force: 50 kN

  • Heating Power: 9.2 kW

  • Number of Heating Zones: 4 (including nozzle)

  • Clamping Force: 500 kN

  • Opening Stroke: 500 mm

  • Ejector Force: 40 kN

  • Ejector Stroke: 130 mm

  • Mold Height Min.: 300 mm

  • Max. Platen Distance: 800 mm

  • Mold Mounting Platens Size: 740 x 470 mm

  • Enlarged Mounting Platens: 740 x 680 mm

  • Ejection Width: 500 mm

  • Dry Cycle (Euromap 6): 1.6 sec - 200 mm

  • Pump Drive Power: 18.5 kW

  • Oil Capacity: 300 l

  • Net Weight (without oil): 7400 kg

  • Dimensions (LxWxH): 4.86 x 1.48 x 2.048 m

  • Control interface: Integrated keypad and screen (Engel branding)

  • Power switch: Manual rotary main switch (labeled "Do not actuate under load")


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
