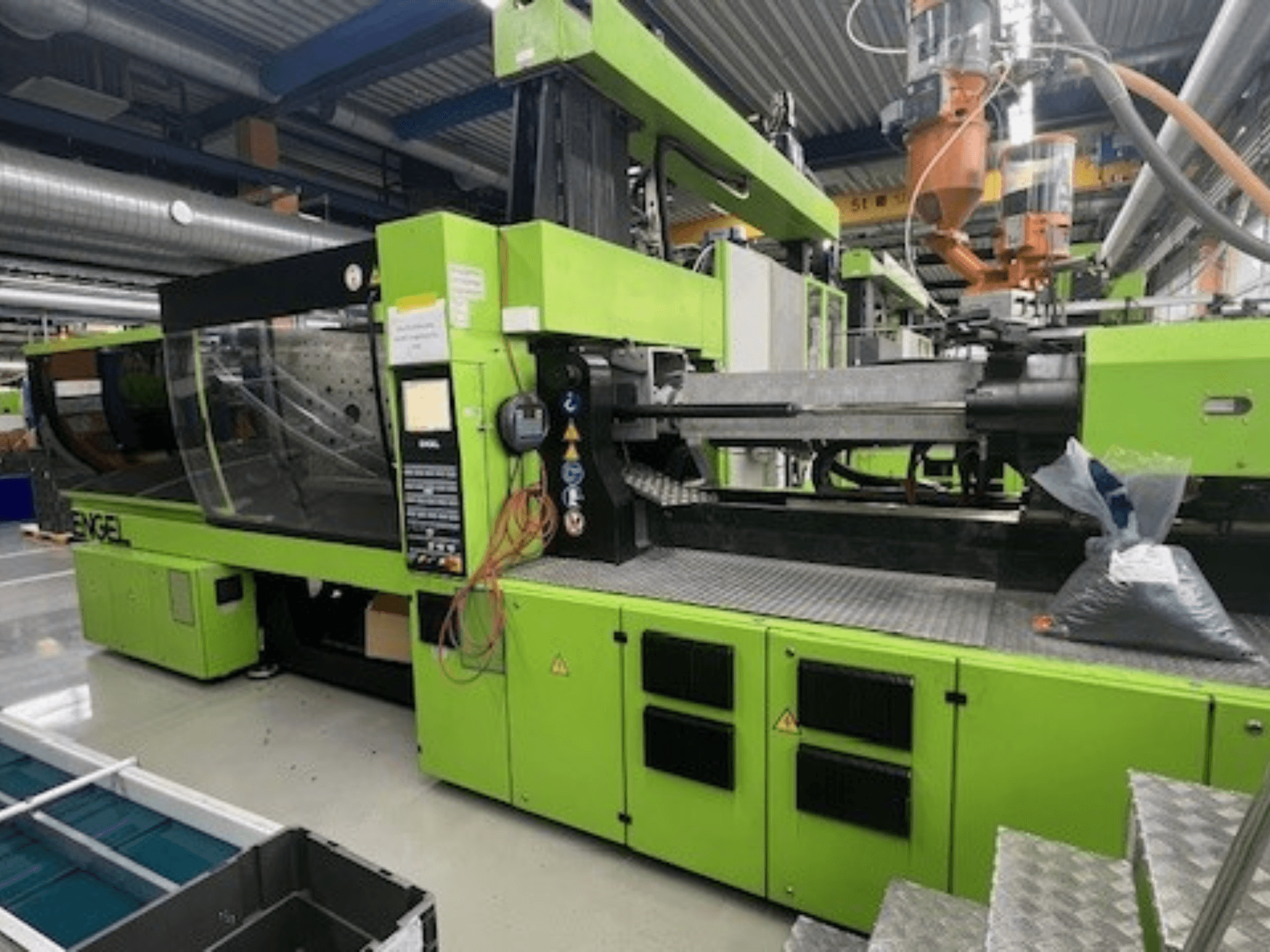

Engel - Victory VC1800/300 PAT-INJ-ENG-2007-00001

• Power supply: 3 x 400 V + N + PE / 50 Hz

• Control system: ENGEL CC200 A02 (15" TFT touchscreen)

• Opening stroke: 900 mm

• Maximum platen distance: 1,500 mm

• Minimum mould installation height: 600 mm

• Ejector stroke: 200 mm

• Ejector force: 90 kN

• Pump drive power: 37 kW

• Injection unit version: M3

• Available screw diameters: 60 / 70 / 80 mm

• Screw diameter installed: 70 mm

• Maximum swept volume (70 mm): 1,039 cm³

• Maximum screw speed: 226 rpm

• Injection rate (70 mm): 385 cm³/s

• Specific injection pressure (70 mm): 1,442 bar

• Maximum injection pressure (increased): 1,735 bar

• Nozzle stroke: 500 mm

• Nozzle contact force: 110 kN

• Hours: 101,500 h

• Maintenance/Service history:

  • Complete hydraulic hose replacement in 2025

  • Motor and planetary gearbox replacement in 2021

  • High-pressure cylinder replacement in 2020

  • Several cost-intensive main components renewed in recent years

Additional equipment

• Robot: ENGEL ERC 64 (included)

  • Axes travel: X 1,200 mm, Y 1,300 mm, Z 3,600 mm

  • B-axis rotation: -90° to +270°

  • Vacuum circuits: 4

  • Pneumatic circuits: 8

• Reject/quality conveyor belt

• Box transfer for 600 x 400 x 250 mm boxes

• GWK temperature control tower (optional)
