Engel - Victory 500/160 techCZ-INJ-ENG-2013-00001

Name: Engel Victory 500/160 tech
Brand: Engel
SKU: CZ-INJ-ENG-2013-00001
Price: 31000 EUR
Availability: InStock

31,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Engel Victory 500/160 tech For Sale | gindumac.com

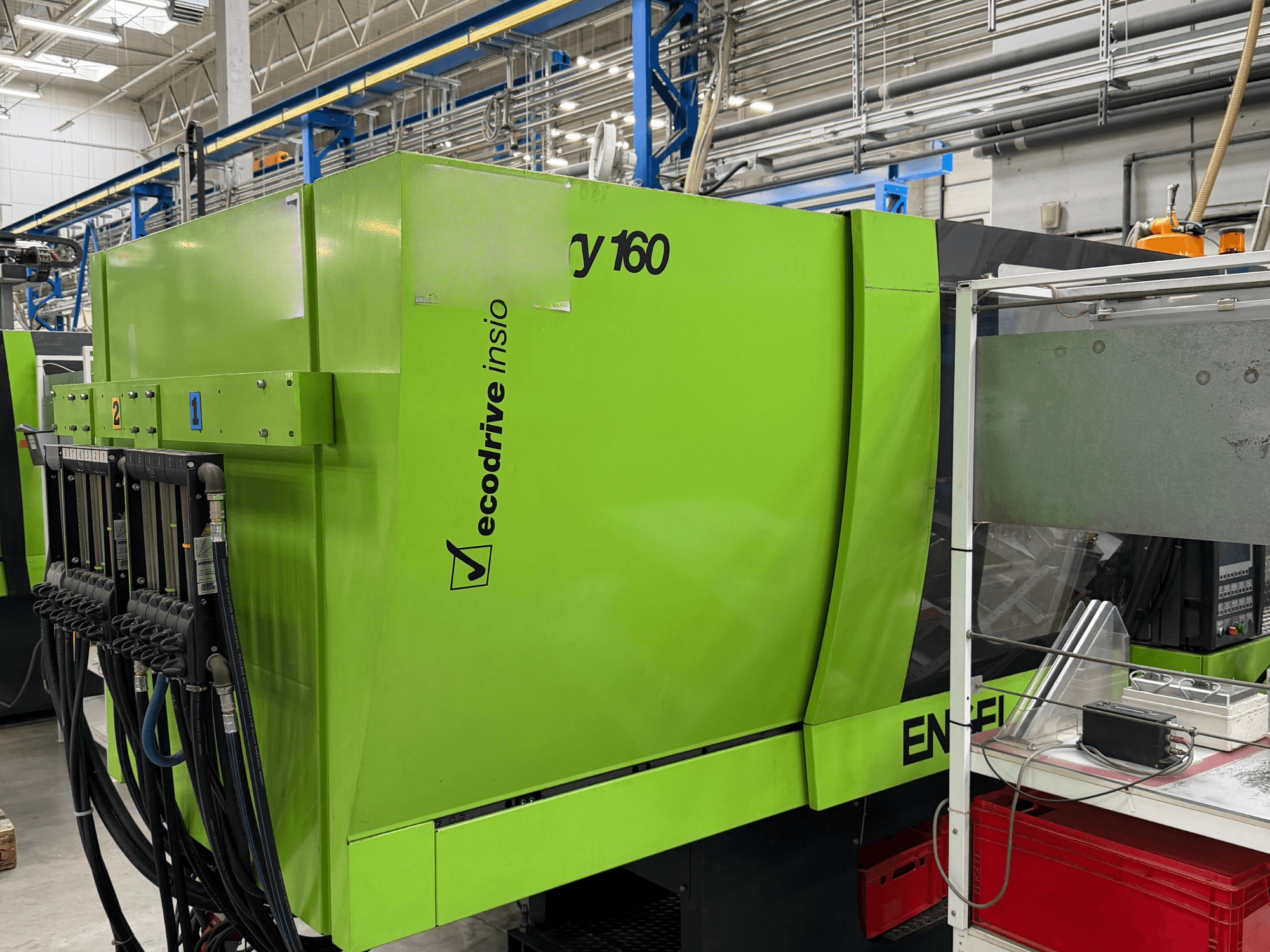

Hydraulic injection moulding machine manufactured in 2013. This Engel Victory 500/160 tech features a clamping force of 1600 kN and an injection unit of 500. It includes a patented tiebarless clamping system and a highly abrasion-resistant cylinder. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 500/160 tech machine we have for sale. Contact us for further details.

Overview

brand: Engel
year: 2013
MODEL: Victory 500/160 tech
production hours: 65265
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
control unit brand: ENGEL

Technical Information - Engel Victory 500/160 tech

Control Unit

Control Brand: ENGEL
Control Model: CC200

Dimensions

Machine Weight: 8700 kg

Technical Specification

Clamping Force: 1600 kN
Screw Diameter: 35 mm

Additional Information

Injection unit: 500
L/D ratio: 20
Hydraulics: ECODRIVE SHV1 (high-dynamic servo pump)
Electrical connection: 3 x 400 V + N + PE, 50 Hz
Nominal connected load: approx. 102 kW
Clamping system: Patented tiebarless, fully hydraulic ENGEL clamping system
Centering: 160 mm
Ejector: Central ejector
Hydraulic core pulls: 2 on moving platen
Pneumatic mold valve control: 2-fold FESTO, up to 16 bar
Mold heating: 8 control zones
Cylinder/screw execution: M3 abrasion/corrosion-resistant cylinder (up to 350 °C), hardened screw S8 (Ø 35 mm, L/D 20), non-return valve R9b
Open nozzle: Flange thread M28 x 1.5, radius 15 mm, bore 4 mm
Mold temperature control: Flow regulator 0–10 l/min with 12 circuits (2 x 6 circuits)
Hydraulic tank capacity: Main approx. 330 l; suction approx. 130 l
Interfaces: Coloring device interface; RS-485 for temperature control units; Euromap 67 / AN-146 robot interface; interface for Priamus PDDI 8903D1 and 8903E2
Languages: Czech and German

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
