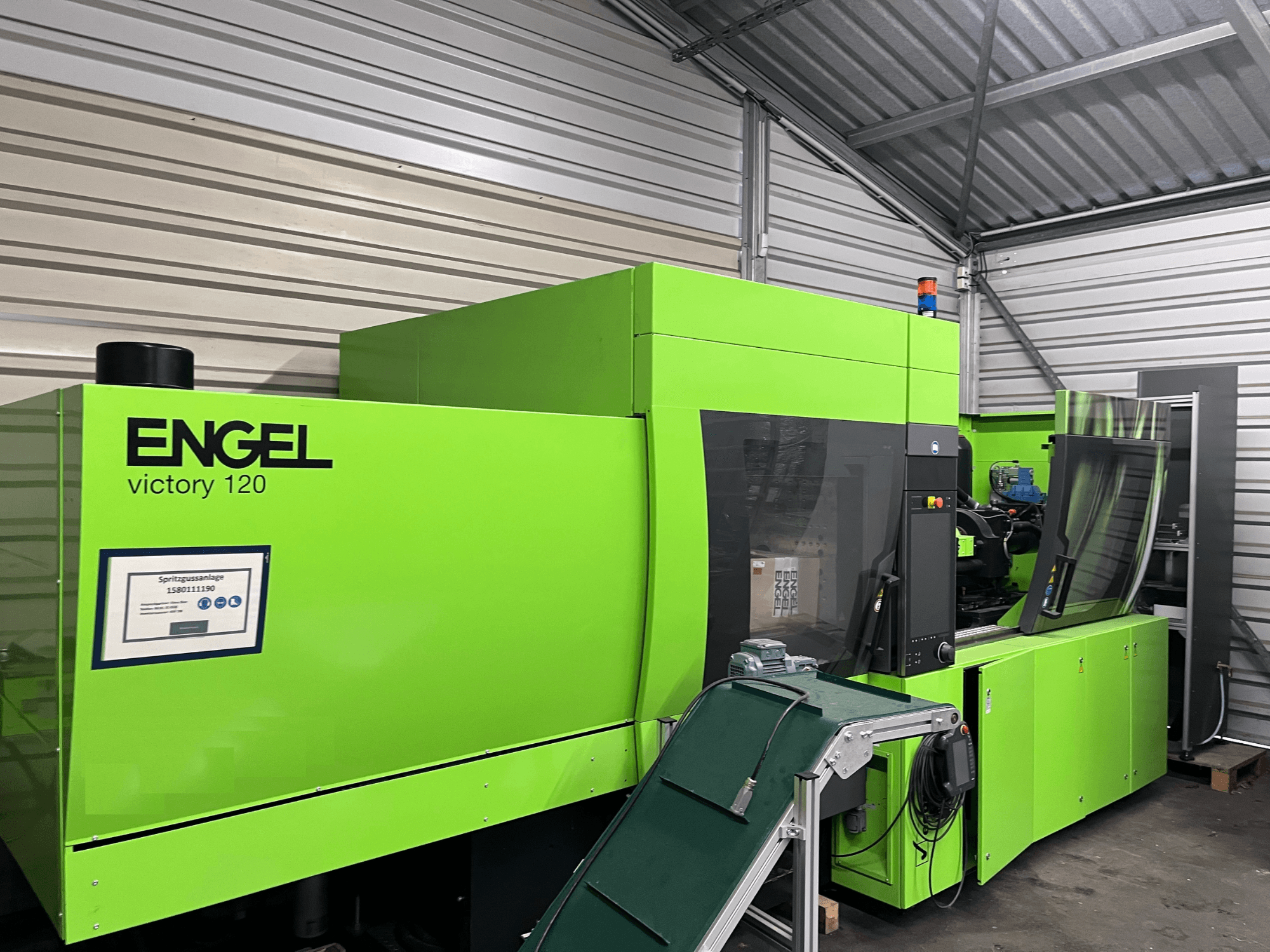

Engel - Victory 120 BMGDE-INJ-ENG-2019-00005

• Tie-bar-less design

• Machine hours: on-time 2,767 h; estimated operating time ~200 h (never used for regular series production)

• Oil filling: 300 L

• Power supply: 3x400 V + N + PE / 50 Hz

• Control system: CC300, 21.5" full HD touchscreen

• Hydraulic system: ecodrive SHV3-HSI servo-hydraulic

• High-speed injection with accumulator

• Oil cooler: standard

• Injection unit size: hydraulic 200

• Platen size: standard Euromap

• Mould height: increased +200 mm

• Opening stroke: extended +200 mm

• Ejector system: platen ejector

• Core pull: hydraulic and pneumatic

• Cooling water connections: machine and mould separate

• Flow regulator: 0–10 l/min

• e-flomo temperature control system: 4 and 6 circuits

• Remote service: e-connect.24 (2 years)

Additional equipment

• Robot: ENGEL viper 12 RC300

  • Max payload: 12 kg

  • Strokes: Z 1,160 mm; X 600 mm; Y 900 mm

  • C axis: pneumatic 0–90°, 30 Nm

  • Max system height: 3,600 mm

  • Min deposit height: 1,000 mm

• Integrated conveyor belt

  • Belt width: 350 mm

  • Belt temperature resistance: up to 300 °C

• Temperature control unit: HB-Therm Thermo-5 HB-160Z1

  • Max temperature: 160 °C

  • Heating power: 8.0 kW

  • Pump: 0.50 kW, 30 L/min, 52 m

  • Cooling capacity: 30 kW @ 60 K

• Vacuum pump: Pfeiffer DUO 35, 32 m³/h

• Induction heating system: 50 kW, 50–200 kHz

  • Melting chamber: max ingot weight 100 g

No plastic extruder included!
