SUMITOMO SHI DEMAG Ergotech 200-610 NC
SUMITOMO SHI DEMAG - Ergotech 200-610 NC
1995
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- DEMAG ERGOtech 200-610 NC Injection Moulding Machine

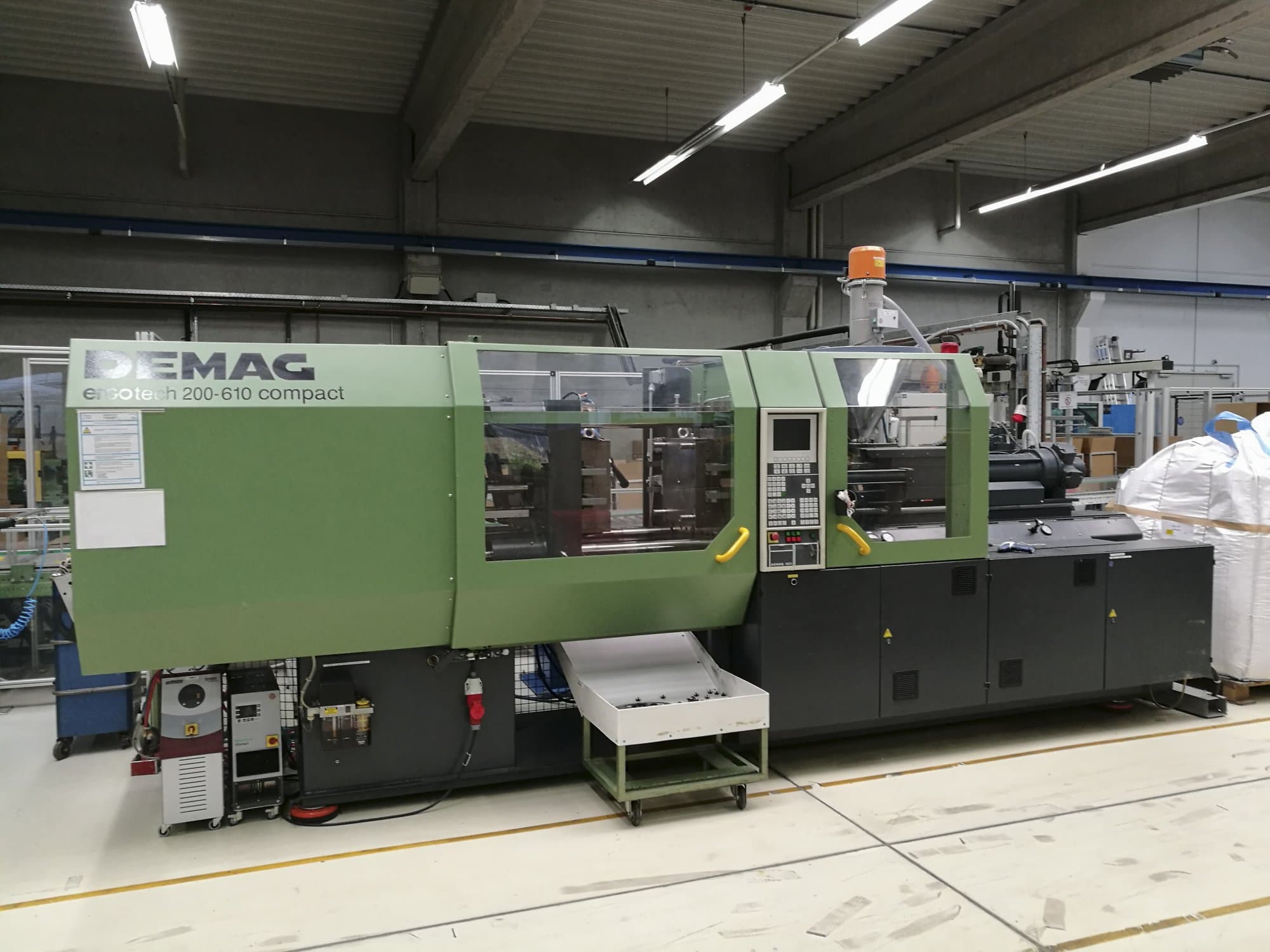

This DEMAG ERGOtech 200-610 NC Injection Moulding Machine was manufactured in Germany in 1995 and has a record of 157544 production hours ever since. This solid machine stands in excellent conditions, as a regular inspection was performed on it. Offering low maintenance costs, in the past this equipment has handled mostly polypropylene.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 1995
- MODEL: Ergotech 200-610 NC
- production hours: 157544
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: DEMAG
- GINDUMAC ID: DE-INJ-DEM-1995-00001
Technical Information
General Data
- Measurements width: 5715 mm
- Measurements depth: 1730 mm
- Measurements height: 2000 mm
- Machine weight: 9400 kg
- Automatic cycles: 11022769
- Type of drive: Hydraulic
- Closure: Mechanic
Control Unit
- Brand: DEMAG
- Model: NC4
Injection Unit
- Screw diameter: 40 mm
- Shot weight: 230 g/PS
- Stroke volume: 255 cm³
- Injection pressure: 2418 bar
- Heating capacity: 42927 kW
- Nozzle pressure: 80 kN
Clamping unit
- Clamping force: 200 kN
- Opening stroke: 575 mm
- Max open daylight: 660 mm
- Distance between bars: 560 mm
- Size of mold platens: 830 x 830 mm
Media
- Main electronic connection: 400 V / 50 Hz / 3 P
- Power consumption: 49 kVA
- Oil tank: 650 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
