Takamaz XW 50

Photo Gallery

Takamaz - XW 50IT-TUR-TAK-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

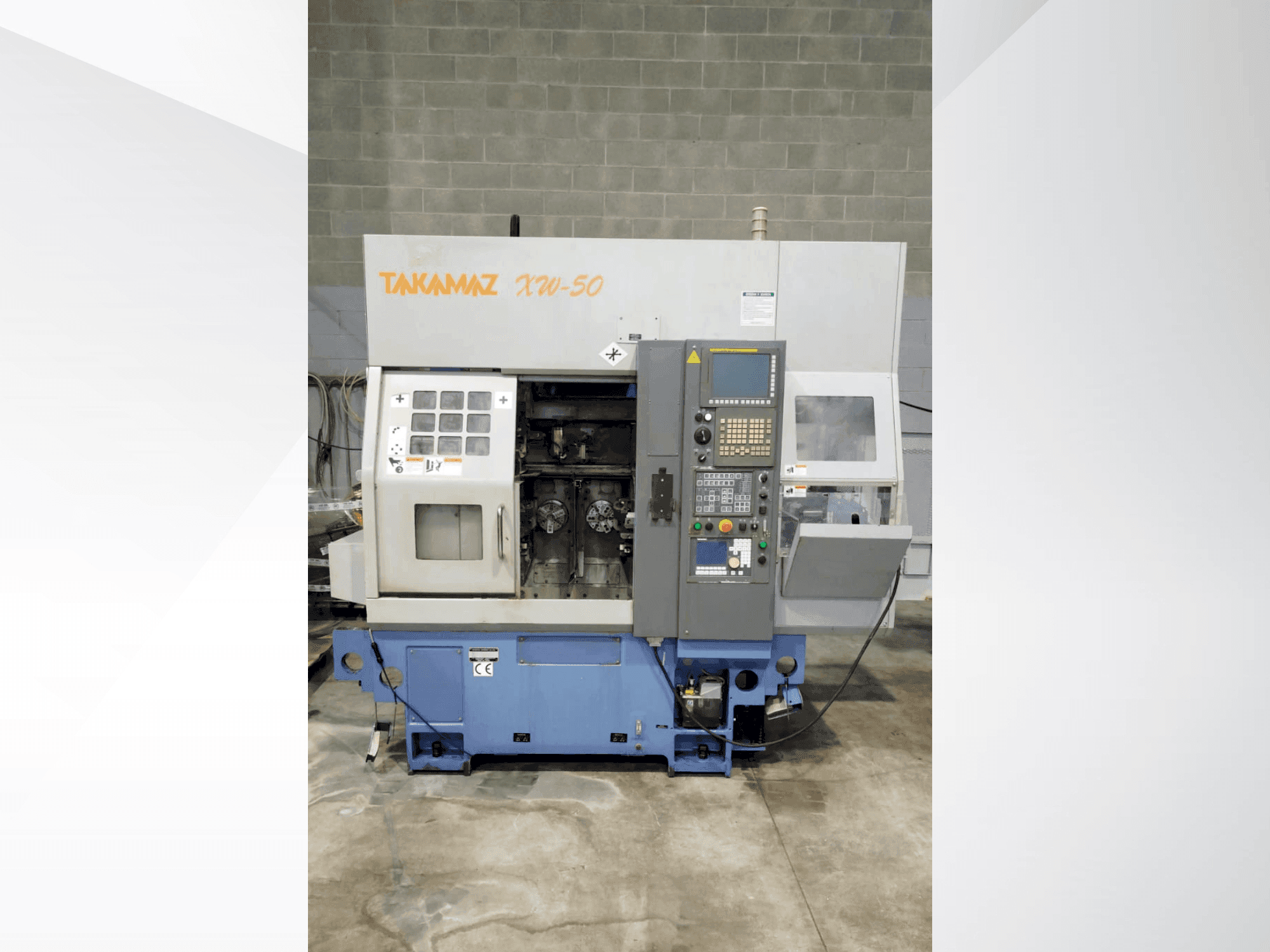

TAKAMAZ XW 50 (2006) Lathe

This TAKAMAZ XW 50 Lathe was manufactured in the year 2006 in Japan. It is equipped with a FANUC Series 32i-A Control unit. It has 2x hydraulic tanks and a coolant tank litted. The machine dispose of 2x 6-station turrets. See technical specs PDF (EN) attached below.

Overview

brand: Takamaz
year: 2006
MODEL: XW 50
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Takamaz XW 50

General Data

Measurements width: 2030 MM
Measurements depth: 1685 MM
Measurements height: 2200 MM
Machine weight: 4000 KG

Controller

Brand: TAKAMAZ & FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: AC 5.5/3.7 kW
Number of axis: 2

Movement

X-AXIS Rapid traverse: 18 m/min
Z-AXIS Rapid traverse: 18 m/min

Turret

Number of turrets: 2
Number of tool slots: 6

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Optimum turning diameter φ30 × 50
- - Max. Swing over bed φ220mm
- - Max. Turning diameter φ150mm
- - Max. Turning length 100mm
- - Spindle nose jis // spindle bearing id mmφ65 // hole through spindle mm φ37
- - Max. Tool size mm20 sq. , φ25
- - Max. Stroke on axis mm x: 100, z: 150
- - Feed motor kw x: ac1. 0, z: ac1. 6
- - Hydraulic tank lit. 12 (× 2)
- - Coolant tank lit. 154

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
