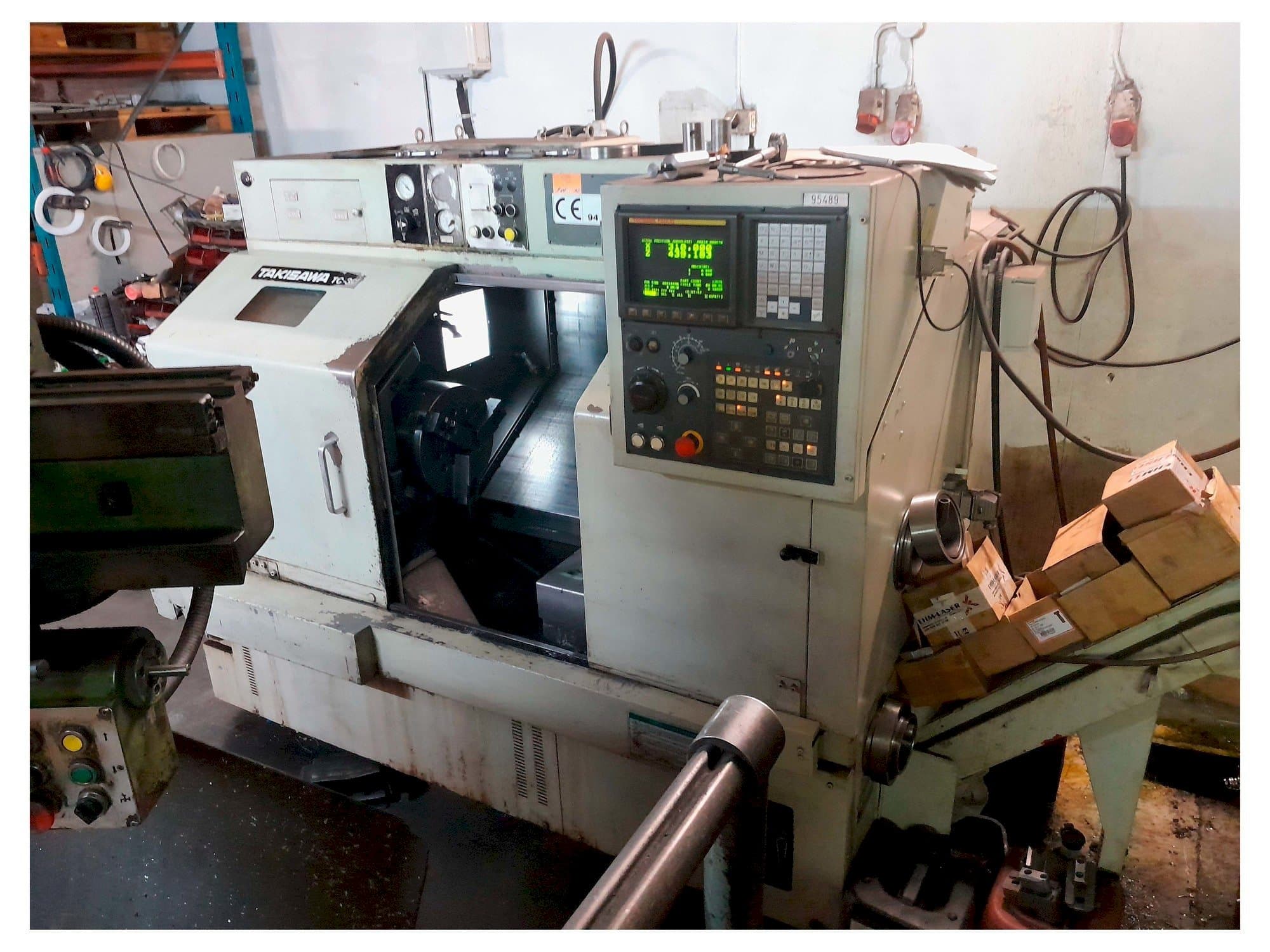

Takisawa TC-30 Lathe

This Takisawa TC-30 Lathe was manufactured in the year 1994. It is equipped with a Takisawa Fanuc control unit. The machine has a spindle speed of 3000 rpm.

Overview

brand: Takisawa
year: 1994
MODEL: TC-30
application type: Turning
Location: Finland
machine type: Horizontal Turning Machine

Technical Information - Takisawa TC-30

General Data

Measurements width: 2000 mm
Measurements depth: 1605 mm
Measurements height: 1705 mm
Machine weight: 3200 kg

Control Unit

Model: Fanuc

Main drive

Number of spindles: 2
Spindle speed range: 3000 1/MIN
Tool taper: JIS A2-8

Additional Information

Machine Benefits

Technical Machine Benefits

Spindle taper: 90 mm
Spindle bearing diameter: 120 mm
Spindle hole diameter: 86 mm
8 station turret
Shank diamter of boring 50 mm
Standard turning diameter: 275 mm
Maximum swing: 540 mm
Maximum turning diameter: 330 mm
Tailstock spindle travel: 120 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
