➤ Used Takisawa TS-35 For Sale | gindumac.com

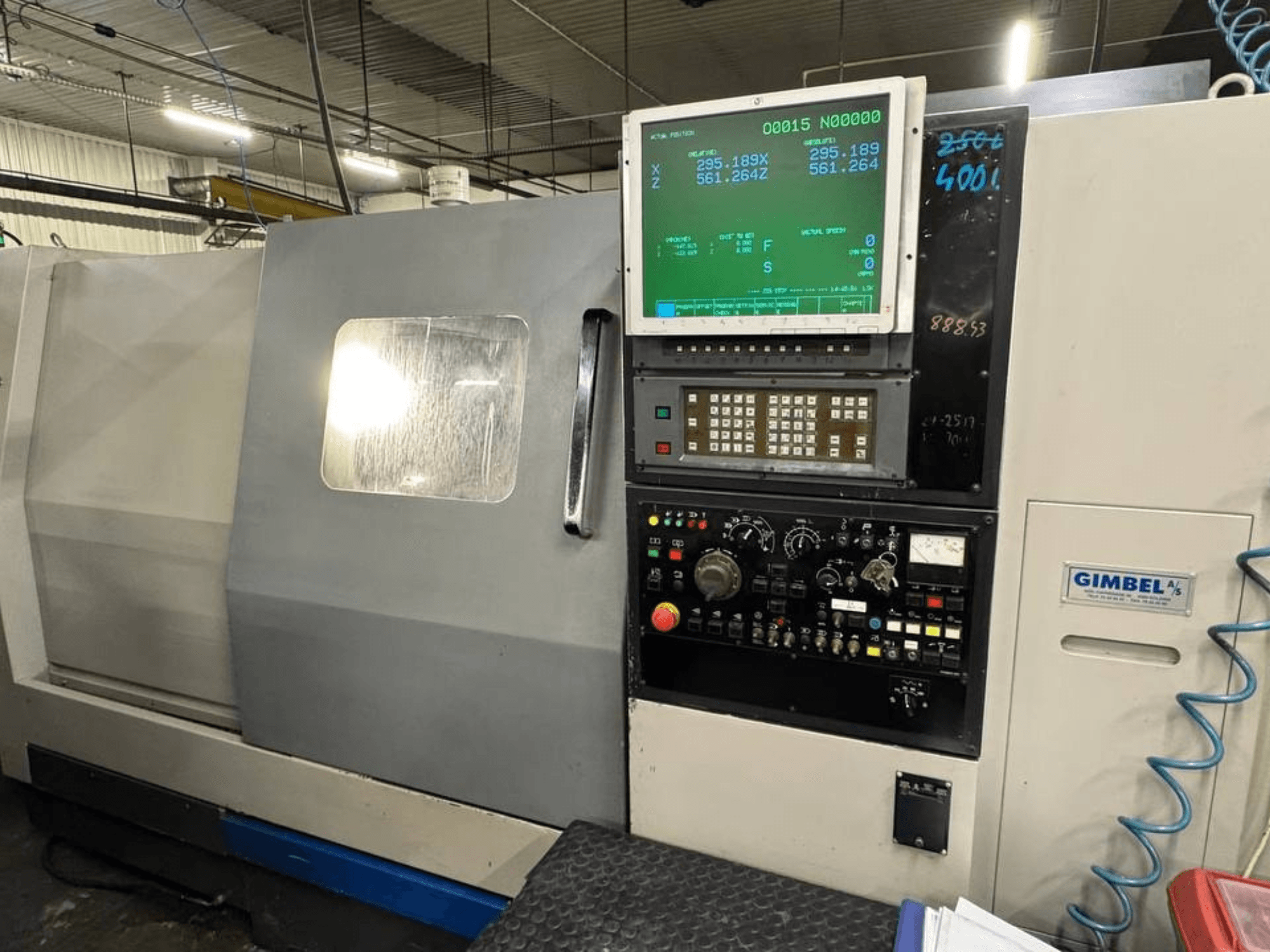

Horizontal CNC lathe with tailstock manufactured in 2004. This Takisawa TS-35 features a maximum turning diameter of approximately 400 mm and a turning length of 1000 mm. It is equipped with a powerful 26.1 kW main spindle motor and a chuck size of 304 mm. If you are looking to get high-quality turning capabilities, consider the Takisawa TS-35 machine we have for sale. Contact us for further details.

Overview

brand: Takisawa
year: 2004
MODEL: TS-35
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takisawa TS-35

Control Unit

Control Brand: FANUC
Control Model: 18-TA

Dimensions

Machine Height: 2083 mm
Machine Length: 4191 mm
Machine Weight: 8800 kg
Machine Width: 1971 mm

Movement

Number of Axes: 2
X-axis Travel: 180 mm
Z-axis Travel: 1000 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 26.1 kW
Spindle Speed: 2500 RPM

Additional Information

Distance between centers: 1000 mm
Swing over bed: approx. 400 mm
Maximum turning diameter: approx. 350–400 mm
Maximum turning length: 1000 mm
Spindle:
- Chuck size: 304 mm
- Spindle bore / bar capacity: approx. 104 mm

Turret/tooling:
- Number of stations: 10
- Boring bar capacity: approx. 40–50 mm
Tailstock: Manual quill for long shaft support

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
