CMZ - TBI-520 PL-TUR-CMZ-2005-00001

Name: CMZ TBI-520
Brand: CMZ
SKU: PL-TUR-CMZ-2005-00001
Price: 30000 EUR
Availability: InStock

30,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CMZ TBI-520 For Sale | gindumac.com

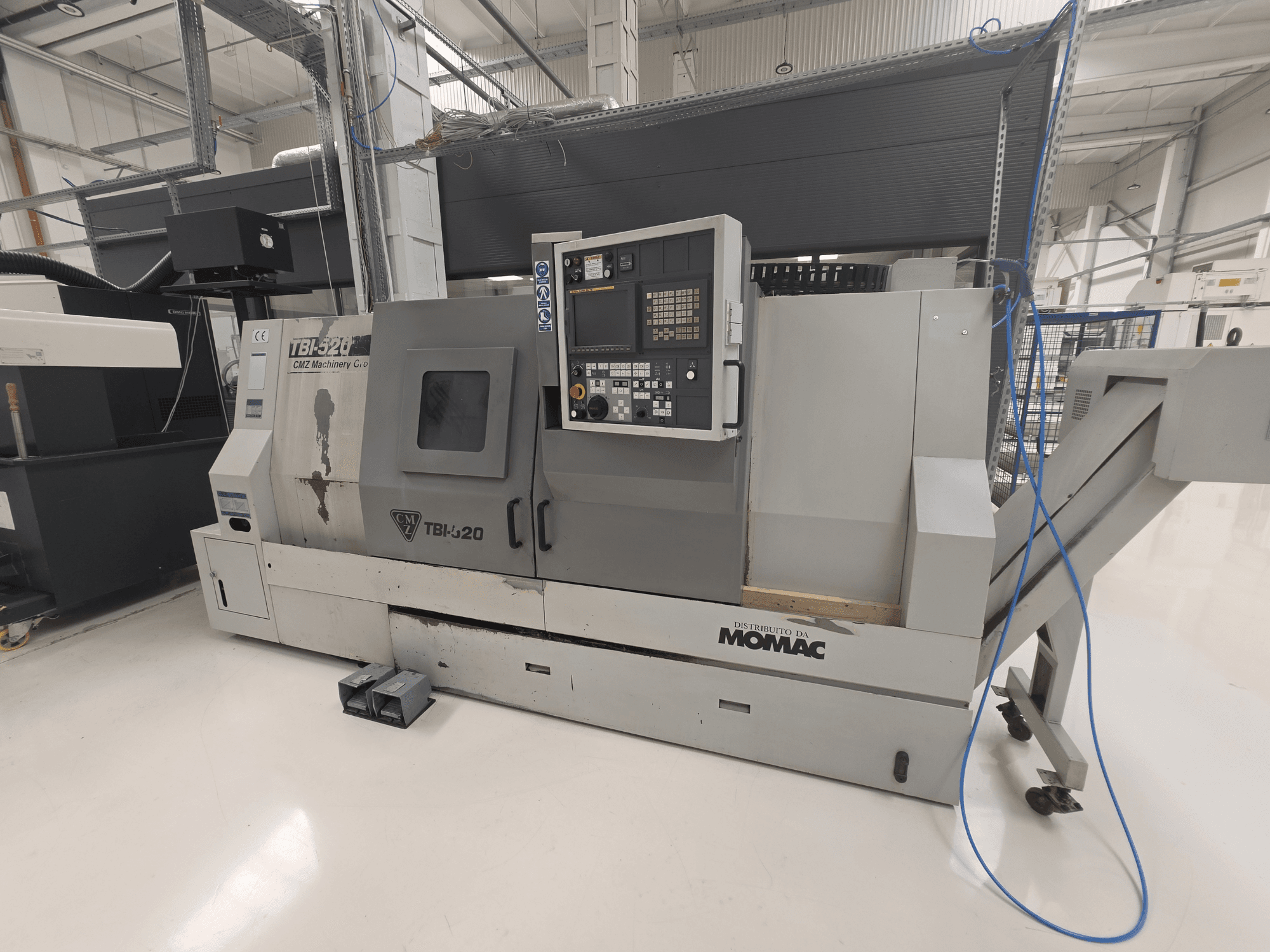

CNC Slant-Bed Turning Center manufactured in 2005. This CMZ TBI-520 features a maximum swing over bed of 520 mm and a maximum turning length of approximately 1,100 mm. It is equipped with a 12-station turret and a hydraulic 3-jaw chuck with a diameter of 315 mm. If you are looking to get high-quality turning capabilities, consider the CMZ TBI-520 machine we have for sale. Contact us for further details.

Overview

brand: CMZ
year: 2005
MODEL: TBI-520
production hours: 40135
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - CMZ TBI-520

Control Unit

Control Brand: FANUC
Control Model: Series 21i-TB

Dimensions

Machine Height: 1950 mm
Machine Length: 3700 mm
Machine Weight: 5500 kg
Machine Width: 1550 mm

Movement

Number of Axes: 2
X-axis Travel: 296 mm
Z-axis Travel: 1090 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 3000 RPM

Additional Information

Electrical supply: 380 V / 50 Hz / 62 A
CE compliant
Working capacity:
- Max swing over bed: 520 mm
- Max swing over cross slide: 420 mm
- Max turning length: approx. 1,100 mm
- Distance between centers: 1,100 mm
Rapid traverse:
- X-axis: 18 m/min
- Z-axis: 18 m/min
Spindle:
- Spindle bore: approx. 82 mm
- Bar capacity: approx. 77 mm
Turret:
- 12-station turret
- Fixed tool holders only
- No C-axis
Tailstock: hydraulic
Operating hours: approx. 40,135 h
Machine powered and available for inspection
Condition: well maintained

Additional equipment

Hydraulic 315 mm 3-jaw chuck (SMW‑Autoblok)
Chip conveyor
Automatic lubrication system
Coolant system
Work light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
