Takisawa TCY-160YS L3

Name: Takisawa TCY-160YS L3
Brand: Takisawa
SKU: CZ-TUR-TAK-2016-00002
Price: 46000 EUR
Availability: InStock

Photo Gallery

46,000 €

gindumac price

(Ex works)

Get an official quote

Takisawa - TCY-160YS L3

2016

46,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

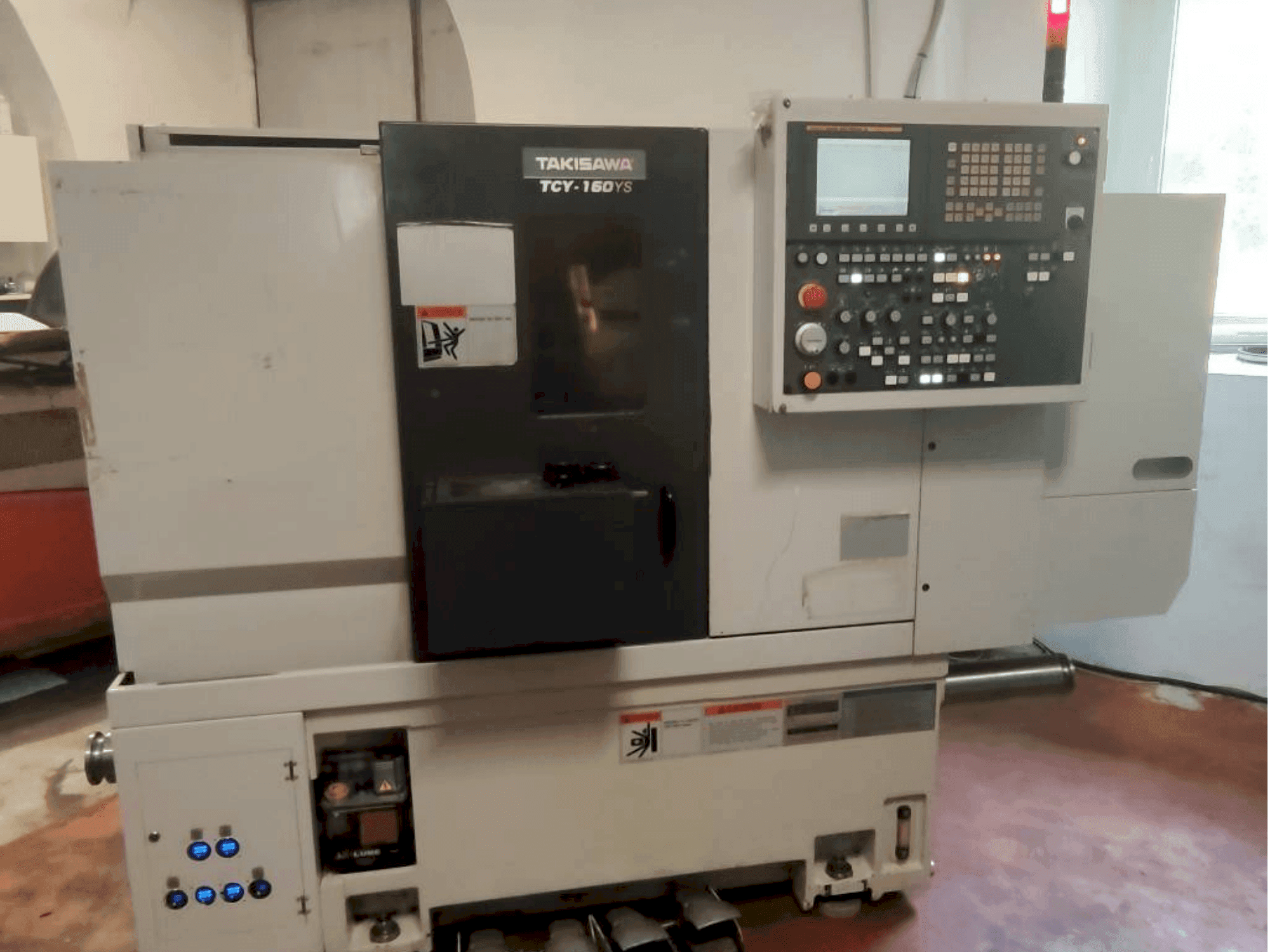

Takisawa TCY-160YS L3 Lathe

This Takisawa TCY-160YS L3 Lathe was manufactured in the year 2016. It is equipped with a FANUC Seris 32i B. The machine has a spindle speed of 6000 rpm. Simultaneous machining with spindle and counter spindle based on bar capacity of 42mm. As an Opposed Twin-Spindle CNC Lathe with a max. turning diameter of 220 mm and max. turning length of 291 mm it provides a solid turning solution for machinists.

Overview

brand: Takisawa
year: 2016
MODEL: TCY-160YS L3
application type: Turning
Location: Czech Republic
machine type: Lathe
availability: Immediately
control unit brand: FANUC
GINDUMAC ID: CZ-TUR-TAK-2016-00002

Technical Information

General Data

Measurements width: 2400 MM
Measurements depth: 1695 MM
Measurements height: 1700 MM
Machine weight: 3500 kg

Control Unit

Brand: FANUC
Model: Series 32i B

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/min

Movement

X-AXIS Movement: 185 MM
Y-AXIS Movement: +/- 30 MM
Z-AXIS Movement: 330 MM

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar capacity 42 mm
- - Max. Swing 340 mm
- - Max. Turning diameter 220 mm
- - Max. Turning length 291 mm
- - Main spindle power 5. 5/3. 7kw
- - Sub-spindle speed 6000 rpm, power 3. 7/2. 2 kw
- - 3. 7/2. 2/1. 5kw milling motor; 6,000 rpm milling speed
- - Air blow and coolant through spindle
- - Workpiece ejector / spring type
- - Incl. Tool holders
Qualitative Machine Benefits:
- - Good condition

Extra information

- Machine manual available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

TAKISAWA TCY-series (EN).pdf
