- Takisawa TS-20 Lathe

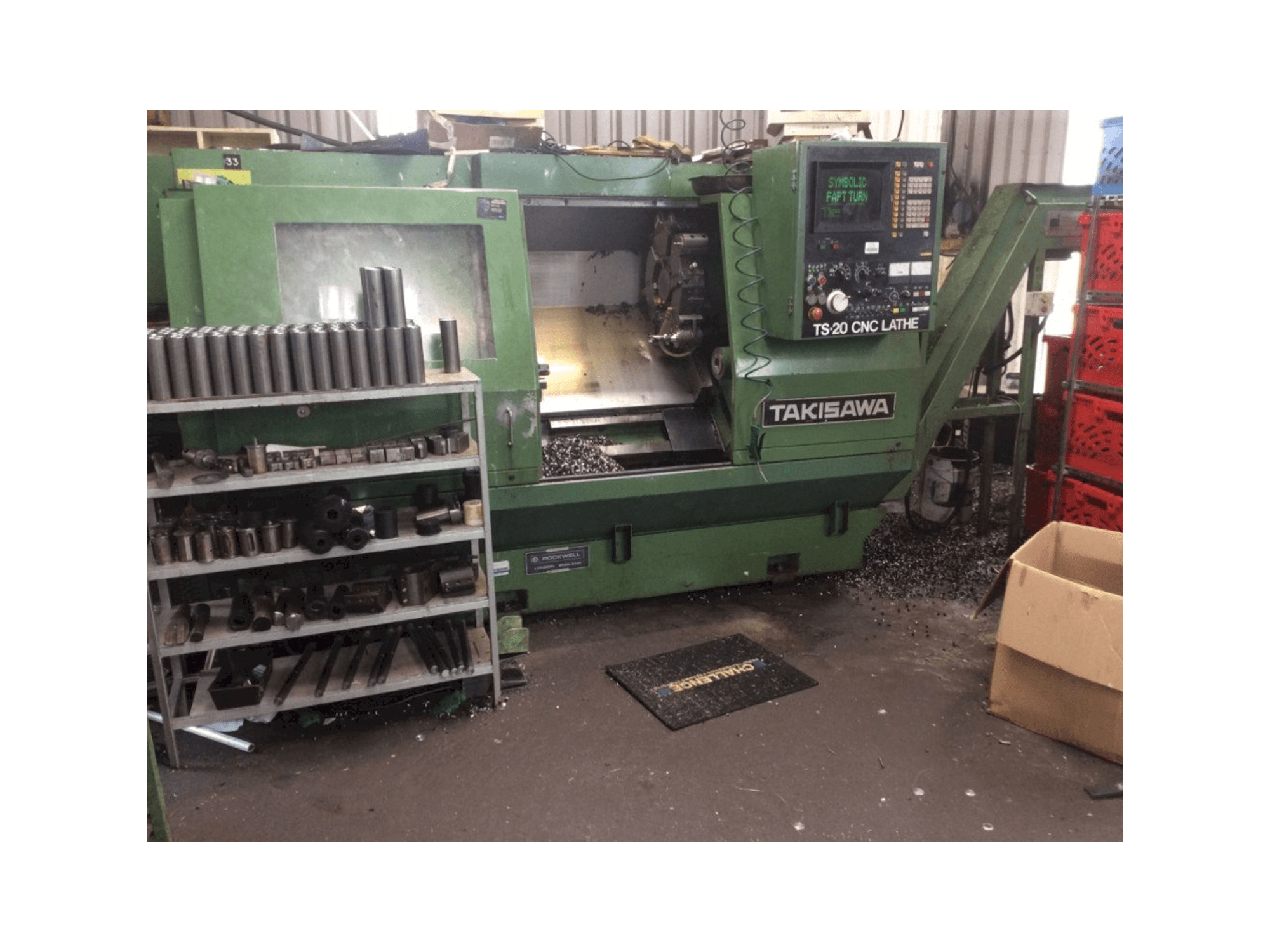

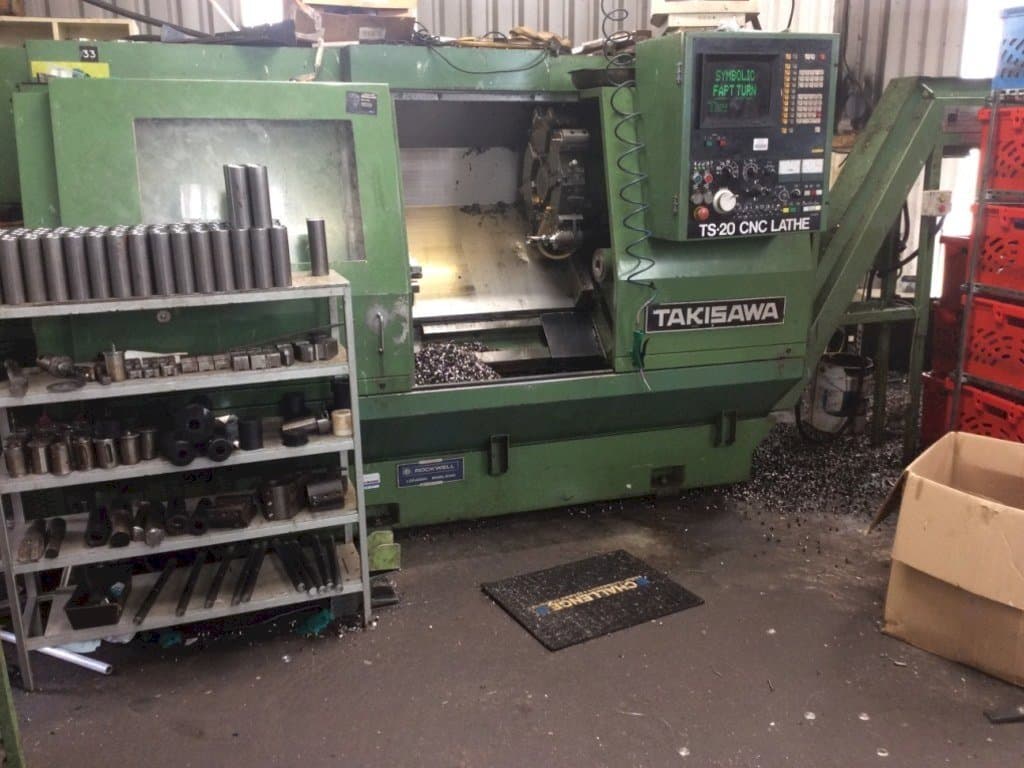

This Takisawa TS-20 Lathe was built in Japan in the year 1983. It is operated through a Fanuc 10T control unit. This machine can work with a spindle speed up to 3000 rpm. It includes a chip conveyor, a tailstock, and a mayfran swarf conveyor.
Overview
- brand: Takisawa
- year: 1983
- MODEL: TS-20
- application type: Turning
- Location: Ireland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Takisawa TS-20
General Data
- Measurements width: 3500 mm
- Measurements depth: 1850 mm
- Measurements height: 1800 mm
- Machine weight: 5400 kg
Control Unit
- Model: 10T
- CNC main language: English
- Brand: FANUC
Main drive
- Number of spindles: 1
- Spindle speed range: 3000 1/MIN
Movement
- X-AXIS Movement: 570 mm
- Z-AXIS Movement: 160 mm
Workpiece
- Workpiece drm: 370 mm
- Workpiece x: 750 mm
Turret
- Number of turrets: 1
Tools
- Slots in storage: 12
- Type of tool holder: Static
Media
- Main electronic connection: 380 V
- Power consumption: 34 kVA
- Chip conveyor: Yes
Additional Equipment
- - Tailstock
- - Mayfran swarf conveyor
Additional Information
- Material type: Mild steel
- End product: Sun contract parts
- Technical Machine Benefits:
- - Powerful machine
- Qualitative Machine Benefits:
- - Well maintained machine
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
