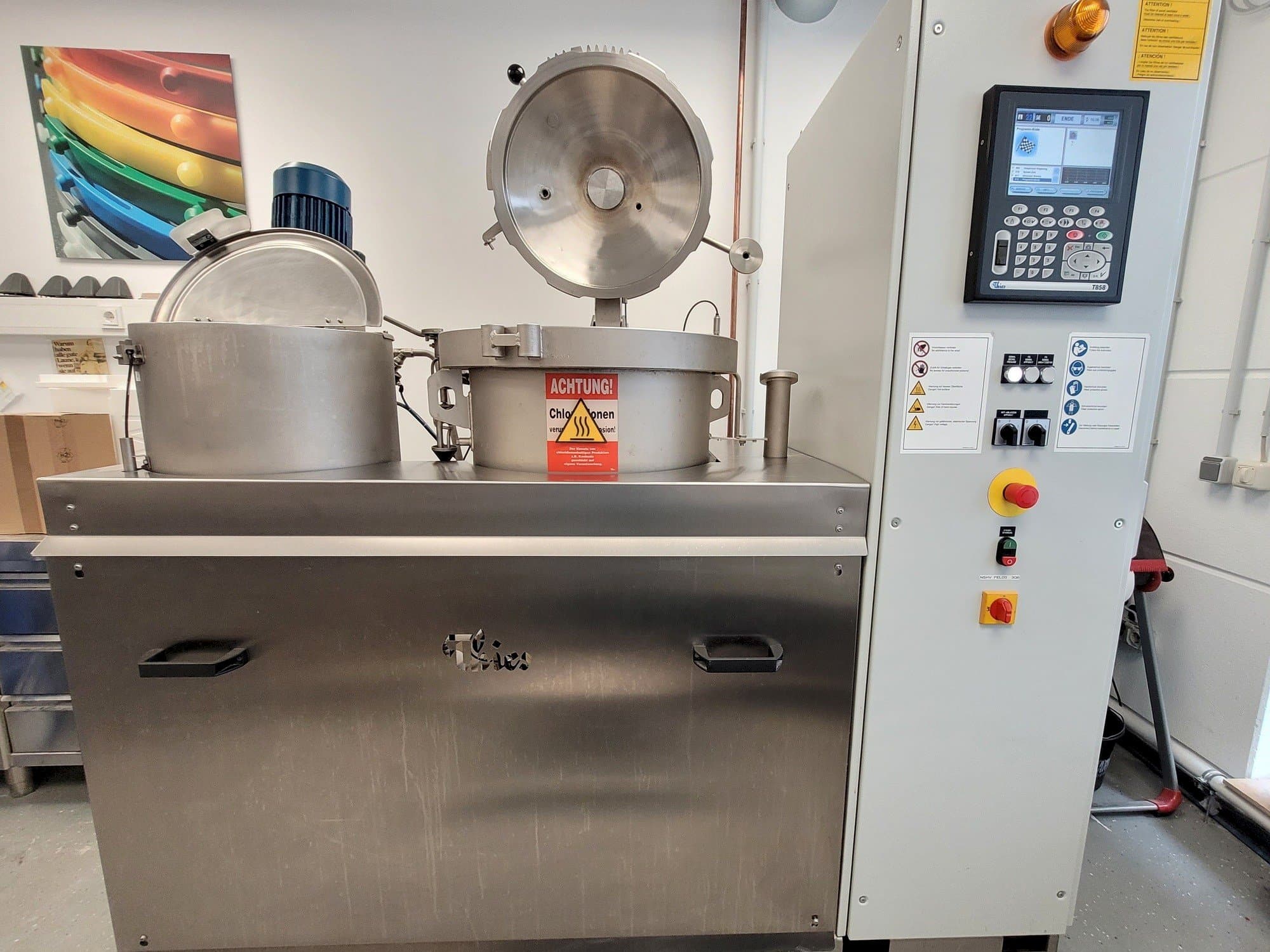

Thies - eCOLOR Type 1/550/1DE-3DP-THI-2020-00001

Additional Equipment

• - Incl. 3 pieces perforated Loading baskets
• - Details see data sheet in the appendix.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Loading height: 1250 mm
  • - Perforation of the perforated baskets: 4 mm
  • - Manual ph measurement by liquor reversal from the vessel to the preparation vessel
  • - Dye vessel diameter: 550 mm, analog level on dye vessel, water inlet, pneumatic compartment / control block
  • - Operating temperature: up to 140°c, 2 drain valves
  • - All liquor-carrying parts made of stainless steel (1. 4571/1. 4404/1. 4362), forged parts made of 1. 4401, cast parts made of 1. 4408.
  • - Closed dye vessel with quick-release lock, cooling valve with open/close control valve, piston control valve, stainless steel cooling water outlet
  • - Holder and locking device for the material carrier
  • - Compressed air inlet / outlet, heat exchanger, circulation pump including motor
  • - Boiler pressure monitoring, overpressure protection, reverse control for alternating liquor circulation (inside/outside - outside/inside),
• Qualitative Machine Benefits:
  • - Machine is currently ready for operation and can be inspected if required.
  • - Flushing valve, standard spare parts package (wear parts), 100% preparation vessel with agitator, control cabinet with heavy current power unit
  • - Frequency converter for pump motor, 1 packing cylinder type 350 for 3d printer models, 500 mm packing diameter, 400 mm packing height, flexible loading system for small, medium or large batch sizes.
  • - Acceptance ( dgrl )
  • - Version with electrical heating for the dye vessel and the preparation vessel
  • - Separate cartridge heat exchanger

Payment Terms

• Payment in advance

• Asset Financing
