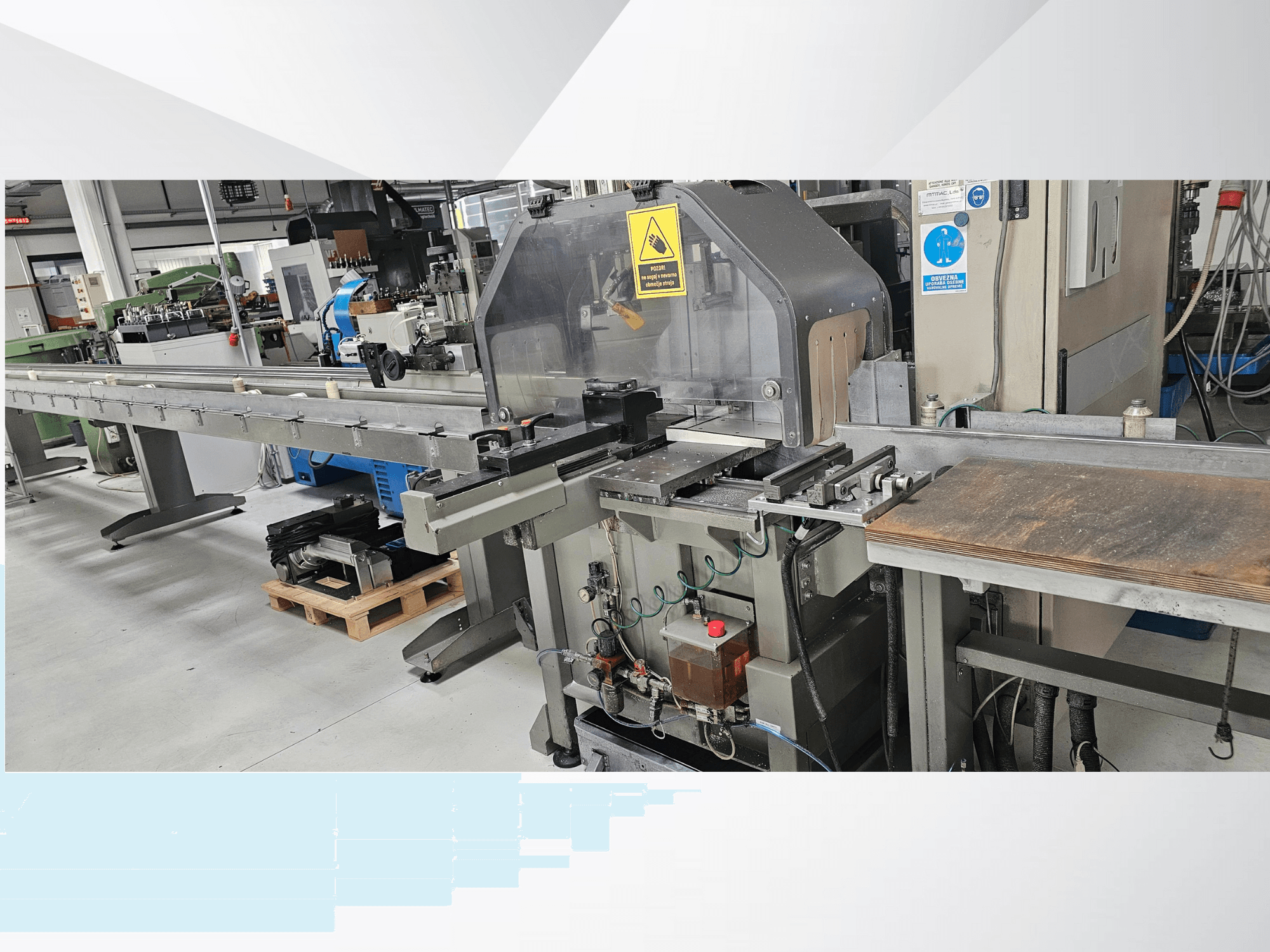

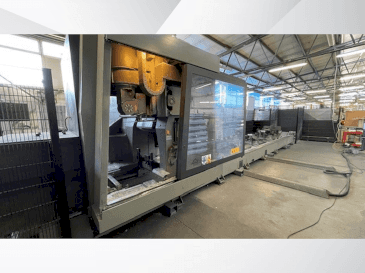

This Emmegi VEGAMATIC was manufactured in 2008. It is an automatic cutting centre for aluminium profiles, featuring a feeder travel of 7395 mm and feed speed up to 60 m/min. The blade rotation angle ranges from -45° to +45°, with a standard blade diameter of 500 mm. Ideal for precise large-scale cutting tasks. Contact us for more information about this machine.
Overview
- brand: Emmegi
- year: 2008
- MODEL: VEGAMATIC
- application type: Other Machine Tools
- Location: Slovenia
- machine type: Machine Tool
Technical Information - Emmegi VEGAMATIC
Dimensions
- Machine Weight: 900 kg
Technical Specification
- Spindle Power: 85 kW
Additional Information
Additional information
Power supply: 400 V / 3-phase / 50 Hz
Blade motor power (50 Hz): 3 kW
Blade motor power (60 Hz): 36 kW
Feeder travel (U axis): 7395 mm
Feed speed (U axis): 0–60 m/min
Acceleration (U axis): 33 m/s²
Positioning accuracy (U axis): ±015 mm
Blade rotation angle (B axis): from -45° to +45° (optional: -225° to +225°)
Rotation speed (B axis): 1833 rpm
Acceleration (B axis): 093 m/s²
Positioning accuracy (B axis): ±1°
Min. cutting length: 7200 mm (with gripper arm L = 937 mm)
Standard blade diameter: 500 mm (optional 550 mm)
Blade rotation speed (50 Hz): 2845 rpm
Blade rotation speed (60 Hz): 3400 rpm
Operating air pressure: 6–8 bar
Air consumption per cycle: 120 l/min
Bar magazine trolley (optional)
Loading/unloading roller conveyors
External safety enclosure
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
