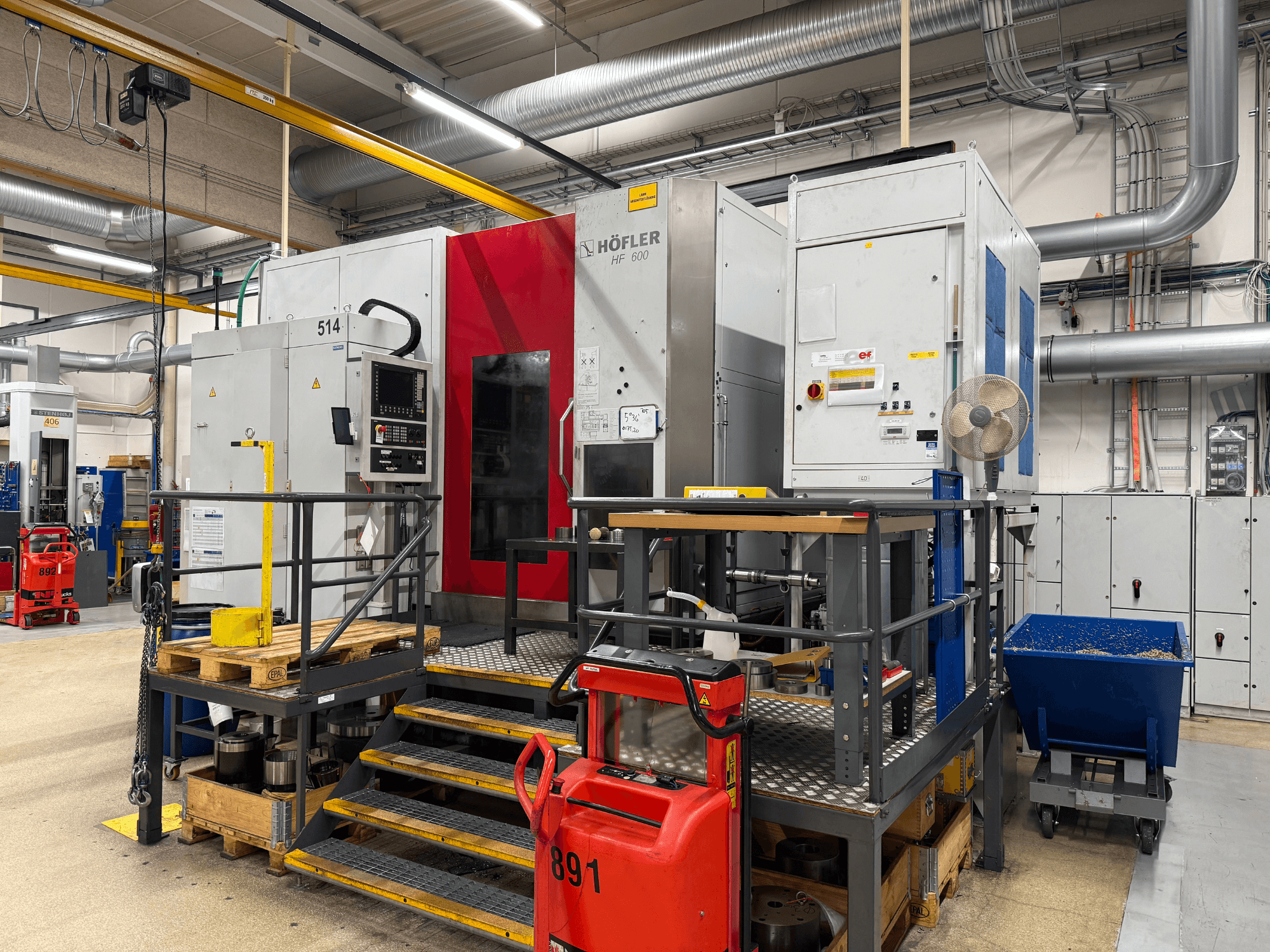

HOFLER - HF 600DK-OTH-HOF-2010-00001

Physical data

• Hobbing spindle speed range: 15–380 1/min

• Workpiece table speed (max): 50 1/min

• Hobbing spindle torque: 3,800 (5,500) Nm

• Feed rates (max):

  • Radial: 2,000 mm/min

  • Vertical: 2,000 mm/min

  • Tangential: 2,000 mm/min

• Table load (with counter support pressure): 3,750 (1,750) kg

Workpiece data

• Max workpiece diameter: 600 mm

• Radial center distance: 40–590 mm

• Max module: 16 (25) mm

Tool data

• Tangential shift path (max): 450 mm

• Hobbing head swivel angle: ±45°

• Max tool diameter: 290 mm

• Max tool length: 470 mm

• Cutter arbor cone: similar HSK B 125
