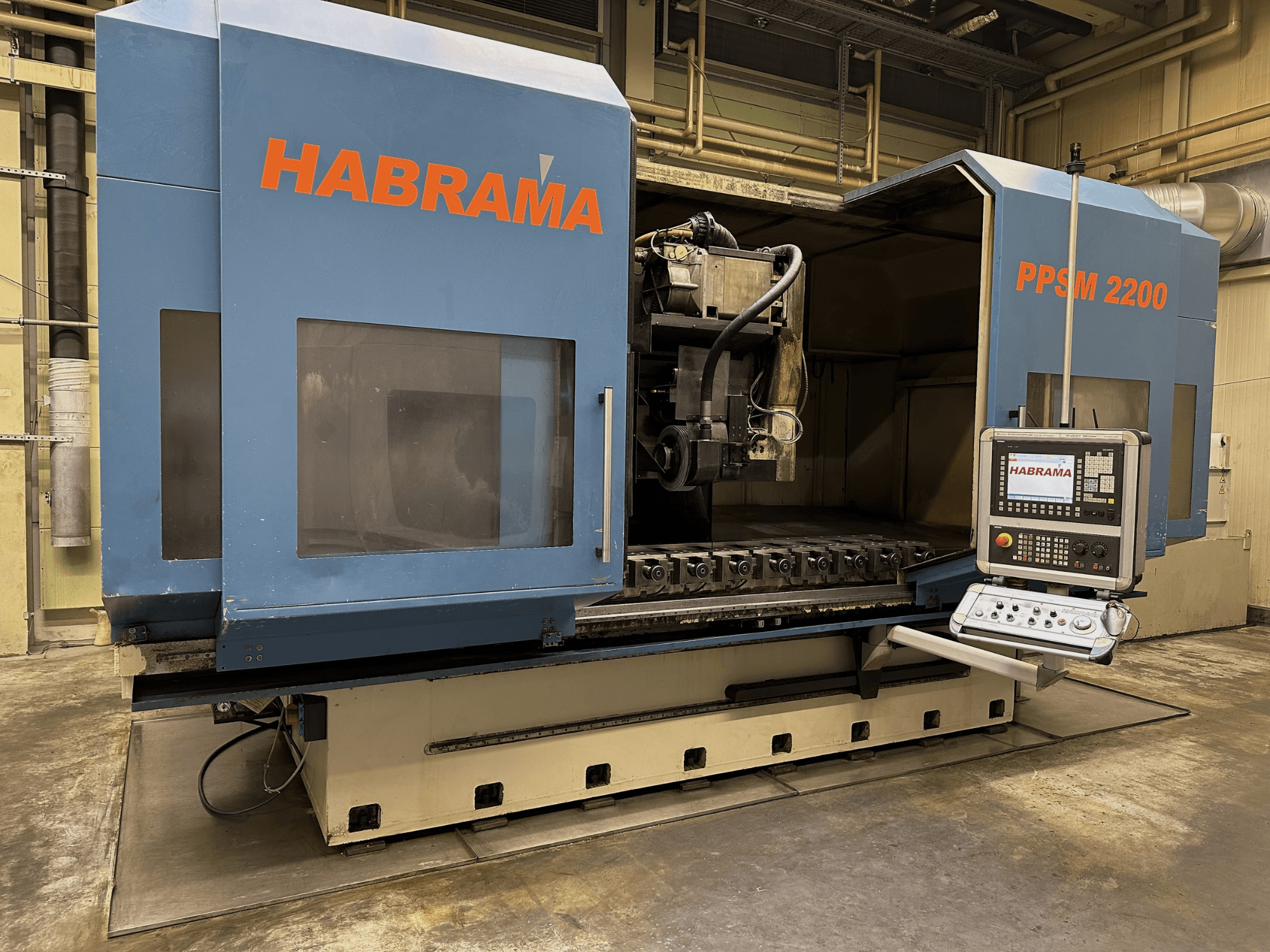

Habraman PPSM 2200 milling machine, front view, features control panel and visible tool holder with multiple clamping slots.
Habraman PPSM 2200 milling machine, front view, features control panel and visible tool holder with multiple clamping slots.

HABRAMA - PPSM 2200DE-OTH-HAB-2009-00001

171,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis HABRAMA PPSM 2200 was manufactured in 2009. It features a robust workbench of 390 x 3750 mm, supporting a maximum table load of 4000 kg. The grinding head offers a drive power of 45 kW and a spindle speed of up to 4000 rpm. With a total power consumption of 100 kVA and a weight of 20,000 kg, this machine ensures precision and efficiency for complex grinding tasks. Contact us for more information about this machine.

Overview

  • brand: HABRAMA
  • year: 2009
  • MODEL: PPSM 2200
  • application type: Other Machine Tools
  • Location: Germany
  • machine type: Machine Tool
  • control unit brand: SIEMENS

Technical Information - HABRAMA PPSM 2200

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840D SL Sinumerik

Dimensions

  • Machine Height: 2600 mm
  • Machine Length: 5200 mm
  • Machine Weight: 20000 kg
  • Table Load: 4000 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 2500 mm
  • Y-axis Travel: 500 mm
  • Z-axis Travel: 410 mm

Technical Specification

  • Spindle Power: 45 kW
  • Spindle Speed: 4000 RPM

Additional Information

  • Axes and travels

    • C-axis: +30° / -30°

    • B-axis: +20° / -20°

    • U-axis: 105 mm

    • W-axis: 125 mm

    • B2-axis: +20° / -20°

  • Worktable

    • Workbench size: 390 x 3750 mm

  • Feed speeds

    • X-axis: 21 m/min

    • Y-axis: 10 m/min

    • Z-axis: 6 m/min

    • C-axis: 2 m/min

    • B-axis: 6 m/min

    • U-axis: 4 m/min

    • W-axis: 4 m/min

    • B2-axis: 6 m/min

  • Grinding head

    • Grinding wheel mount: 100 mm H5

    • Programmable constant cutting speed: 10–80 m/s

    • Grinding wheel type: ceramic or resin bonded

    • Max. grinding wheel width: 101 mm

    • Grinding wheel diameter: 210–400 mm

    • Grinding wheel bore: 152.4 mm (6")

    • Grinding range: up to module 22; custom profiles freely programmable

  • Total machine power consumption: 100 kVA

Additional equipment

  • Hybrid clamping device/plates (workholding)

  • Coolant system approx. 4000 liters with integrated deep-bed filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
