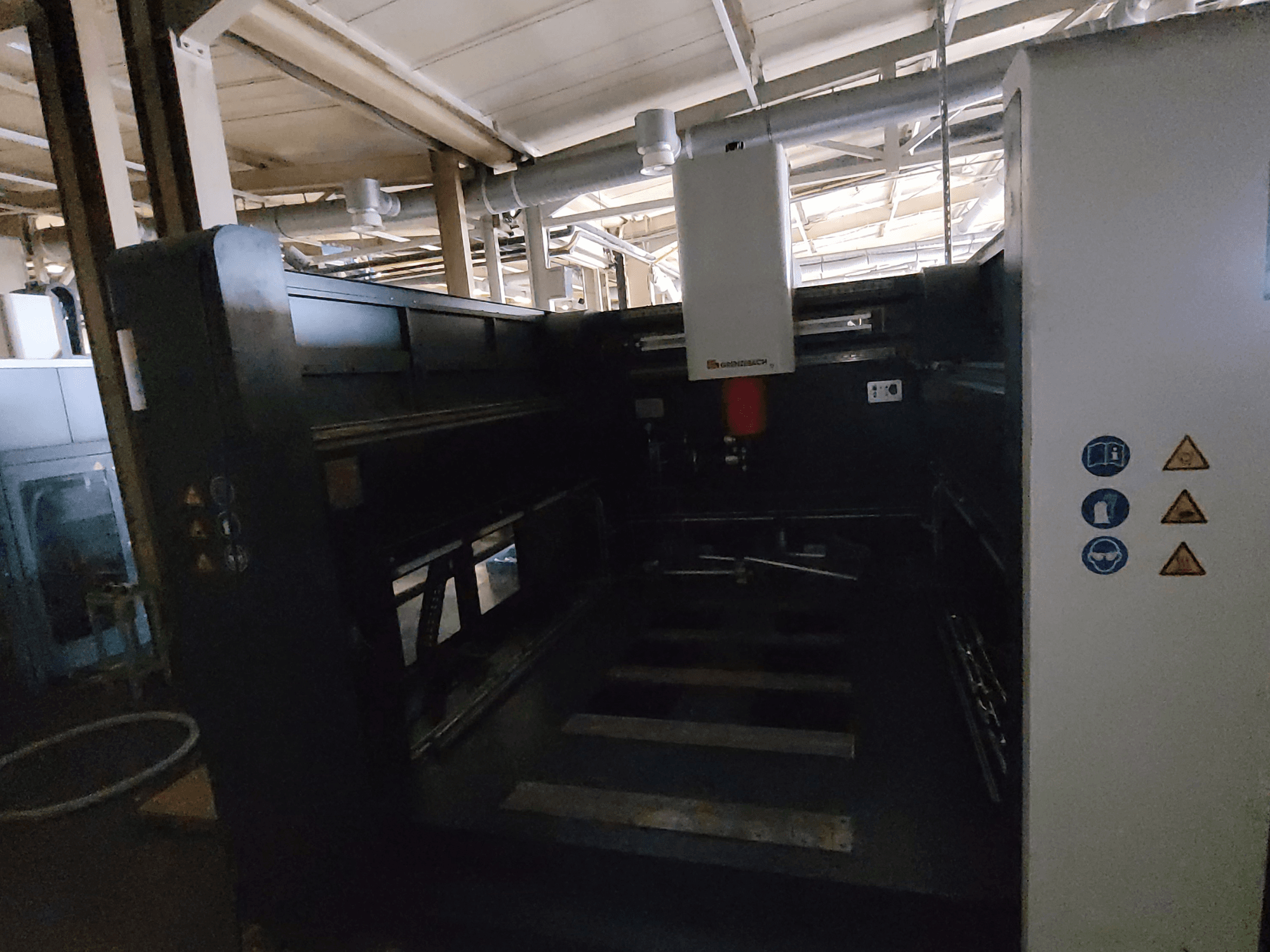

GRENZEBACH - Grenzebach FSW Machine DSM 3000SI-OTH-GRE-2021-00001

• Units available: 2

• Weights:

  • Basic machine: 18,750 kg

  • ZC axis: 1,290 kg

  • Welding head: 10 kg

  • Control system: 750 kg

  • Overall machine: approx. 26,000 kg

• Electrical:

  • Max. power consumption: 10 kW

  • Voltage: 400 V

  • Frequency: 50 Hz

  • Power supply: 3PH + N + PE

  • Mains fuse: 32 A

• Pneumatics:

  • Min. line pressure: 6 bar

  • Connection diameter: 1"

  • Air consumption: approx. 21 m³/h

  • Compressed air quality: ISO 8573-1 Class 4.4.1

• Hydraulic system:

  • Flow rate: 5.1 l/min

  • Rated pressure: 340 bar

  • Filling quantity: approx. 15 l

  • Effective capacity: approx. 11 l

• Working area:

  • Max. rapid traverse: 20 m/min

  • Max. process speed: 1.5 m/min

• Process/operating data:

  • Process force X/Y: 2.6 kN

  • Process force Z: 10 kN

  • Max. spindle speed: 5,000 rpm

  • Operating temperature: +15 to +35 °C

  • Max. humidity: 70%

  • Max. operating time: 24 h/day

Additional equipment

• Clamping device (approx. 7,500 kg)
