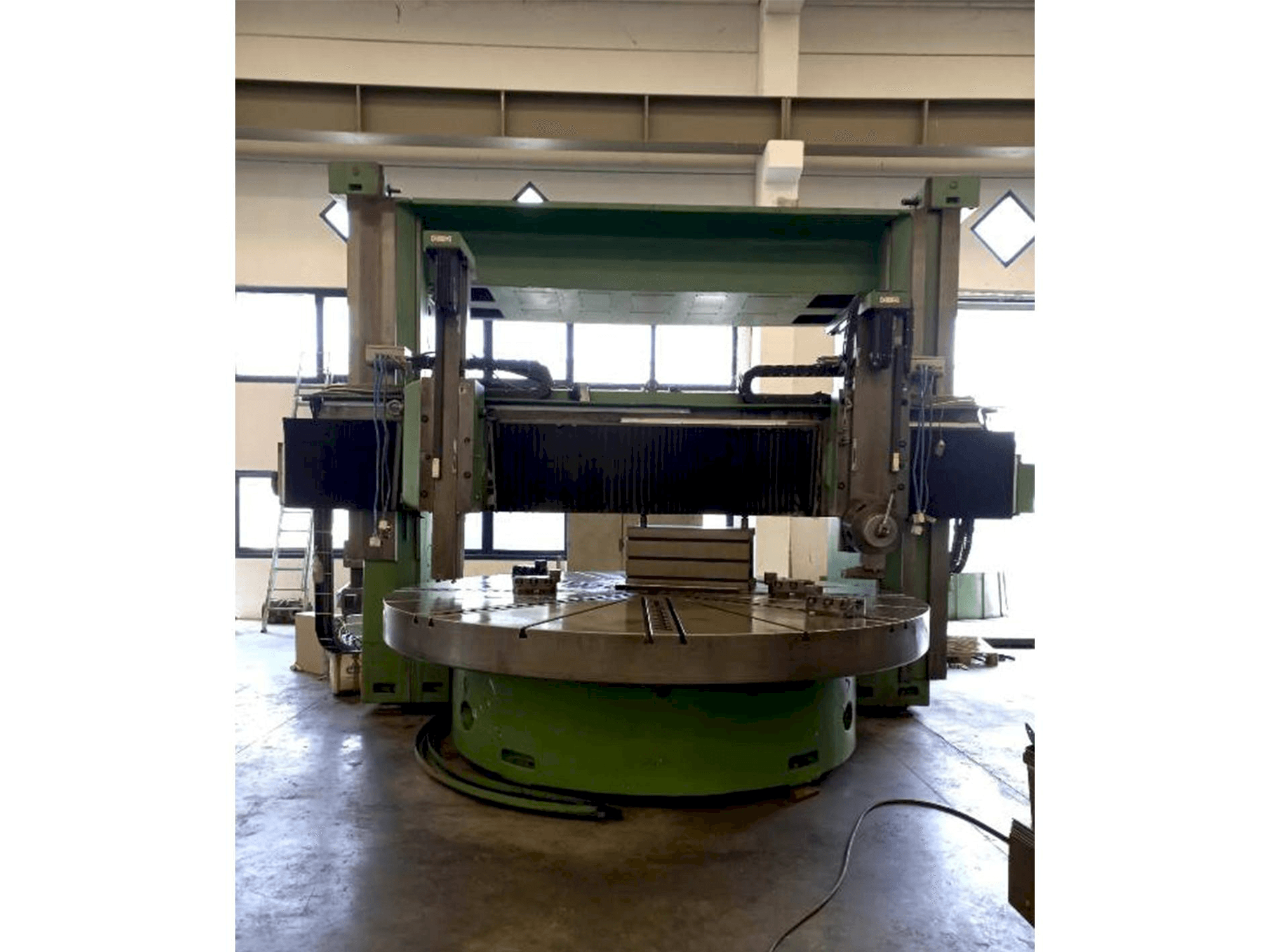

Front view of Titan SC 43 ECS 1400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Titan SC 43 ECS 1400

Photo Gallery

Titan - SC 43 ECS 1400IT-TUR-TIT-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Titan SC 43 ECS 1400 Lathe

This Titan SC 43 ECS 1400 Lathe was manufactured in the year 1998. It comes with a table revolution between 1.02 - 92 rpm and a diameter of 4000 mm. This 2 axis machine operates with a vertical stroke left carriage of 1200 mm and right carriage of 760 mm.

Overview

brand: Titan
year: 1998
MODEL: SC 43 ECS 1400
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Titan SC 43 ECS 1400

Dimensions

Machine Weight: 62800 kg

Movement

Number of Axes: 2

Additional Information

Machine Benefits

Technical Machine Benefits

Table diameter: 4000 mm
Maximum turning diameter: 4300 mm
Maximum workable height: 2060 mm
Table motor power: 55 kw
Table revolutions: 1. 02 - 92 rpm
Vertical stroke left carriage: 1200 mm
Vertical stroke of the right carriage: 760 mm
Maximum stroke of the wagons on the crossbar 2400 mm (right and left wagon)
Carriage inclination: +/- 35 °
Installed power: 75 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
