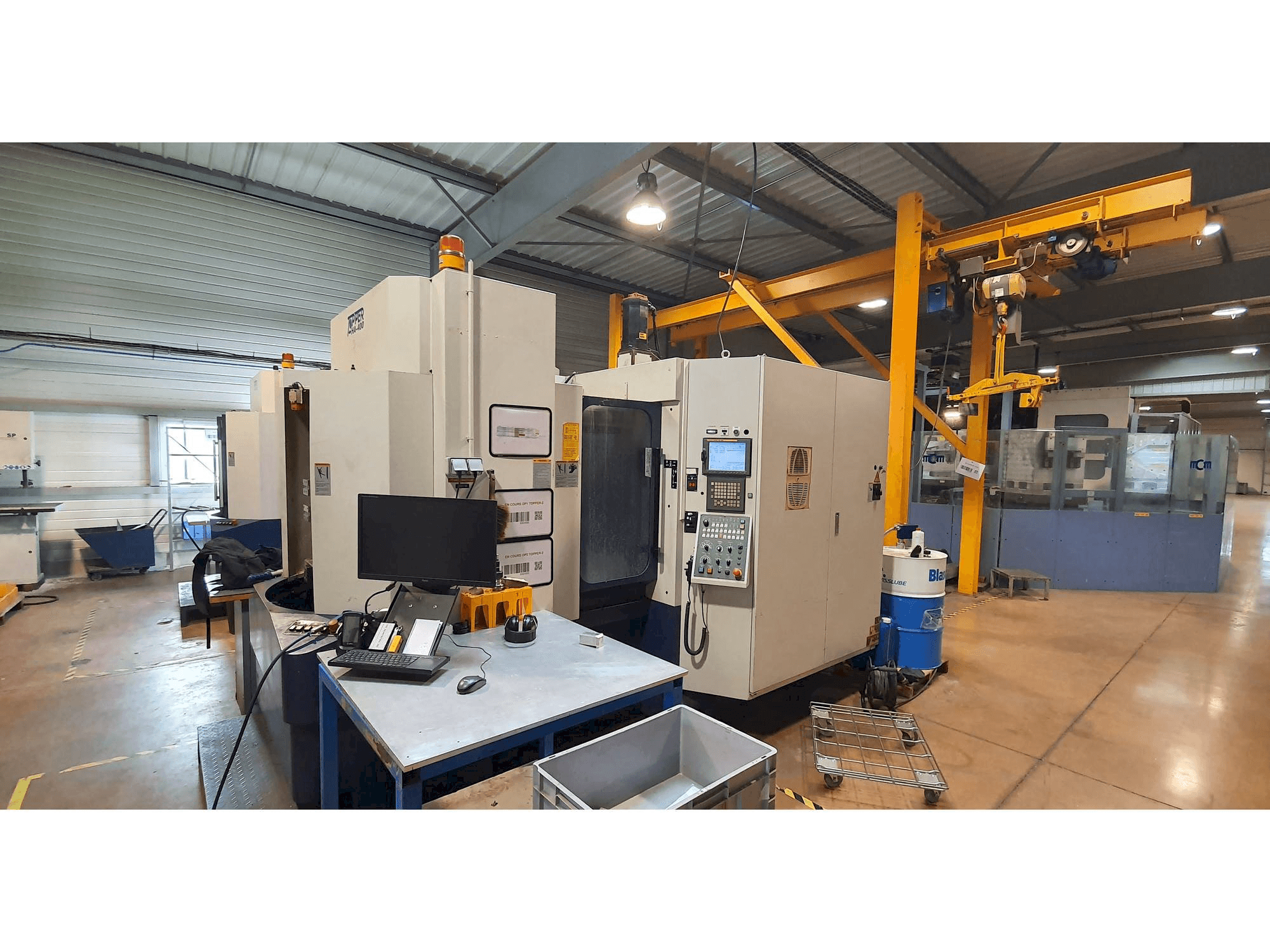

TONGTAI H400 Horizontal Machining center

This TONGTAI H400 Horizontal Machining center was manufactured in the year 2007. It is equipped with a Fanuc 18i-MB control unit. The machine has a spindle speed of 60-12000 rpm. There are 2 exact same units available.

Overview

brand: Tongtai
year: 2007
MODEL: H400
application type: Milling
Location: France
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Tongtai H400

General Data

Measurements width: 2860 mm
Measurements depth: 3700 mm
Measurements height: 2828 mm
Machine weight: 9500 kg

Control Unit

Model: Series 18i-MB
Brand: FANUC

Main drive

Spindle speed range: 60-12000 1/MIN
Spindle motor power: 22/25 kW
Tool taper: 7/24

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 560 mm

Turret

Number of turrets: 2

Tools

Slots in storage: 60
Max weight: 8 kg
Max tool diameter: 70 -140mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table height: 1100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
