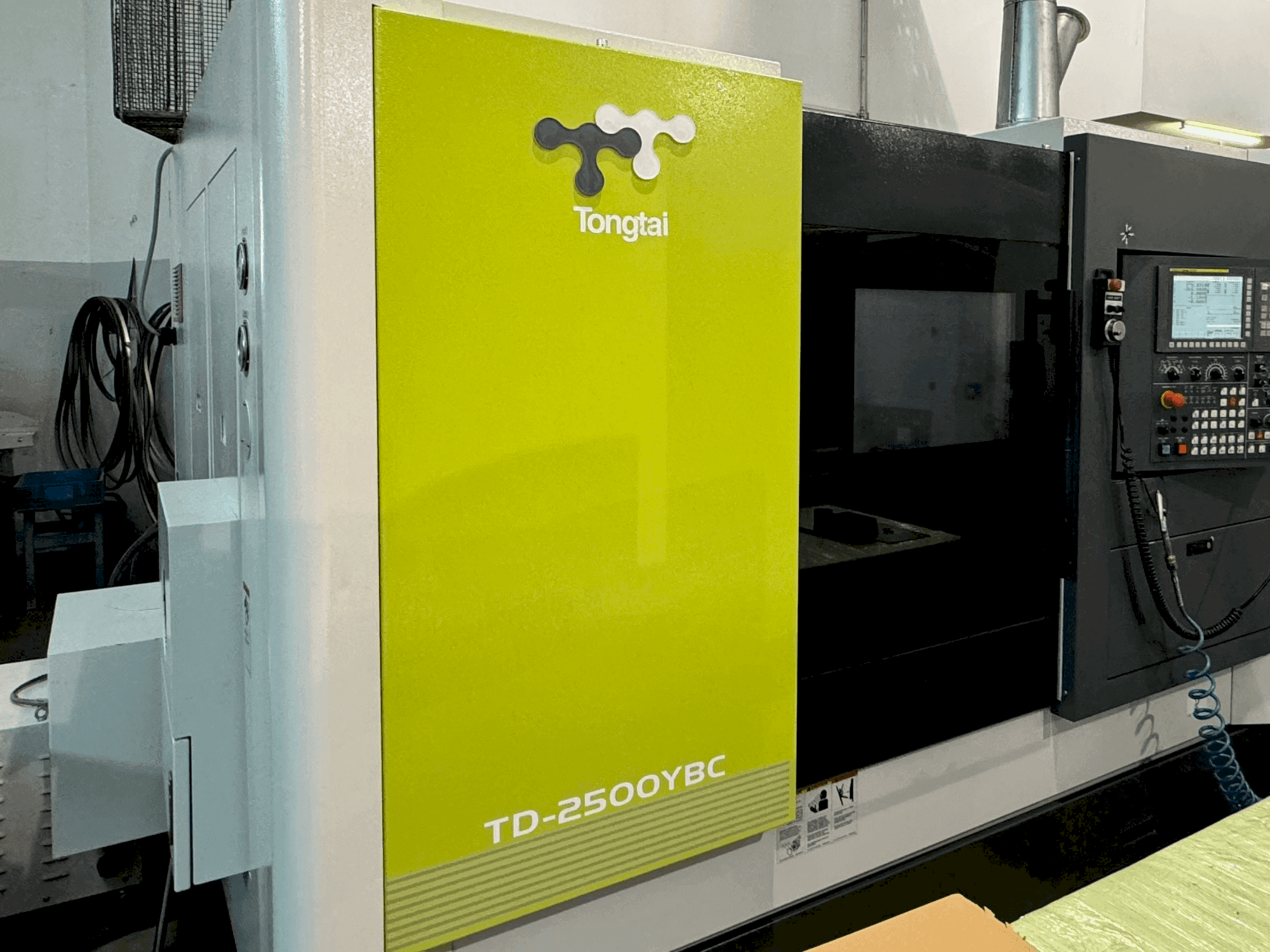

This TONGTAI TD-2500YBC Lathe was manufactured in 2019 in Taiwan. It is equipped with a FANUC Q1-TF control and has a spindle speed of 3500 rpm. The machine has 4 axes (X/Y/Z/B Axis Travel: 230/±51/600/630 mm) and can process a bar capacity of Ø64 mm. It is in a well-preserved condition with overall 7,600 operating hours.
Overview
- brand: Tongtai
- year: 2019
- MODEL: TD-2500YBC
- production hours: 7600
- application type: Turning
- Location: Slovenia
- machine type: Lathe
- availability: Immediately
- control unit brand: FANUC
Technical Information - Tongtai TD-2500YBC
General Data
- Machine weight: 6340 KG
Control Unit
- Brand: FANUC
- Model: Q1-TF
Main drive
- Spindle speed range: 3500 1/MIN
- Spindle motor power: 18.5
- Number of axis: 4
Movement
- X-AXIS Movement: 230 mm
- Y-AXIS Movement: ±51 MM
- Z-AXIS Movement: 600 MM
- B-AXIS Movement: 630 MM
Additional Information
- Technical Machine Benefits:
- - Travel distance x-axis: 230 mm
- - Rapid traverse: x-axis: 30,000 mm/min - y-axis: 15,000 mm/min - z-axis: 30,000 mm/min
- - Rotational speed: 3,500 rpm (min. )
- - Chuck o. D. : 10" inch, bar capacity: Ø64 mm
- - X/y/z/b axis travel: 230/±51/600/630 mm
- - X/y/z/b axis rapid traverse: 30/15/30/30 m/min
- - Spindle nose: a2-8
- - Spindle motor: 18. 5/15/11 kw
- - Sub-spindle chuck o. D. : [6"] inch, sub-spindle speed: [5,000] rpm, sub-spindle motor: [7. 5/5. 5] kw
- - Tool capacity: vdi-40/bmt-65: 12 pc, vdi-30/bmt-55: 16 pc
- Qualitative Machine Benefits:
- - Well-preserved used cnc lathe, tongtai td-2500
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
