TOPEDM - TSH-400THR-EDM-TOP-2012-00001

Name: TOPEDM TSH-400T
Brand: TOPEDM
SKU: HR-EDM-TOP-2012-00001
Price: 17000 EUR
Availability: InStock

17,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TOPEDM TSH-400T For Sale | gindumac.com

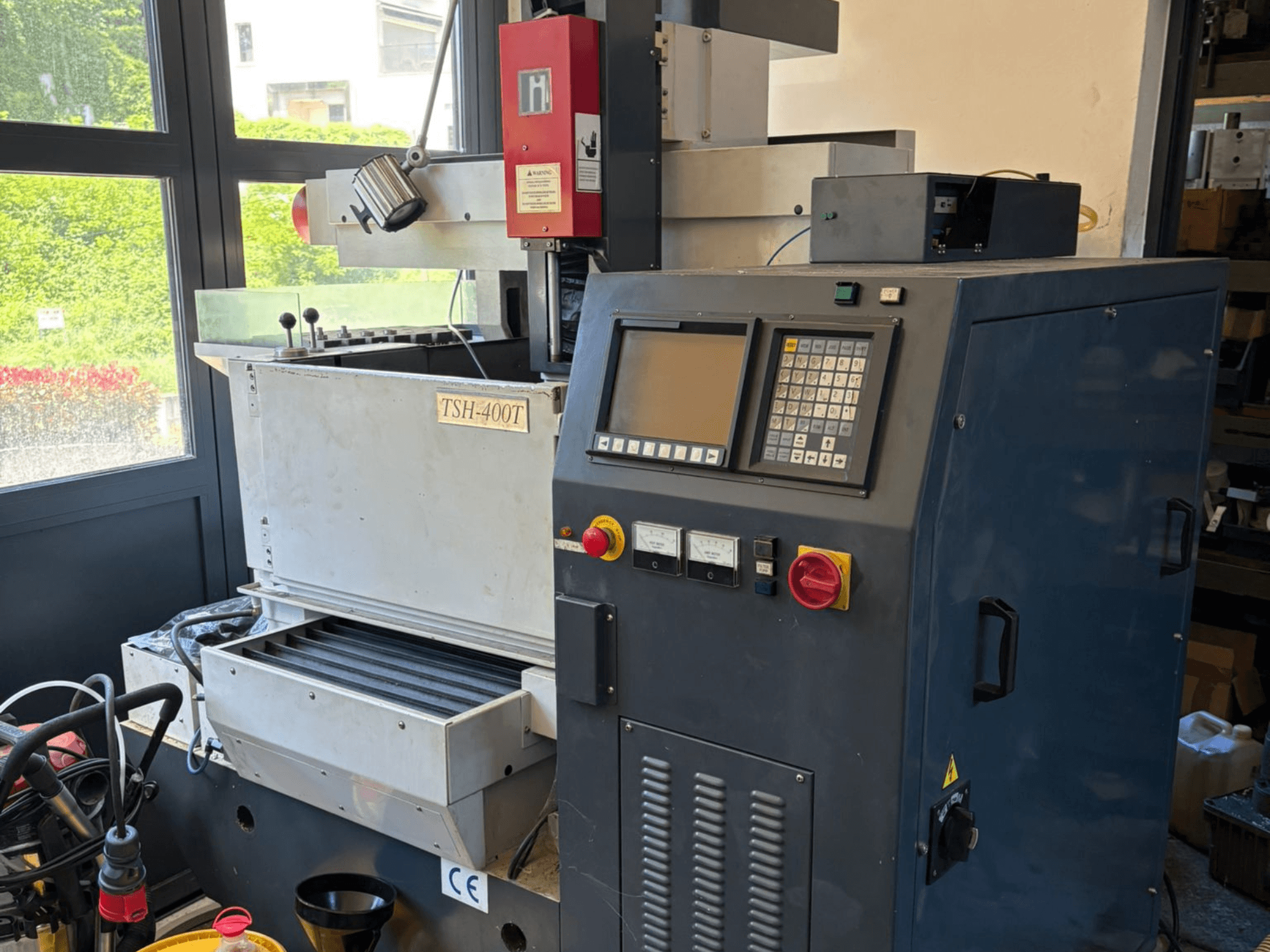

This 5-axis TOPEDM TSH-400T CNC EDM Spark Erosion Hole Drilling Machine machine was manufactured in 2012. It features an X-axis travel of 400 mm, Y-axis travel of 400 mm, and Z-axis travel of 390 mm. The machine includes a stainless steel table size of 480 × 458 mm and an automatic electrode changer with 21 positions. If you are looking to get high-quality spark erosion hole drilling capabilities, consider the TOPEDM TSH-400T Spark Erosion Hole Drilling Machine EDM we have for sale. Contact us for further details.

Overview

brand: TOPEDM
year: 2012
MODEL: TSH-400T
application type: EDM
Location: Croatia
machine type: Die-Sinking EDM Machine

Technical Information - TOPEDM TSH-400T

Dimensions

Machine Height: 2580 mm
Machine Length: 2700 mm
Machine Weight: 2100 kg
Machine Width: 1900 mm

Movement

Number of Axes: 5
X-axis Travel: 400 mm
Y-axis Travel: 400 mm
Z-axis Travel: 390 mm

Additional Information

Machine head travel: 310 mm
Stainless steel table size: 480 × 458 mm
Work tank size: 670 × 930 × 330 mm
Max. distance between guide unit and worktable: 315 mm
Electrode diameter: Ø0.15 – Ø6.0 mm
Submersible tank: Yes
Dielectric system: Pressure and deionization control
Max. machining current: 50 A
Max. power consumption: 5 kVA
Electrical data: 380 V, 50/60 Hz, 14.6 A

Additional equipment

Automatic Electrode Changer (AEC), 21 positions
Automatic Guide Changer (AGC), 5 guides

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
