HUBER - River 600 CNCDE-EDM-HUB-2017-00001

Name: HUBER River 600 CNC
Brand: HUBER
SKU: DE-EDM-HUB-2017-00001
Price: 22000 EUR
Availability: InStock

22,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HUBER River 600 CNC For Sale | gindumac.com

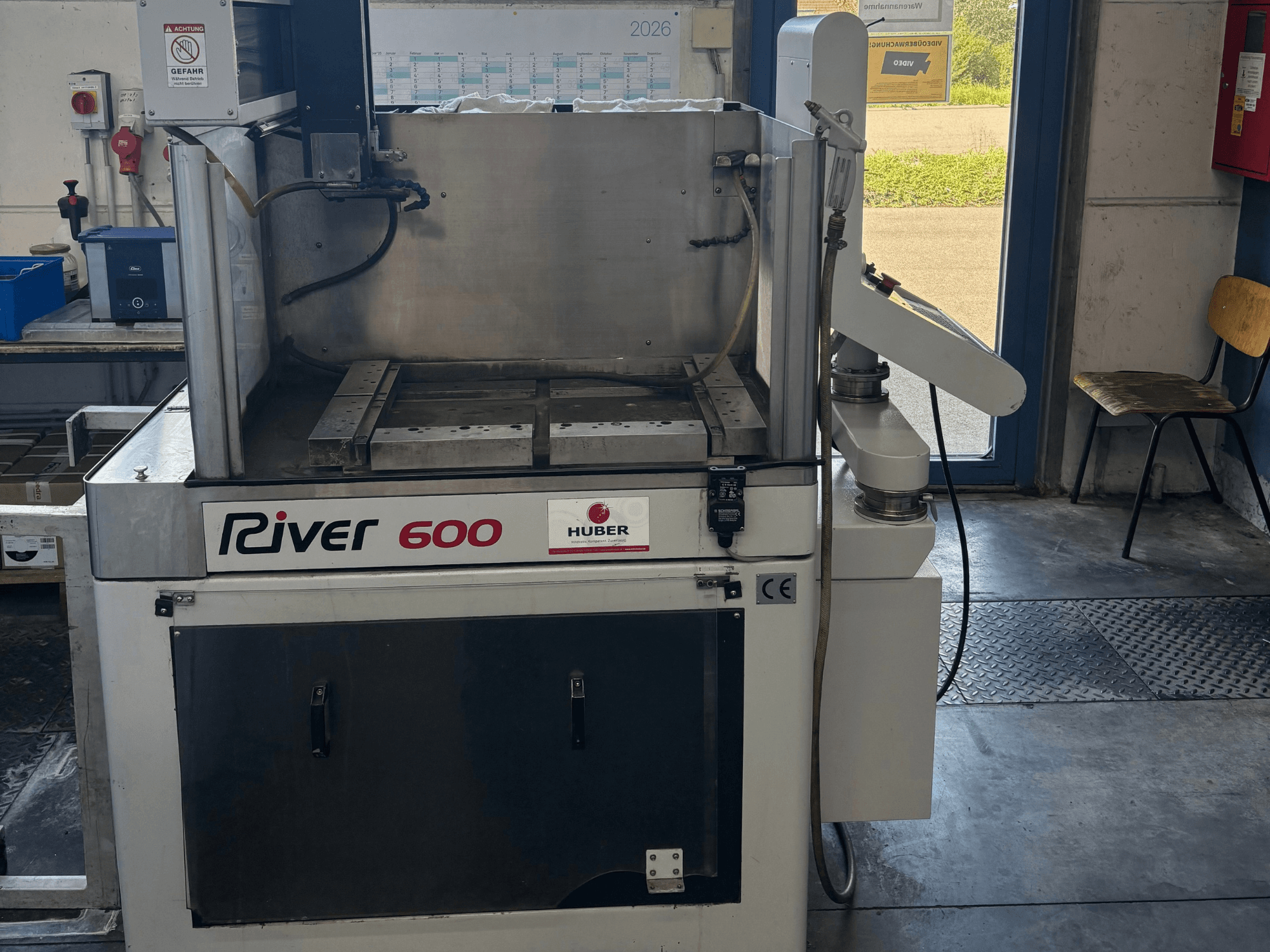

This 4-axis HUBER River 600 CNC was manufactured in 2017. It features a traverse of 600 x 400 mm in the X and Y directions, and a Z-axis travel of 300 mm. The machine accommodates electrode diameters ranging from 0.3 to 3.0 mm. If you are looking to get high-quality small hole drilling capabilities, consider the HUBER River 600 CNC die-sinking EDM machine we have for sale. Contact us for further details.

Overview

brand: HUBER
year: 2017
MODEL: River 600 CNC
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine
Available from: 01/04/2027

Technical Information - HUBER River 600 CNC

Dimensions

Machine Height: 2300 mm
Machine Length: 1200 mm
Machine Weight: 1100 kg
Machine Width: 1500 mm
Table Length: 600 mm
Table Load: 800 kg
Table Width: 900 mm

Movement

Number of Axes: 4
X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 300 mm

Additional Information

- Traverses (X x Y): 600 x 400 mm

- Traverse (Z): 300 mm

- Electrode Diameter: 0.3 – 3.0 mm

- Max. Workpiece Height: 400 mm

- Max. Workpiece Weight: 800 Kg

- Max. Power Consumption: 3.8 kVA

- Amperage Performance: Standard 25 Amp.

- Input Voltage: 380 Volt / CE 16A - Electrode Diameter: 0.1 – 3.0 mm, Option 0.1 – 6.3 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
