Makino - EDNC 30DE-EDM-MAK-1998-00001

Name: Makino EDNC 30
Brand: Makino
SKU: DE-EDM-MAK-1998-00001
Price: 9900 EUR
Availability: InStock

9,900 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Makino EDNC 30 For Sale | gindumac.com

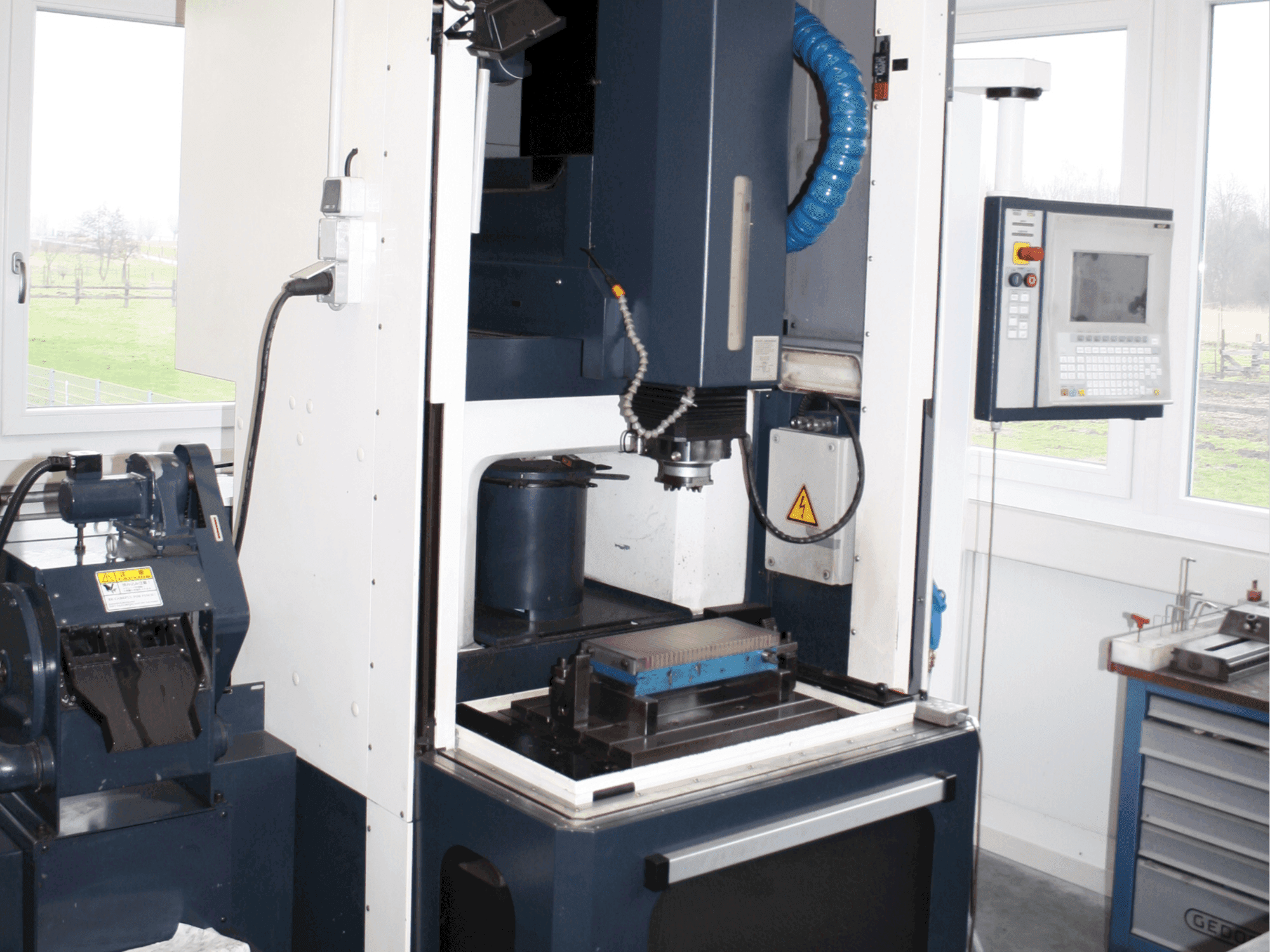

This 3-axis Makino EDNC 30 die-sinking EDM machine was manufactured in 1998. It features travel paths of 300mm in X, 250mm in Y, and 250mm in Z, a table size of 500 × 350 mm, and can handle a maximum workpiece weight of 500 kg. Consider the opportunity to buy this Makino EDNC 30 die-sinking EDM machine. Contact us for more information about this machine.

Overview

brand: Makino
year: 1998
MODEL: EDNC 30
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine
control unit brand: MAKINO

Technical Information - Makino EDNC 30

Control Unit

Control Brand: MAKINO
Control Model: MGF

Dimensions

Machine Depth: 2000 mm
Machine Height: 2290 mm
Machine Weight: 3200 kg

Movement

Number of Axes: 3
X-axis Travel: 300 mm
Y-axis Travel: 250 mm
Z-axis Travel: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Total area: width 3000 mm, y 2800 mm
Power: 12 kva, 400 v, 12 a
Table size: 500 mm x 350 mm
Tool positions: 8
Polishing edm is possible with this machine.

Extra Information

Polishing EDM is possible with this machine

Faulty circuit board (machine won't start up)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
