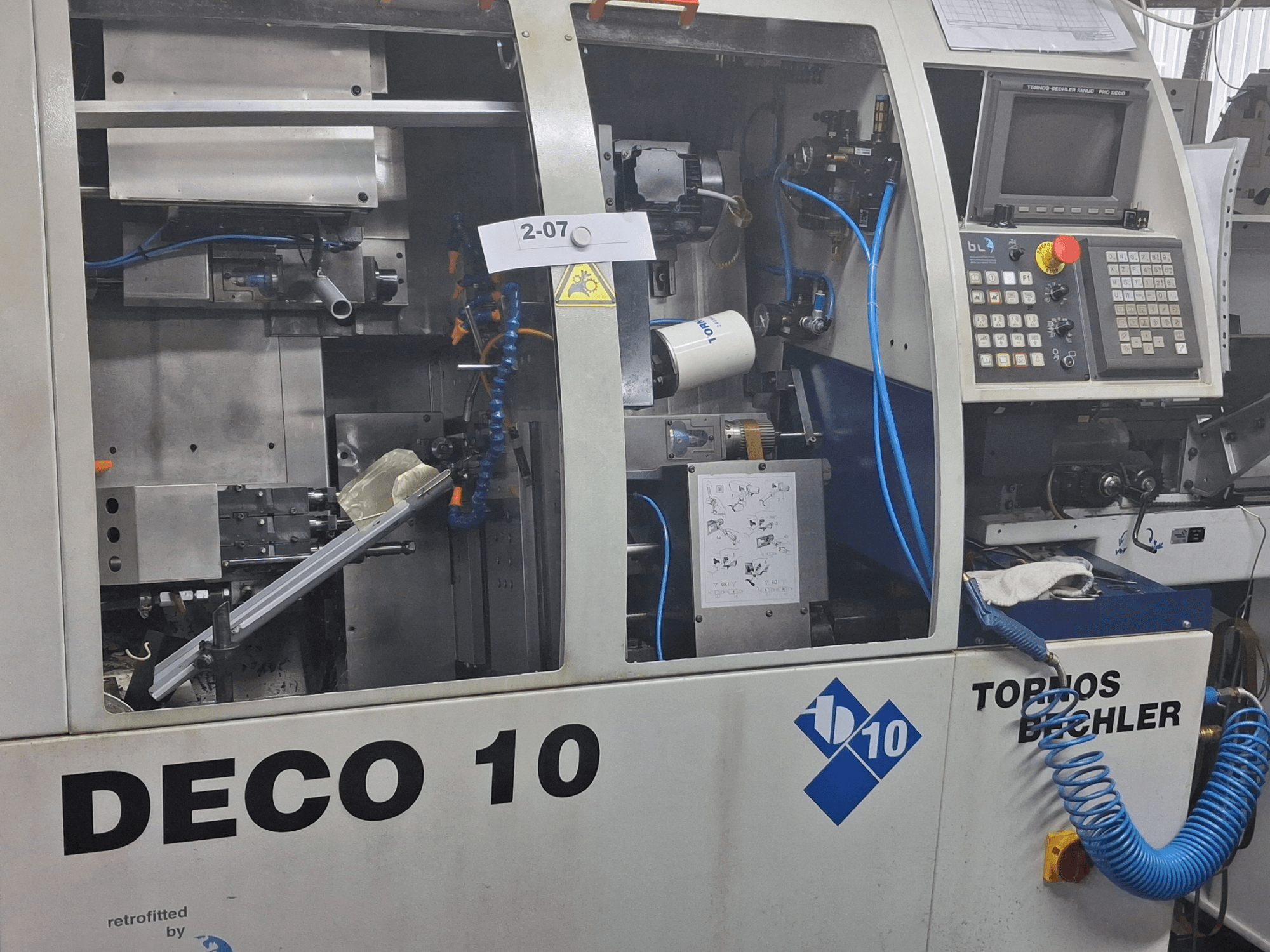

Close-up view of TORNOS Deco 10a Swiss Type Turning Machine, showcasing internal mechanism and control panel details.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TORNOS Deco 10a

Photo Gallery

TORNOS - Deco 10aDE-TUR-TOR-2000-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TORNOS Deco 10a For Sale | gindumac.com

Swiss type turning machine manufactured in 2000. This TORNOS Deco 10a features a movable headstock, independent counter spindle, and a pivoting workpiece holder. It includes a loading magazine with a drum and a lubrication device for guide bushing. If you are looking to get high-quality turning capabilities, consider the TORNOS Deco 10a machine we have for sale. Contact us for further details.

Overview

brand: TORNOS
year: 2000
MODEL: Deco 10a
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine

Technical Information - TORNOS Deco 10a

Movement

Number of Axes: 9

Technical Specification

Counter Spindle: No
Max. Bar Diameter: 7 mm

Additional Information

Movable headstock
Directional spindle stop S1
Cross slide with 4 tool holders T11–T24 with vertical and horizontal movement
Independent counter spindle
Pivoting workpiece holder on the counter spindle
Lubrication device for guide bushing with filter
Motorization S2
Integrated 25-liter hydraulic unit with filter
Electrical control box
Motor voltage 400 V
Control voltage 24 V
Drive motor n = 12,000 rpm

Additional equipment

Loading magazine with drum (bar feeder)
“HYBRIDE 10+5” drum with 14 guide tubes for 1–4 mm bars and 14 guide tubes for 4.1–10 mm bars (no bar preparation up to 8 mm)
3 pre-settable turning tool holders
4 fixed tool holders
Tapping attachment for collet chuck ESX 12
Front/rear support foot, center height 1100 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
