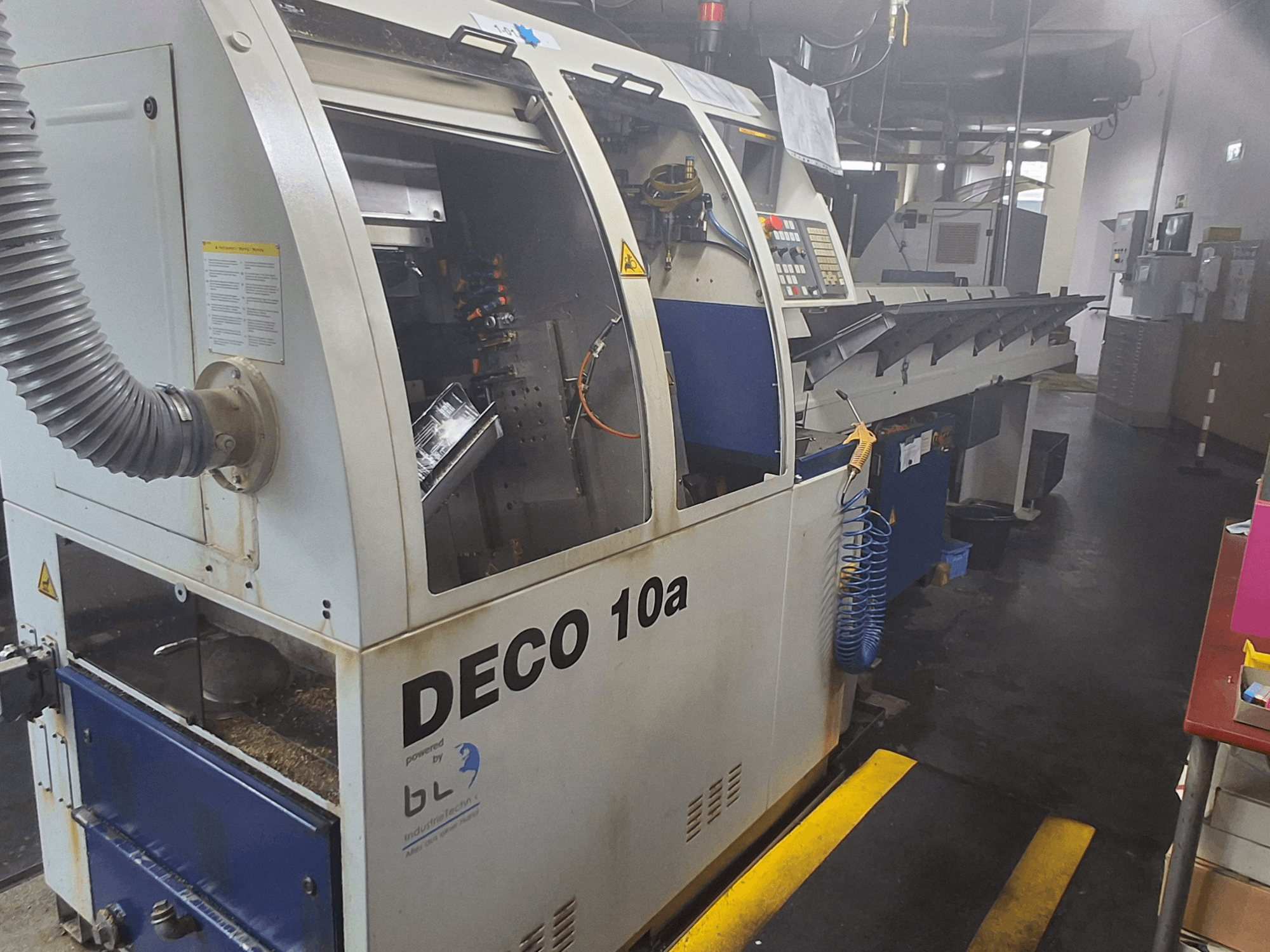

Swiss type turning machine manufactured in 2006. This TORNOS DECO 10a features an automatic and integrated bar loader with a maximum bar length of 3.2 m and a bar capacity ranging from 2 to 10 mm. It includes a Robobar SSF 3m loading magazine and is equipped with a FANUC 16i-TB control system. If you are looking to get high-quality turning capabilities, consider the TORNOS DECO 10a machine we have for sale. Contact us for further details.
Overview
- brand: TORNOS
- year: 2006
- MODEL: DECO 10a
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - TORNOS DECO 10a
Control Unit
- Control Brand: FANUC
- Control Model: 16i-TB
Movement
- Number of Axes: 9
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 10 mm
Additional Information
Overhauled in 2016:
Checked machine, ball screws (replaced if necessary), guides, guide bushing, main and counter spindles
Complete cleaning
Maintenance carried out in accordance with Block 3
Replacement of all drive belts
Barriers, relays, filter mats replaced
Reference points adjusted
Configuration/features:
Moving headstock
Directed spindle stop (S1)
Independent counter spindle (S4)
9 axes with C1 and C4 and Transmit
1 cross slide with 4 tool holders
Sensor for tool breakage detection
Additional equipment
Automatic and integrated bar loader (oil bath) TORNOS-BECHLER Type SSF-210, equipped with Robobar SSF 3 m loading magazine
Max. bar length: 3.2 m
Bar capacity: min. 2 mm, max. 10 mm
Max. diameter without bar preparation: 8 mm (without clamp)
“HYBRIDE 10+5” drum with:
14 guide holes for 1–4 mm
14 guide holes for 4.1–10 mm
Loading magazine with drum
Integrated 25 L hydraulic unit with filter
Front/rear support foot, center height 1100 mm
Electrical control box (diagram 112.20.300)
Motor voltage 400 V, control voltage 24 V
Color: Anthracite RAL 7016 / Gray RAL 7035
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
