TORNOS - Multideco 26/6CZ-TUR-TOR-2001-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Tornos Multideco 26/6 Lathe

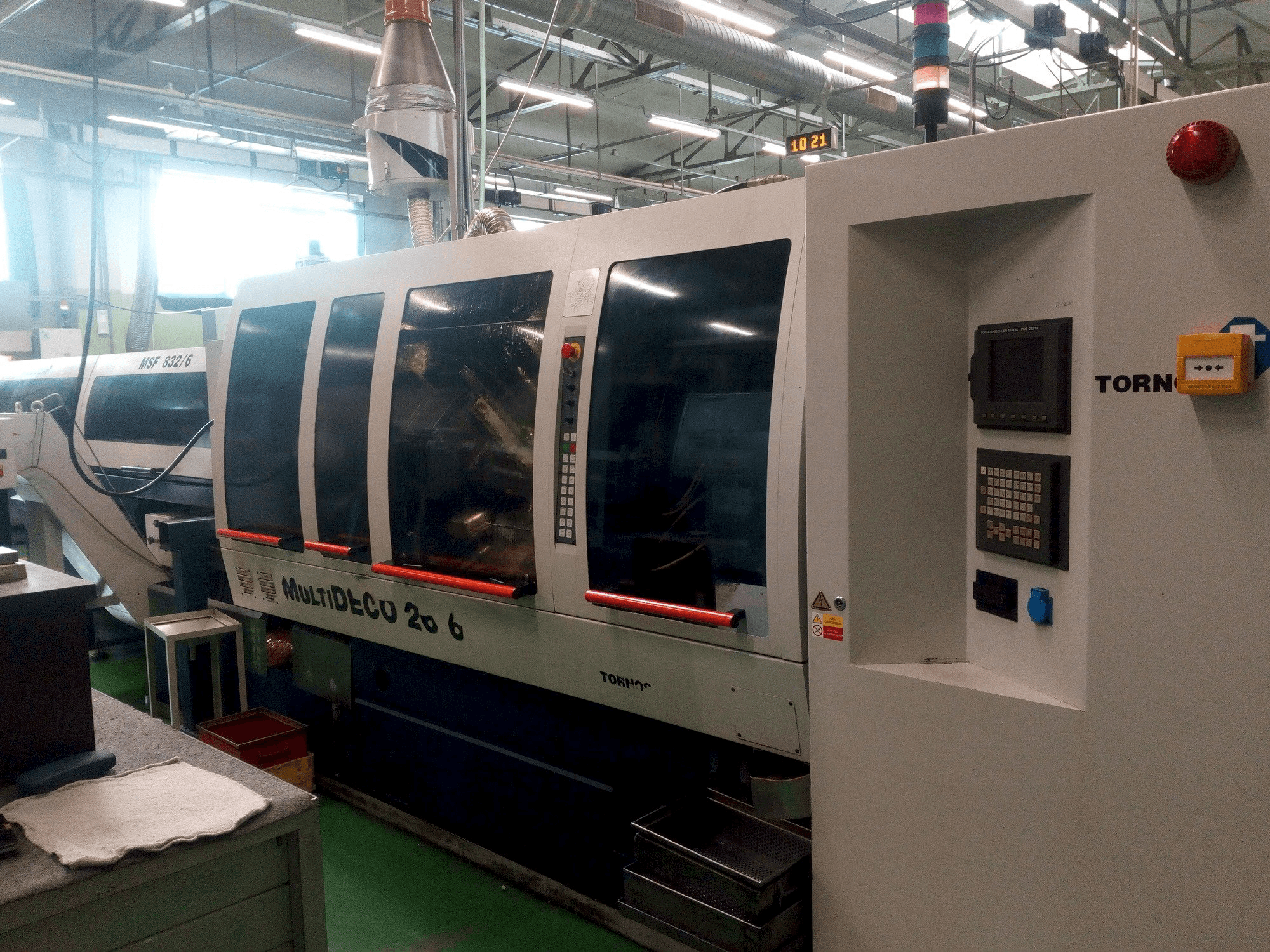

This Tornos Multideco 26/6 Lathe was built in Germany in 2001 and has been working for 69290 hours. Operated through a FANUC Series 16i Control unit, this machine works with a spindle speed up to 5000 rpm.
Overview
- brand: TORNOS
- year: 2001
- MODEL: Multideco 26/6
- production hours: 69290
- application type: Turning
- Location: Czech Republic
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - TORNOS Multideco 26/6
Control Unit
- Control Brand: FANUC
- Control Model: Series 16i
Dimensions
- Machine Depth: 1600 mm
- Machine Height: 1950 mm
- Machine Weight: 8000 kg
Technical Specification
- Max. Workpiece Diameter: 26 mm
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- Bar feeder Robobar MSF 832/6 (bar length 3000 mm)
Machine Benefits
Qualitative Machine Benefits
- Regularly serviced and maintained
- 2013 - new spindle bearings
- 2013 - new central shaft
- 2014 - new screws z13, z26, x3
- 2014 - new linear guideways
- 2015 - new motor x7, new hydraulic pump, new threading unit
- 2018- repair of axes z21, z22, z24; new z12 screw; new motor x3
- 2019 - new gearbox
Technical Machine Benefits
- Max. Turning diameter: 26 mm
- Number of spindles: 6 pcs
- Main motor power: 18 kw (1500 rpm)
- Torque 114. 6 nm (1500 rpm)
- Workpiece diameter: 8-26 mm
- Production capacity 40 pieces/min.
- Oil filtration
- Cooling
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
