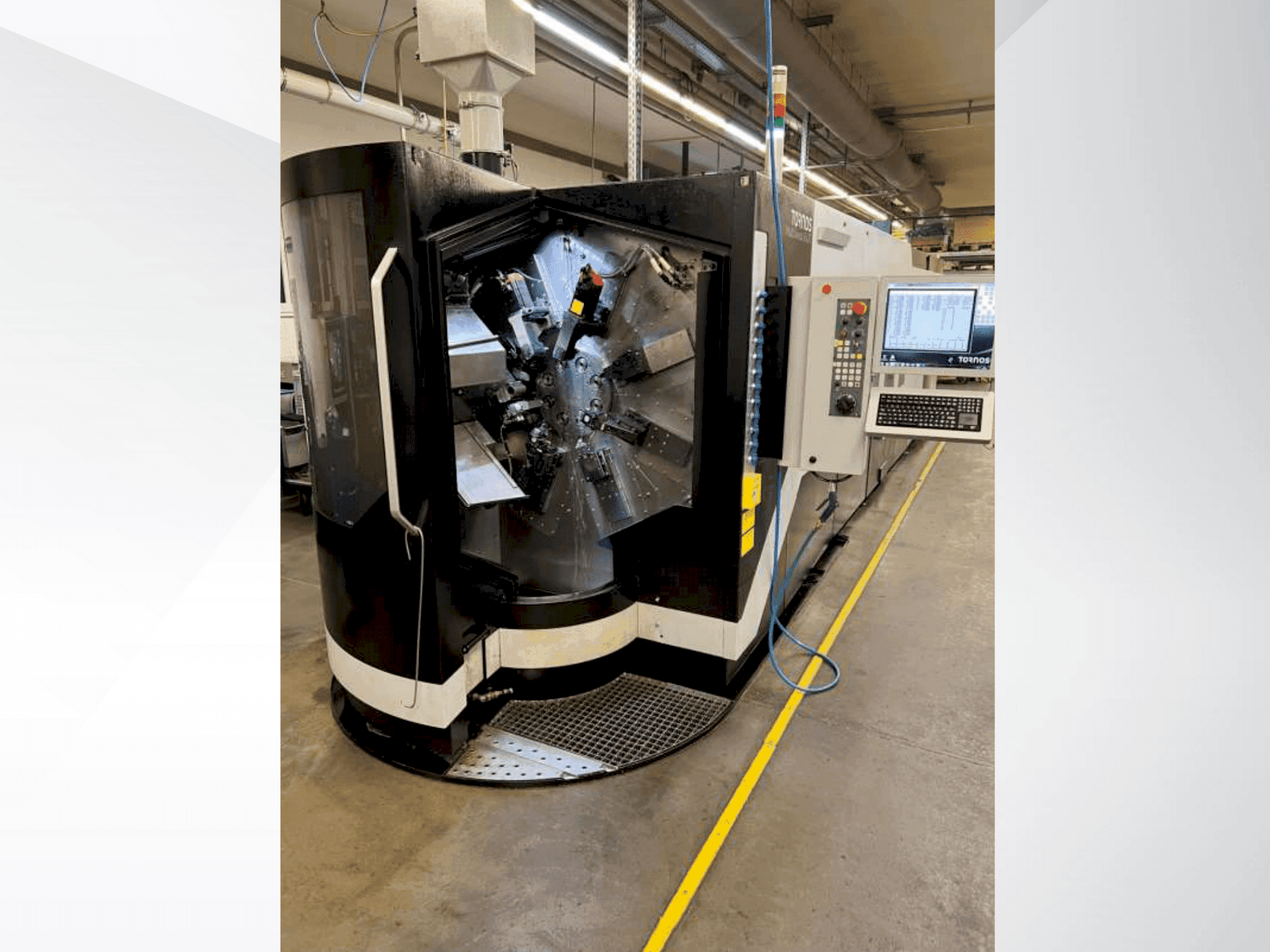

Front view of Tornos MultiSwiss 8x26  machine

Tornos MultiSwiss 8x26

Tornos - MultiSwiss 8x26


549,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This TORNOS MultiSwiss 8x26 Lathe was manufactured in the year 2018. It is equipped with a Kraft & Bauer fire extinguishing system and a hinged belt conveyor. It is included all existing machining units and accessories. The machine is under power and immediately available.


  • brand: Tornos
  • year: 2018
  • MODEL: MultiSwiss 8x26
  • production hours: 8070
  • application type: Turning
  • Location: Germany
  • machine type: Swiss Type Turning
  • availability: Immediately
  • GINDUMAC ID: DE-TUR-TOR-2018-00001

Technical Information

Main drive

  • Number of spindles: 9
  • Spindle speed range: 8000 rpm 1/MIN
  • Wire diameter: 26mm
  • Number of axis: 3

    Additional Equipment

    • - Including all existing machining units and accessories

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Oil cooling // all axes fully cnc
        • - 9 spindles (8 main and 1 counter)
        • - 4 x back machining
        • - Hinged belt conveyor for finished parts
        • - 2x 80 bar high pressure pumps
        • - Kraft & bauer fire extinguishing system
        • - Bar loader // paper belt filter
        • - Z axis: 75mm stroke 150mm x 170mm // stroke 8 slides x 80mm // stroke fanuc 30i // z 150mm x 170mm stroke
        • - Holder for 2 quick-change systems vdi-25 // slide max. 135mm // part length max. 65mm
        • - Collets diameter 6-26mm // counter-spindle collet 3-26mm diameter
      • Qualitative Machine Benefits:
        • - Machine under power and immediately available
        • - Oil collecting basin
        • - Clamping tubes 20mm diameter // reduction tubes 20mm diameter
        • - Bracket for 2 front units 25mm diameter // support for 2 front units 25mm diameter

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
