- TORNOS SAS 16.6 Swiss Type Turning

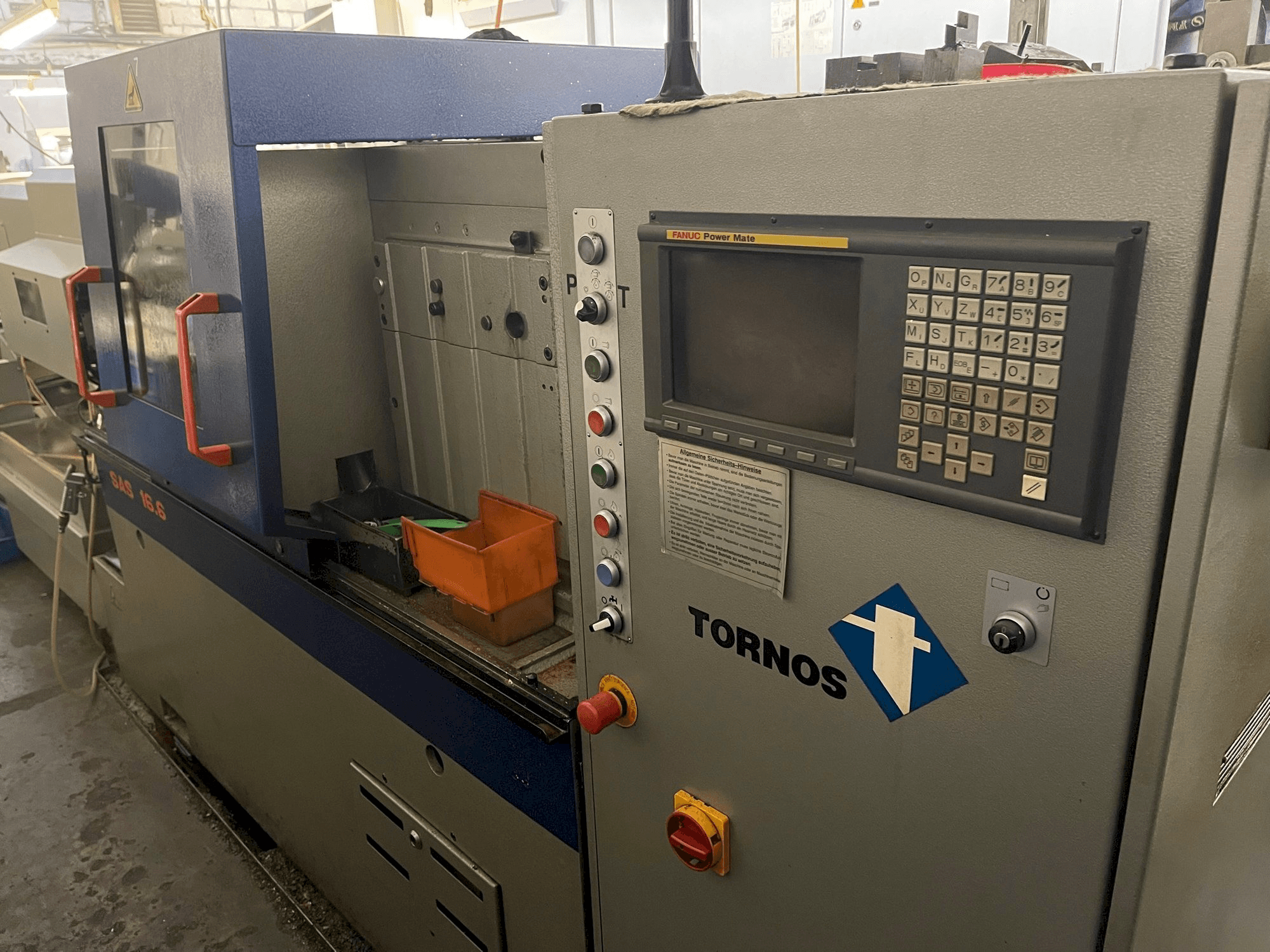

This TORNOS SAS 16.6 Swiss Type Turning was manufactured in the year 2011 in Switzerland and has 37276 production hours. It is equipped with a FANUC POWER MATE control unit. The machine has a spindle speed of 8000 rpm.
Overview
- brand: TORNOS
- year: 2011
- MODEL: SAS 16.6
- production hours: 37276
- application type: Turning
- Location: Poland
- machine type: Swiss Type Turning Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - TORNOS SAS 16.6
Control Unit
- Model: POWER MATE
- Brand: FANUC
Main drive
- Number of spindles: 6
- Spindle speed range: 250-8000 1/MIN
Media
- Main electronic connection: 380-420 V 50 Hz +/- 5%
Additional Information
- Technical Machine Benefits:
- - Max turning diameter: 16 mm
- - 6 spindles, 16mm (. 630") dia. Capacity
- - Locking of the barrel by hirt gearing
- - Indexing of barrel by manifold
- - Progr. Production cycle speed from 3-75 ppm
- - Progr. Acceleration of unproductive moves from 3-75 ppm
- - Automatic central lubrication system
- - Cutting oil tank cap. Of 300 l
- - Auxiliary motor for the coolant pump
- - Electrical cabinet with cn control panel
- Qualitative Machine Benefits:
- - The machine is in very good condition. Connected ready for tests.
- - 10 hp (7. 5 kw) motor ac type to drive the spindles
- - 2,4 hp (1,8 kw 3000 rpm) motor ac 5,9 nm type to drive the camshaft
- - 6 clamping tubes capacity 16mm
- - Standard slide pos. 1-6
- - Bar loading basic + feed tubes
- - Swing stop in position 6 as 29/7 including standard function cams
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
