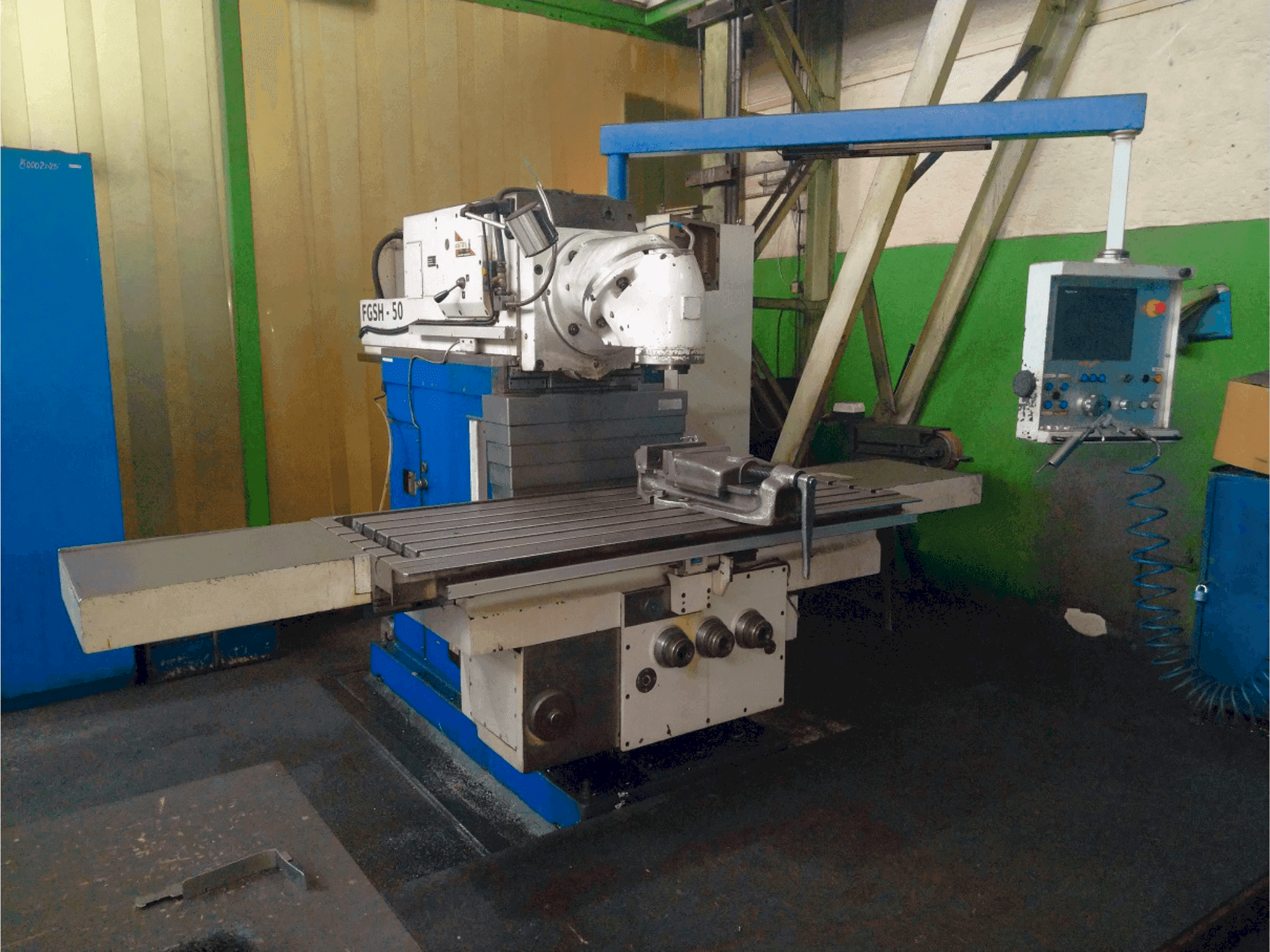

Front view of TOS FGSH 50  machine

TOS - FGSH 50CZ-MIL-TOS-1984-00001

25,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis TOS FGSH 50 milling machine was manufactured in 1984 and completely retrofitted in 2016. It features a robust table size of 630 mm x 1800 mm, a spindle diameter of 110 mm, and can handle a maximum workpiece weight of 1200 kg. The machine offers rapid traverses up to 4000 mm/min longitudinally and cross, and 1000 mm/min vertically. Ideal for heavy-duty milling, buy this TOS FGSH 50 milling machine. Contact us for further details regarding this milling machine.

Overview

  • brand: TOS
  • year: 1984
  • MODEL: FGSH 50
  • production hours: 4995
  • application type: Milling
  • Location: Czech Republic
  • machine type: Horizontal Machining Centre
  • availability: Immediately

Technical Information - TOS FGSH 50

General Data

  • Machine weight: 6500kg

Main drive

  • Spindle motor power: 2500 Nm
  • Tool taper: ISO 50

Movement

  • X-AXIS Movement: 1400 mm
  • Y-AXIS Movement: 630 mm
  • Z-AXIS Movement: 500 mm

    Additional Equipment

    • - Table Size: 630 mm x 1800 mm
    • - Clamping Slots: 5 slots, 22 mm width, 100 mm spacing
    • - Maximum Workpiece Weight: 1200 kg
    • - Rapid Traverse - Longitudinal and Cross: 4000 mm/min
    • - Rapid Traverse - Vertical: 1000 mm/min

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Completely retrofitted in 2016
      • Qualitative Machine Benefits:
        • - Able to handle large workpieces (up to 1200 kg)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
