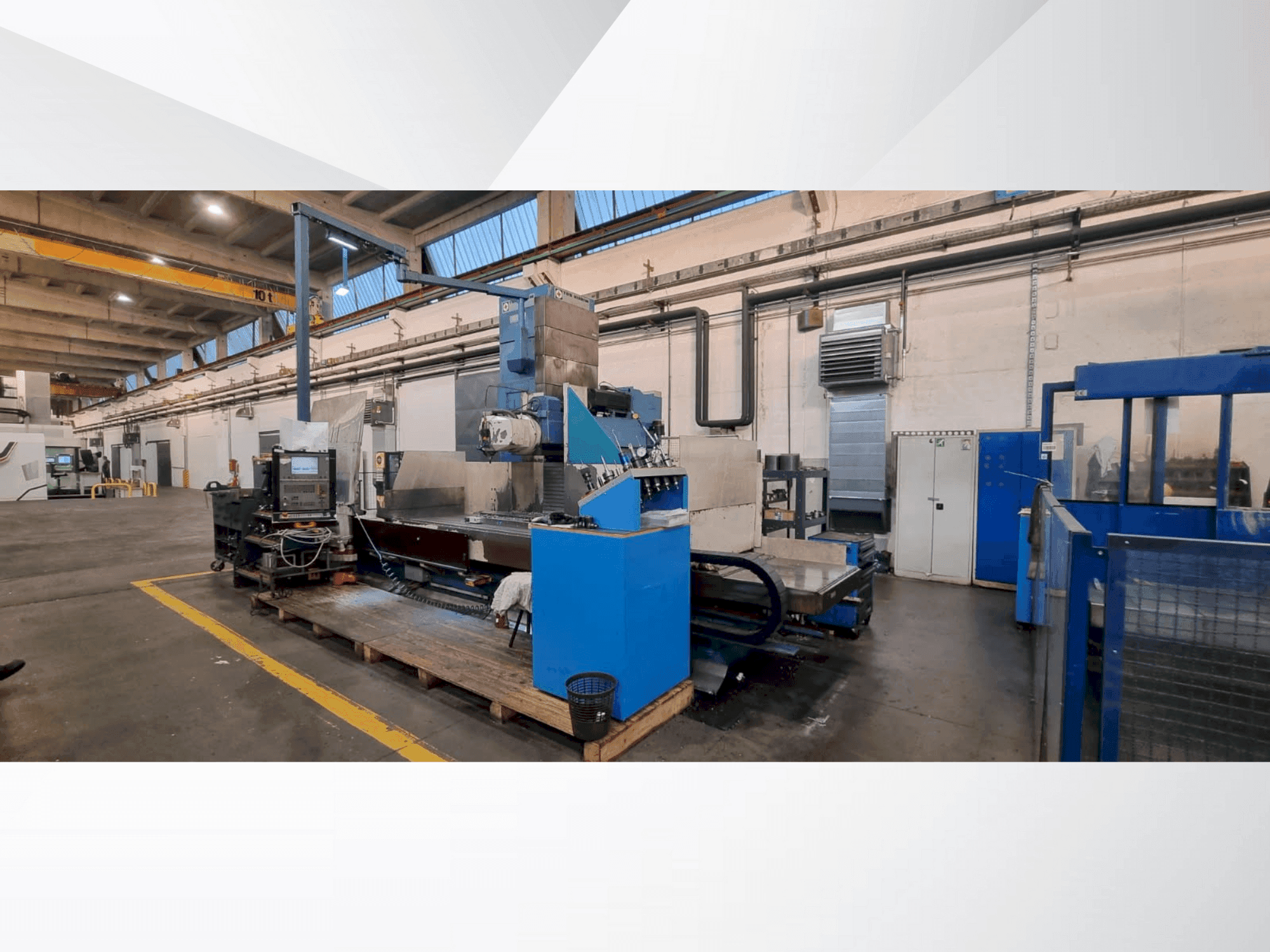

Front view of TOS KUŘIM FS 100 S/A3 machine
Front view of TOS KUŘIM FS 100 S/A3 machine

TOS - KUŘIM FS 100 S/A3SI-MIL-TOS-2002-00001

52,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis TOS KUŘIM FS 100 S/A3 vertical machining centre was manufactured in 2002. Consider the opportunity to buy this TOS KUŘIM FS 100 S/A3 vertical machining centre. Contact us for more information.

Overview

  • brand: TOS
  • year: 2002
  • MODEL: KUŘIM FS 100 S/A3
  • application type: Milling
  • Location: Slovenia
  • machine type: Vertical Machining Centre

Technical Information - TOS KUŘIM FS 100 S/A3

Movement

  • X-AXIS Movement: 3000 MM
  • Y-AXIS Movement: 1000 MM
  • Z-AXIS Movement: 1400 MM

    Additional Information

    Additional equipment

    • Additional Documentation: User manual available

    Machine Benefits

    Technical Machine Benefits

    • Feed rates: standard: 1 to 5000 mm/min / rapid traverse (y and z axes): 10 m/min/ feed rate: 12 m/min
    • Worktable: size: 1000 x 3000 mm / maximum workpiece weight: 7000 kg / number of t-slots: 7 / distance between t-slots: 140 mm / t-slot width: 22 mm / table height from the base (floor): 900 mm
    • Spindle: spindle taper: iso 50 / spindle diameter at the front bearing: 85 mm / minimum spindle distance from the worktable: 125 mm / maximum spindle distance from the worktable: 1775 mm / spindle speed: 16 to 3500 rpm (stepless)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
