➤ Used Yida MH-500 For Sale | gindumac.com

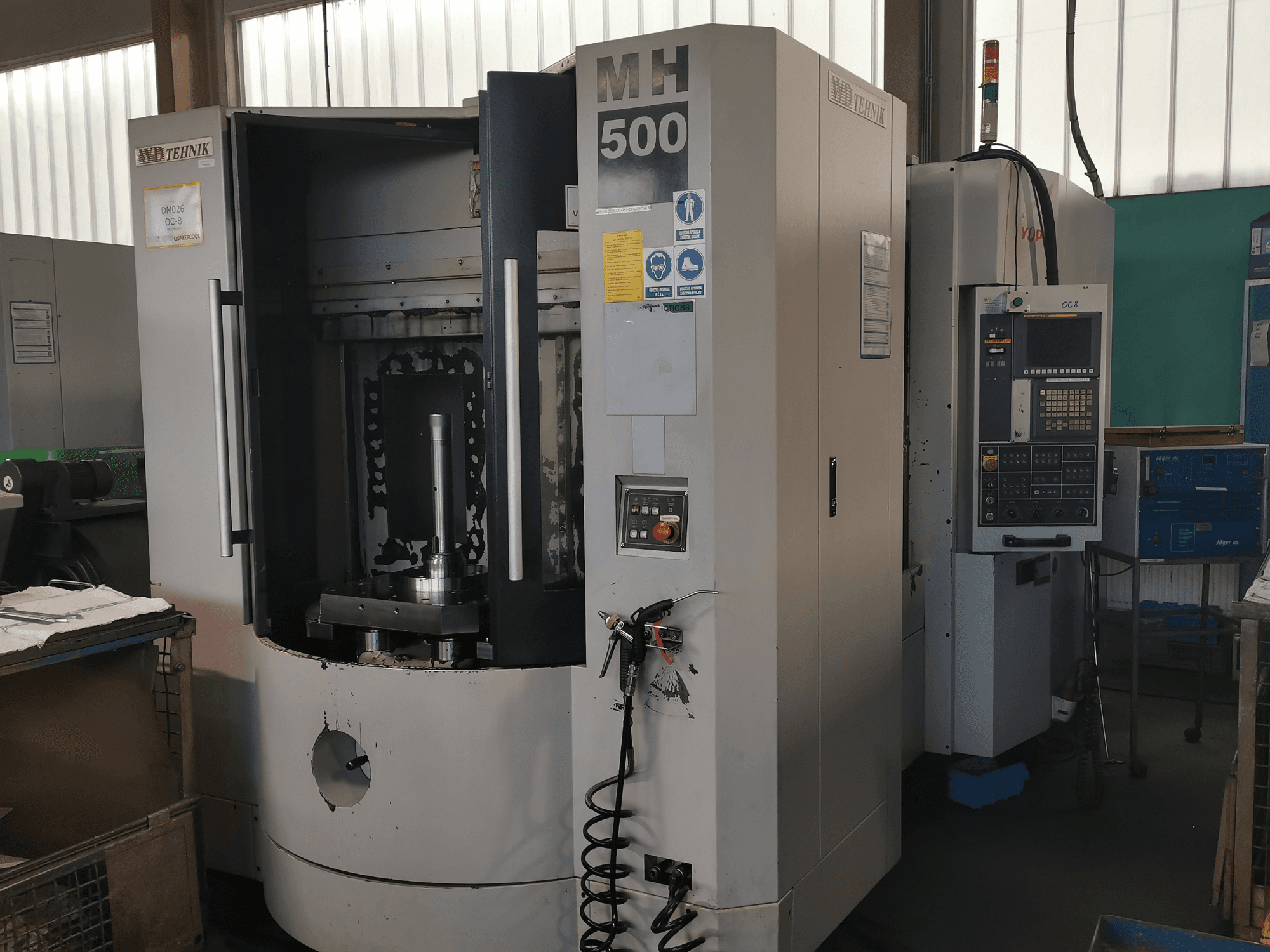

This 4-axis Yida MH-500 horizontal machining center was manufactured in 2009. It features a spindle speed of up to 10,000 rpm, a pallet size of 500 × 500 mm, and a tool magazine with a 40-tool capacity. Ideal for high-precision machining with its LM linear guideways and rapid traverse rates. If you are looking to get high-quality milling capabilities, consider the Yida MH-500 machine we have for sale. Contact us for more information about this machine.

Overview

brand: Yida
year: 2009
MODEL: MH-500
production hours: 18098
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre

Technical Information - Yida MH-500

Movement

X-axis Travel: 610 mm
Y-axis Travel: 510 mm
Z-axis Travel: 610 mm

Additional Information

Production Hours:
Power ON: 61604 hours
Operating time: 27145 hours
Cutting time: 18098 hours
Parts produced: 107438 pieces
Axes: 4
Machine Weight: 10275 kg
Voltage: 415 V
Frequency: 50 Hz
Current: 125 A
Power Requirement: 30 kVA
Air Requirement: 5 bar
Taper: ISO No. 40
Spindle diameter: Ø65 mm
Speed: 10000 rpm (optional 15000 rpm)
Spindle motor: 11 / 15 kW
Pallet size: 500 × 500 mm
Max. loading capacity: 450 kgf
Indexing: 0.001°
Number of pallets: 2
Pallet change time: 7–8 seconds
Pallet changer type: Swing arm type
Spindle nose to table center: 140–750 mm
Spindle center to table surface: 30–540 mm
Cutting feedrate: 1–8000 mm/min
Rapid traverse (X/Y/Z): 32000 mm/min
Slideways: LM linear guideways
Capacity: 40 tools (optional 60 tools)
Tool selection: Random
Tool taper: BT40 (optional CAT40)
Max. adjacent tool diameter: Ø76 mm (Ø80 optional)
Max. tool length: 280 mm
Max. tool weight: 7 kg
Servo motors (X/Y/Z): 4 kW
Servo motor (B-axis): 3 kW
Coolant pump motor: 1270 W
Hydraulic motor: 2.2 kW
Chip conveyor motor: 200 W
ATC motor: 430 W
Overall size: 3145 × 2552 × 3890 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
