TOS - Prima

2007

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

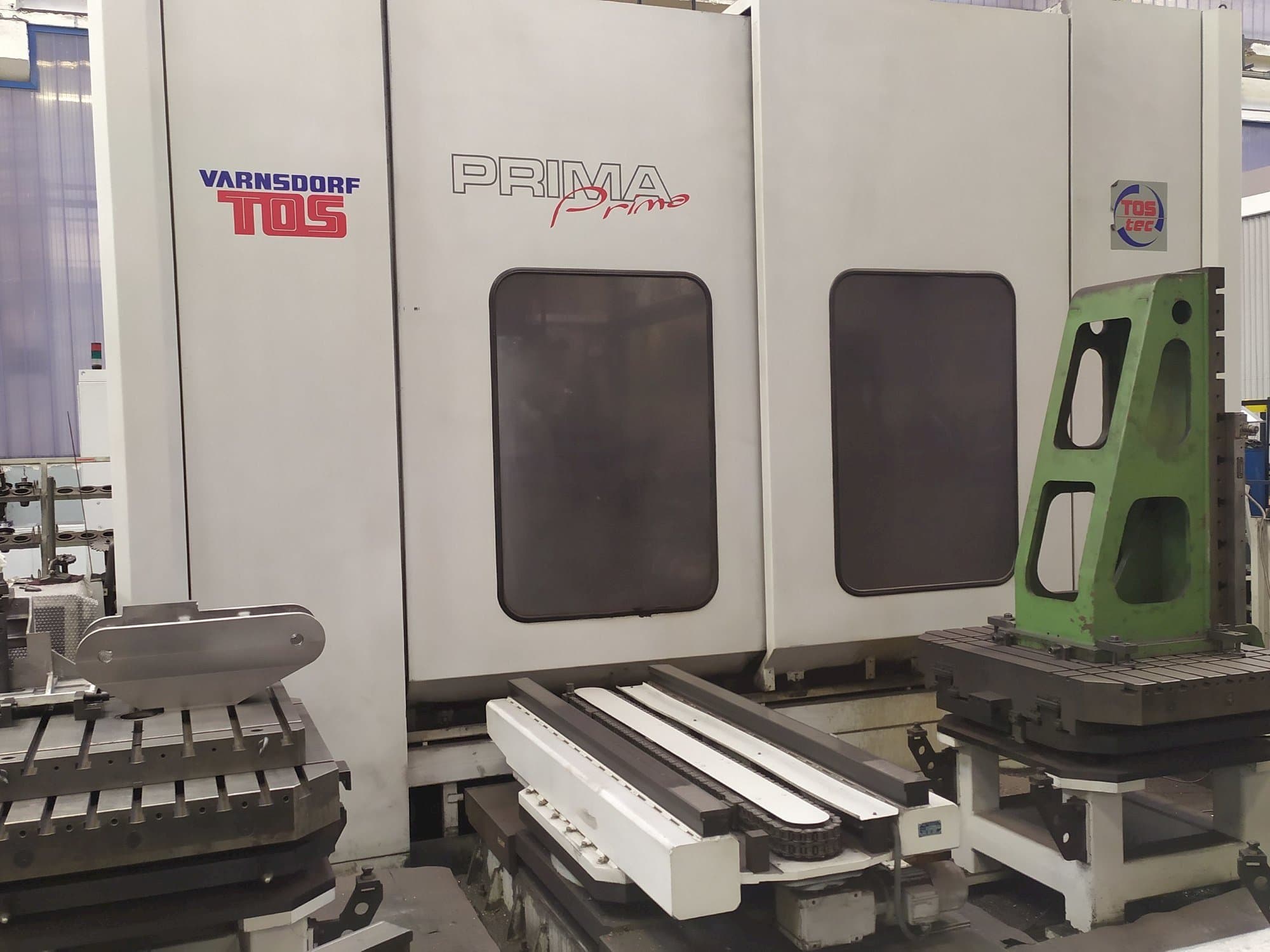

This TOS Prima horizontal machining center was built in 2007 in Czech Republic. It has a total of 65471 hours, of which 21744 are spindle hours. It is operated through a HEIDENHAIN iTNC 530 control unit. This 5 axis machine can perform with a spindle speed up to 5000 rpm and a work feed rate 20000 mm/min. It has been regularly maintained by TOS service only.

Overview

brand: TOS
year: 2007
MODEL: Prima
production hours: 65471
application type: Milling
Location: Czech Republic
machine type: Machining centers (horizontal)
availability: Sold
control unit brand: HEIDENHAIN
GINDUMAC ID: CZ-MIL-TOS-2007-00001

Technical Information

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Spindle motor power: 28/22 kW (S6-60%/S1)
Number of axis: 5

Movement

X-AXIS Movement: 2000 MM
Y-AXIS Movement: 1300 MM
Z-AXIS Movement: 1600 MM
W-Axis Movement: 500 mm

Workpiece

Workpiece weight: 4000 KG

Table

Outer length: 1250 MM
Outer width: 1000 MM
Number of tslots: 22H8
Distance between: 100 MM

Tools

Slots in storage: 40
Max weight: 25 KG
Max tool diameter: 125/320 MM
Type of tool holder: ISO 50 DIN 69871

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter 100 mm
- - Torque 874/1100 nm (s6/s1)
- - Work feedrate 20. 000 mm/min
- - Rapid feedrate 30. 000 mm/min
- - B axis (table) indexing 0. 001 degree
- - Through spindle coolant 30 bar
- - 5-pallet machining center
Qualitative Machine Benefits:
- - Very good condition
- - Regularly maintained by tos service only
- - New spindle bearings installed at 16. 000 hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
