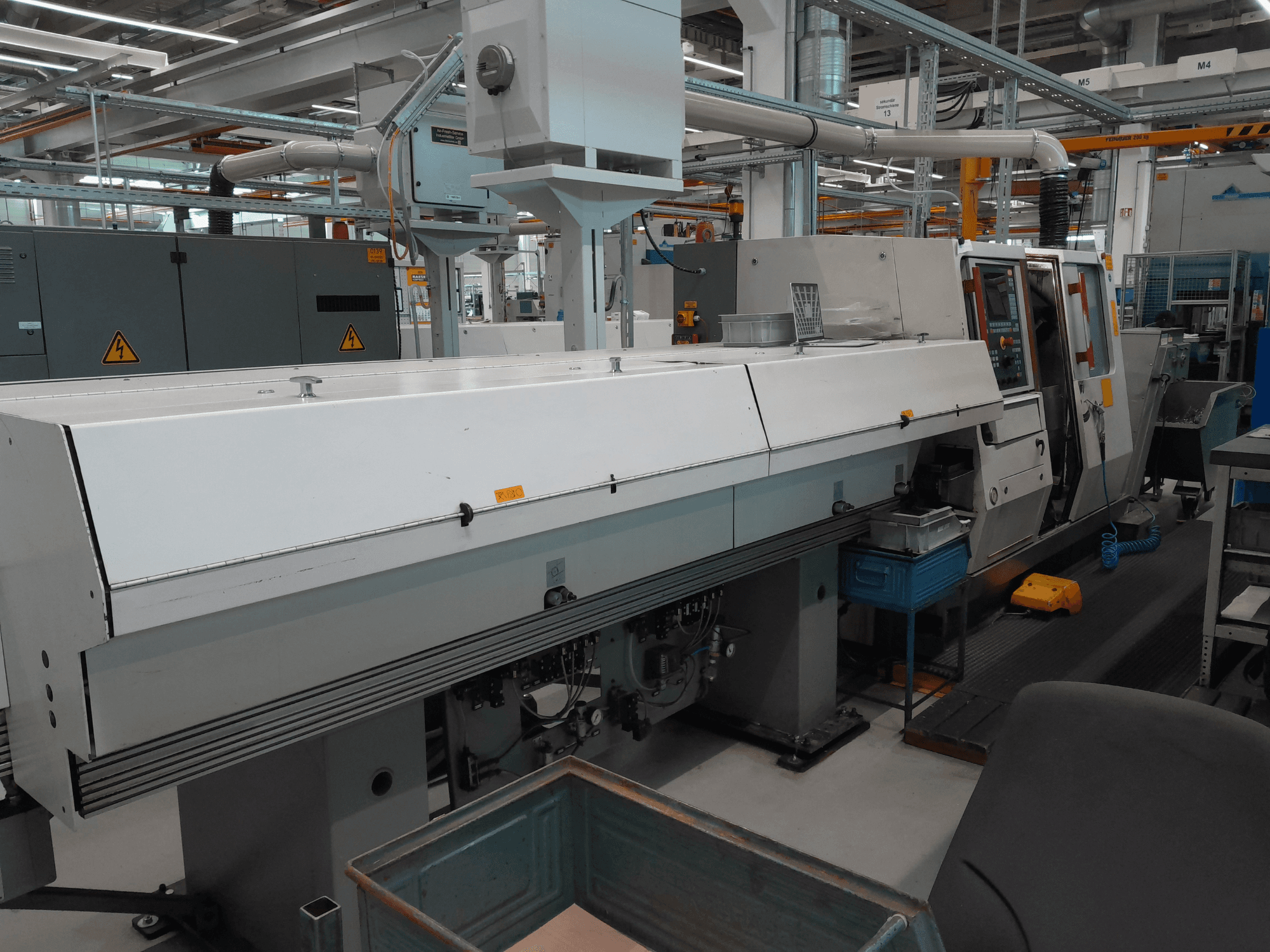

TRAUB - TNA 300DE-TUR-TRA-2000-00003

• Spindle bore / machine capacity: 65 mm

• Installed 185E collet system capacity: max. 60 mm clamping diameter

• Machine version: without tailstock

• Basic configuration: included

• Hydraulic hollow clamping cylinder: included

• High-pressure coolant system: 12 bar / 3 bar

• Control system: TX8H, 32-bit technology; processor latest generation (at time of build); parameter data on diskette

• Axes/functions:

  • C-axis: included (numerically controlled spindle positioning and turning axis)

  • Y-axis: not included

  • Driven tools: included; power 4 kW

• Monitoring and safety:

  • Tool breakage monitoring: included

  • Tool wear monitoring: included

  • Automatic drive shutdown after material end: selectable via parameter

  • Error message via parameter: selectable

  • Guideway cover: included

• Workholding:

  • Collet clamping system: ROHM

  • Collet system compatibility:

    • DIN 6343 size 48, max diameter 42 mm

    • Rubberflex series 52 compatible

    • Rubberflex series 36 compatible

    • Fahrion collet FM 1149 MB compatible

    • Fahrion collet FM 1148 MB compatible

• Electrical:

  • Electrical system according to: VDE / EN 60204

  • Operating voltage: 400 V / 50 Hz

  • Accessory voltage: 230 V / 50 Hz

  • Control voltage: 24 V DC

  • Multi-voltage transformer: 460 / 400 / 380 / 220 / 200 V

• EMC:

  • Compliance: industrial class A

  • Standards: EN 50081 / EN 50082 / EN 55011 / EN 55022

• Machine standards: DIN EN 292; DIN EN 294; DIN EN 418; DIN EN 60204-1

• Pneumatic system: Mannesmann Rexroth ISO

Additional equipment

• Chip conveyor: included

• Workpiece removal device: included; via conveyor, left side discharge

• Bar feeder preparation: included

• Bar feeder: TRAUB DNH 61-3000 (automatic)

  • Feeding: telescopic pusher system

  • Bar shapes: round / hexagonal / square

  • Maximum bar length: 3200 mm

  • Maximum bar diameter (long bars): 63 mm

  • Maximum bar diameter (short pieces): 65 mm

  • Automatic bar change: included

  • Residual piece removal: forward

  • Central adjustment of bar diameter: included

  • Stepless feed force adjustment: included

  • Central magazine adjustment: included

  • No guide channel change required

  • No clamping sleeve change required

  • Short remnant pieces possible

  • Transverse loading system

  • Transport weight: approx. 2100 kg
