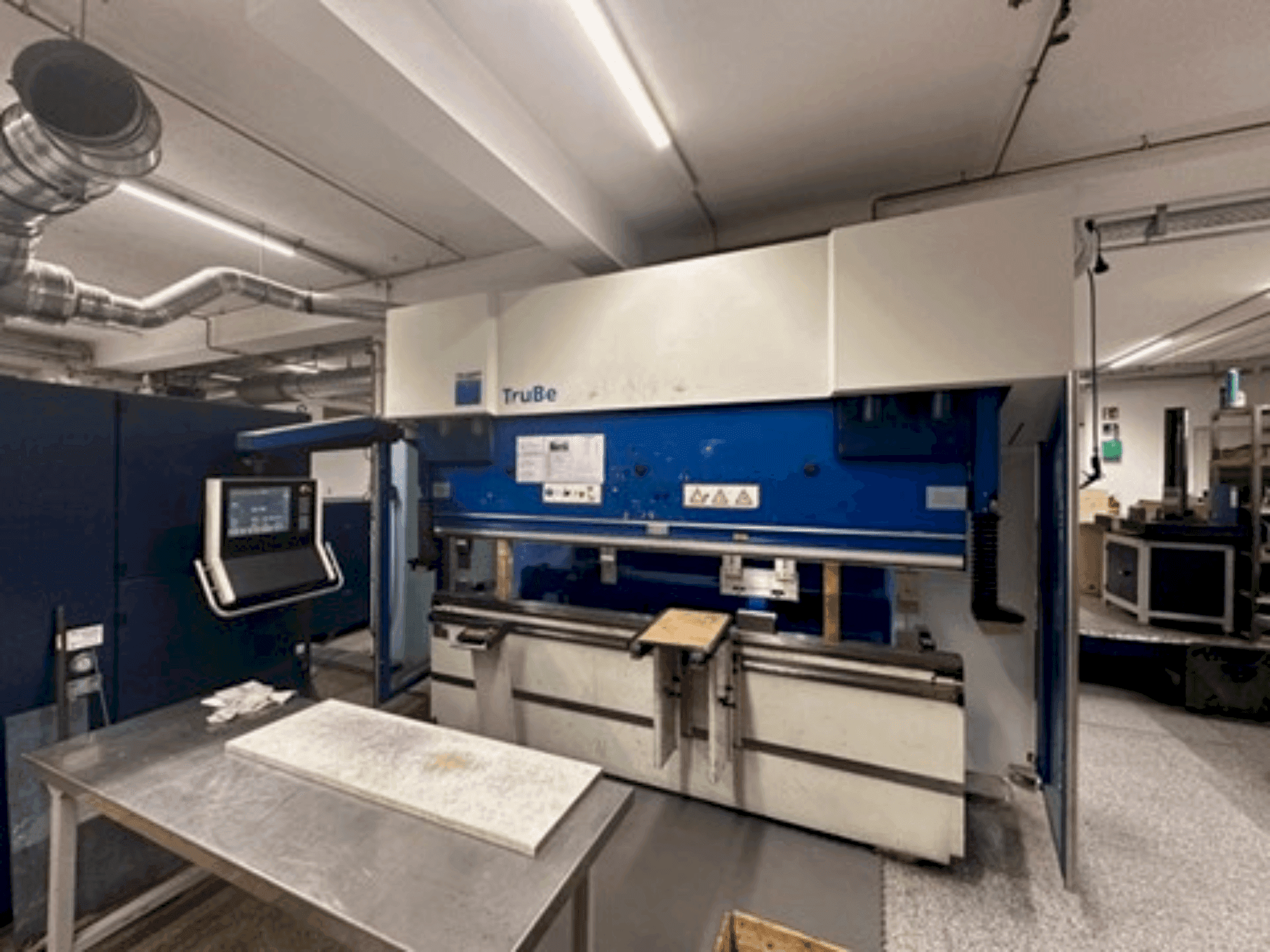

This 5-axis TRUMPF TruBend 5170 press brake was manufactured in 2008. It features a press force of 1700 kN and a bending length of 3230 mm. The machine dimensions include a width between columns of 2690 mm and a usable open height of 615 mm. Weighing 12200 kg, it's robust and reliable for precise bending tasks. If you are looking to get high-quality bending capabilities, consider the TRUMPF TruBend 5170 machine we have for sale. Contact us for more information.
Overview
- brand: TRUMPF
- year: 2008
- MODEL: TruBend 5170
- production hours: 68896
- application type: Bending
- Location: Germany
- machine type: Press Brake
- availability: Sold
- control unit brand: Trumpf
Technical Information - TRUMPF TruBend 5170
General Data
- Measurements width: 1900 mm
- Measurements depth: 3980 mm
- Measurements height: 3000 mm
- Machine weight: 12200 kg kg
Control Unit
- Brand: Trumpf
- Model: B03
Main drive
- Pressing force: 1700 kN
- Stroke: 445 mm
- Number of axis: 5
Media
- Air pressure: 6 bar
Additional Information
- Technical Machine Benefits:
- - Remark: machine will be sold because space is needed.
- - Operating pressure (Üzemi nyomás): 300 bar
- - Cycle time (Ütemtartó idő): 95 ms
- - Voltage (feszültség): 3x400 v
- - Nominal current (névleges áram): 41. 0 a
- - Frequency (frekvencia): 50 hz
- - Connection power (csatlakozási teljesítmény): 28. 0 kva
- - Control voltage (vezérzési feszültség): 24 v
- - Machine on: 68896. 3 hrs. , hydraulics on: 38581. 5 hrs. , press beam running time: 4906. 8 hrs.
- Qualitative Machine Benefits:
- - Safety distance (biztonsági szama): 190 mm
- - At 220 mm/s speed: 10 mm
- - At 160 mm/s speed: 3 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
