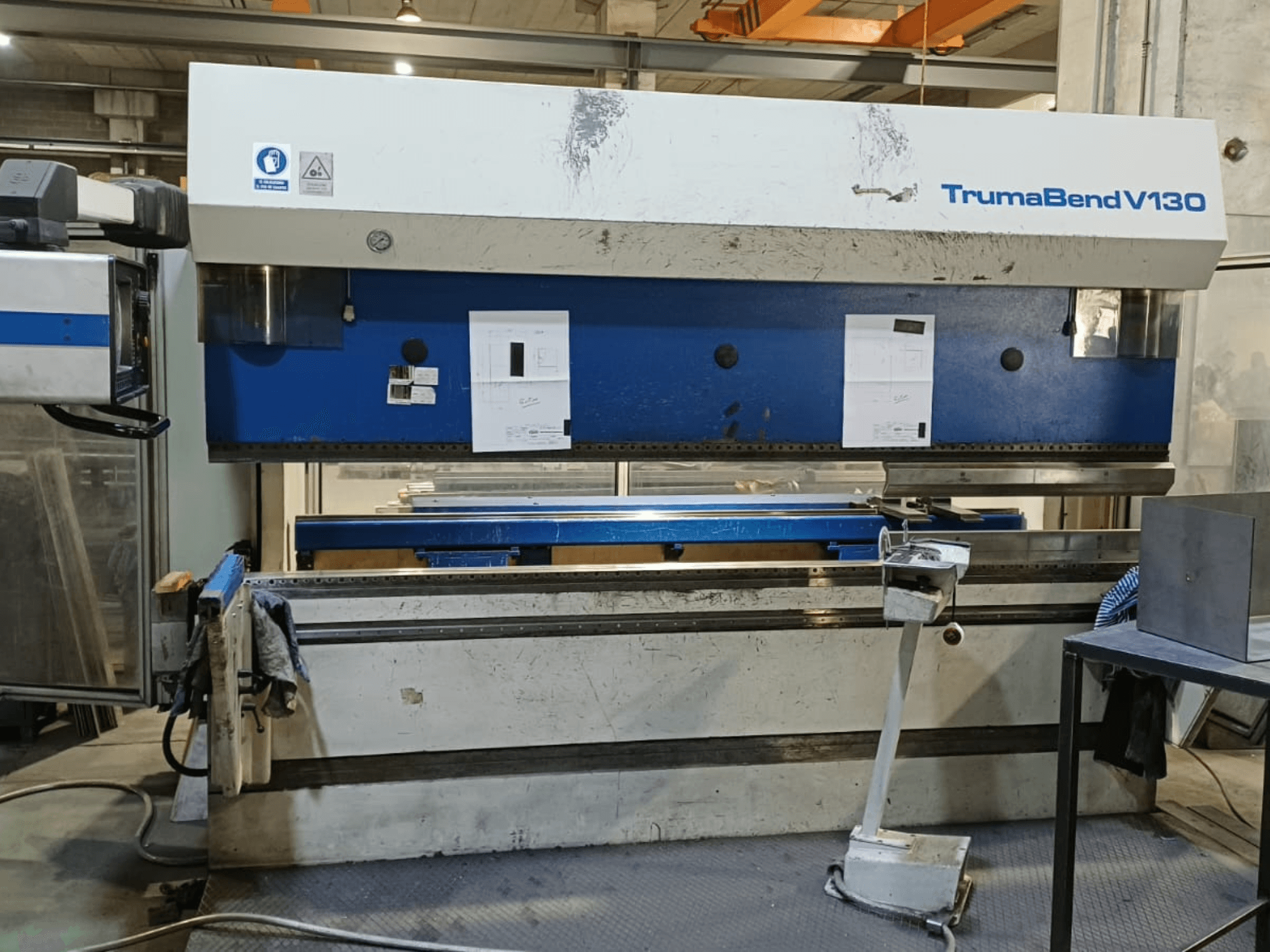

This 4-axis TRUMPF Trumatic Trumabend V130 was manufactured in 1998. It features a press force of 1300 kN and a bending length of 3060 mm. The machine has a weight of 10,650 kg and a throat depth of 410 mm. If you are looking to get high-quality bending capabilities, consider the TRUMPF Trumatic Trumabend V130 press brake we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 1998
- MODEL: Trumatic Trumabend V130
- application type: Bending
- Location: Spain
- machine type: Press Brake
Technical Information - TRUMPF Trumatic Trumabend V130
Dimensions
- Machine Height: 2690 mm
- Machine Weight: 10650 kg
- Machine Width: 3640 mm
Movement
- Number of Axes: 4
- X-axis Travel: 600 mm
- Z-axis Travel: 2310 mm
Technical Specification
- Bending Length: 3060 mm
- Pressing Force: 1300 Kn
Additional Information
Distance between columns: 2,690 mm
Throat: 410 mm
Table width: 120 mm
Mounting height: 385 mm (standard) / 535 mm (extended height)
Working height: 1,050 mm
Y-axis:
Rapid speed: 200 mm/s
Working speed: 1–10 mm/s
Return speed: 135 mm/s
Stroke: 215 mm (standard) / 365 mm (extended height)
Positioning accuracy: 0.01 mm
X-axis:
Max gauge range: 860 mm
Travel: 600 mm
Positioning accuracy: 0.04 mm
Feed rate: 500 mm/s
R-axis:
Travel: 250 mm
Positioning accuracy: 0.08 mm
Feed rate: 300 mm/s
Z-axis:
Travel: 2,310 mm
Positioning accuracy: 0.06 mm
Feed rate: 1,000 mm/s
Electrical system power: 18.7 kW
Pneumatic system pressure: 6 ± 1 bar
Hydraulic oil capacity: not specified
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
