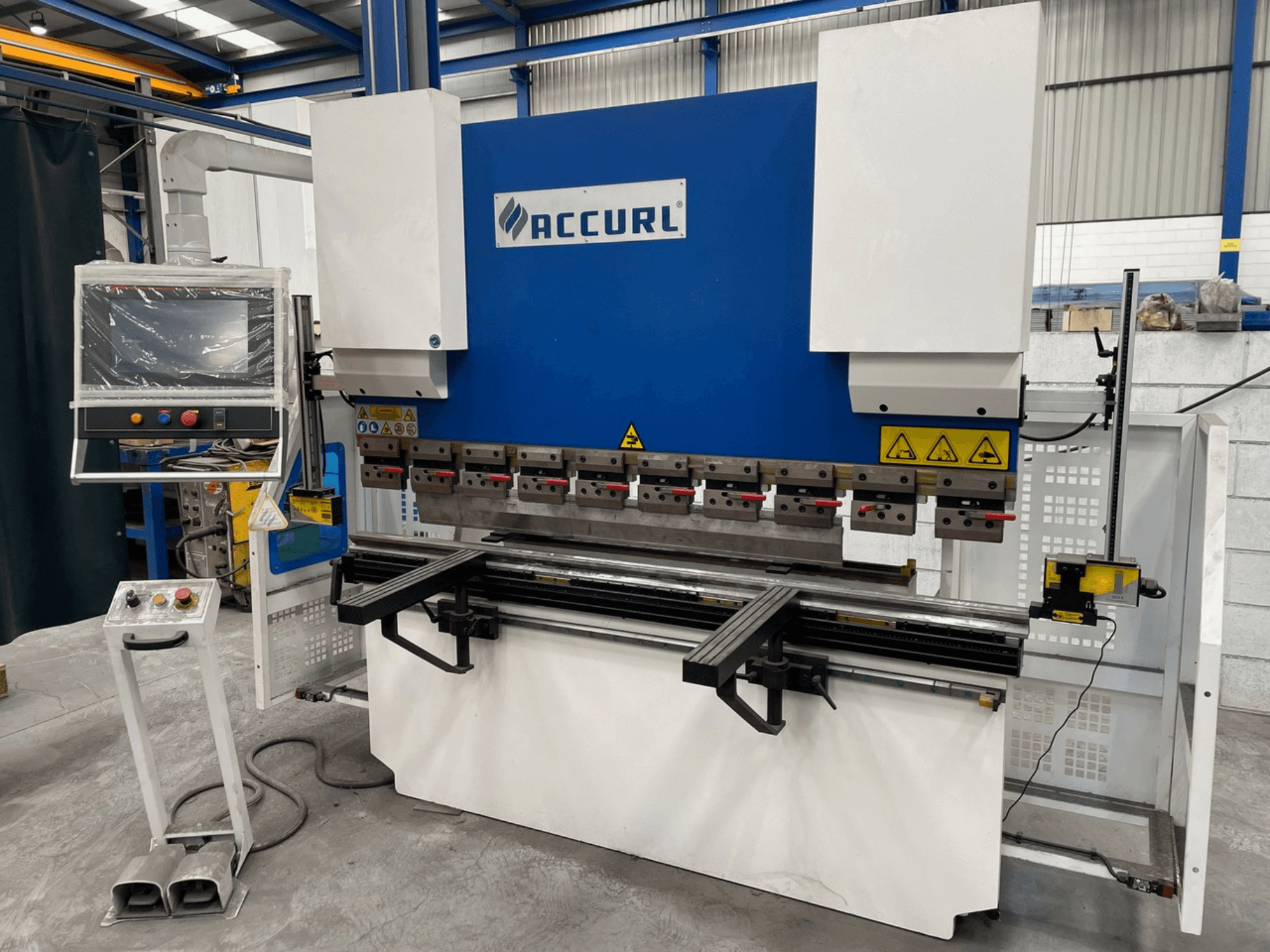

ACCURL M37-63Tx2000 press brake in front view with control panel, safety features, and bending tools visible.
ACCURL M37-63Tx2000 press brake in front view with control panel, safety features, and bending tools visible.

ACCURL - M37-63Tx2000ES-BEN-ACC-2021-00001

22,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis ACCURL M37-63Tx2000 was manufactured in 2021. It features a maximum press force of 630 kN and a working length of 2000 mm, making it suitable for various bending applications. The machine has a rapid approach speed of 100 mm/s and a working speed of 8.0 mm/s. If you are looking to get high-quality bending capabilities, consider the ACCURL M37-63Tx2000 press brake we have for sale. Contact us for further details.

Overview

  • brand: ACCURL
  • year: 2021
  • MODEL: M37-63Tx2000
  • application type: Bending
  • Location: Spain
  • machine type: Press Brake

Technical Information - ACCURL M37-63Tx2000

Dimensions

  • Machine Weight: 3500 kg

Movement

  • Number of Axes: 3

Technical Specification

  • Bending Length: 1300 mm
  • Max. Stroke: 100 mm
  • Pressing Force: 2000 Kn

Additional Information

  • Rapid approach speed: 100 mm/s

  • Working speed: 8.0 mm/s

  • Return speed: 80 mm/s

  • Power of main motor: 5.5 kW

  • Total connected load: 6.5 kW

  • Operating voltage: 400 V AC

  • Frequency: 50 Hz

  • Control voltage: 24 V DC

  • Nominal current fuse: 12.4 A

  • Oil tank capacity: 120 L

  • Max. operating pressure: 240 bar

  • Number of axes: 3 (Y1, Y2, X)

  • X-axis backgauge travel: 500 mm

  • X-axis positioning accuracy: ±0.02 mm

  • R-axis travel: 150 mm

  • Throat depth: 320 mm

  • Distance between uprights: 1600 mm

  • Table width: 60 mm

  • CNC control system: DELEM DA-53T

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
