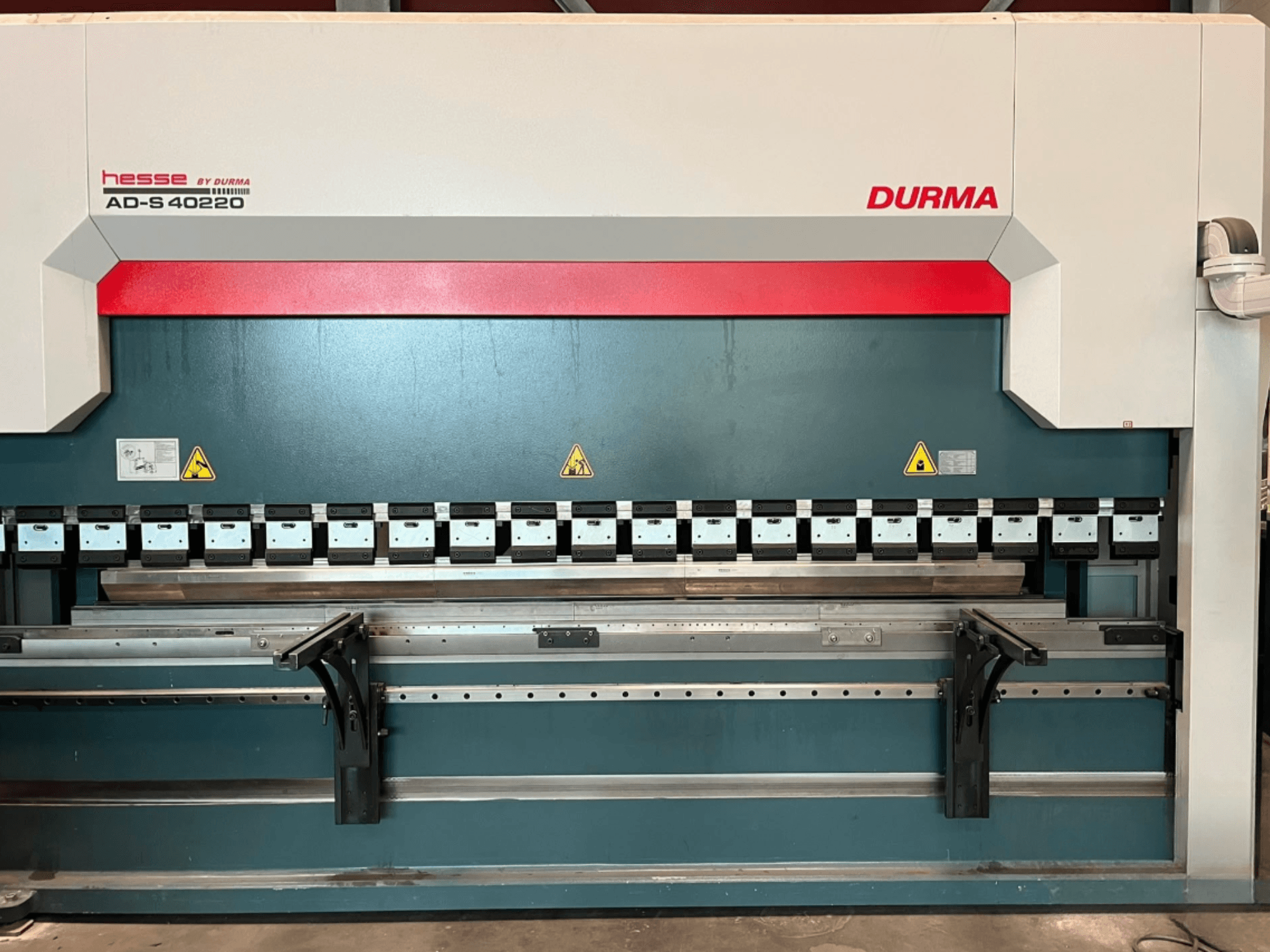

Durma - AD-S 40220AT-BEN-DUR-2026-00001

- Pressing Force: 220 metric tons

- Distance Between Columns: 3600 mm

- Bending Stroke: 265 mm

- Installation Height: 530 mm

- Side Column Overhang: 450 mm

- Controlled Axes: 3 axes (Y1, Y2, X)

- CNC Control Unit: DT-15 CNC CONTROL (15" 2D graphic display, touchscreen, USB ports, PC software, graphical product/tool memory)

- Backgauge Drive System: Servo-motor-driven backgauge on linear guides and ball screws

- Backgauge Finger Blocks: Double linear guides

- Backgauge X-axis Speed: 500 mm/s

- Backgauge R-axis Speed: 350 mm/s

- Backgauge R-axis Travel: 250 mm

- Axis Position Accuracy: 0.01 mm

- Y-axis Rapid Traverse: 160 mm/s

- Y-axis Working Speed: 10 mm/s

- Y-axis Retraction Speed: 140 mm/s

- Hydraulic Drive System: Yes

- Main Motor Power: 22 kW

- Operating Voltage: 400 V

- Control Voltage: 24 V

- Main Fuse Current / Rated Current: 100 A

- Frequency: 50 Hz

- Short Circuit Breaking Capacity: 10 kA

- Oil Tank Capacity: 250 L

- Table Height: 900 mm

- Table Width: 104 mm

- Safety System: Fiessler AKAS laser safety device mounted on the upper beam

- Crowning: CNC-controlled crowning

- Upper Tooling: Upper die 1010/A/75°, split and offset

- Lower Tooling: 4-V die block 60x60 2009 (V = 16, 22, 35, and 50 mm)

- Support Arms: Sheet metal support arms on linear guides

- Compliance: CE compliant
