- ➤ Used TRUMPF TruLaser 5030 (L56) - 2015 - Laser cutter

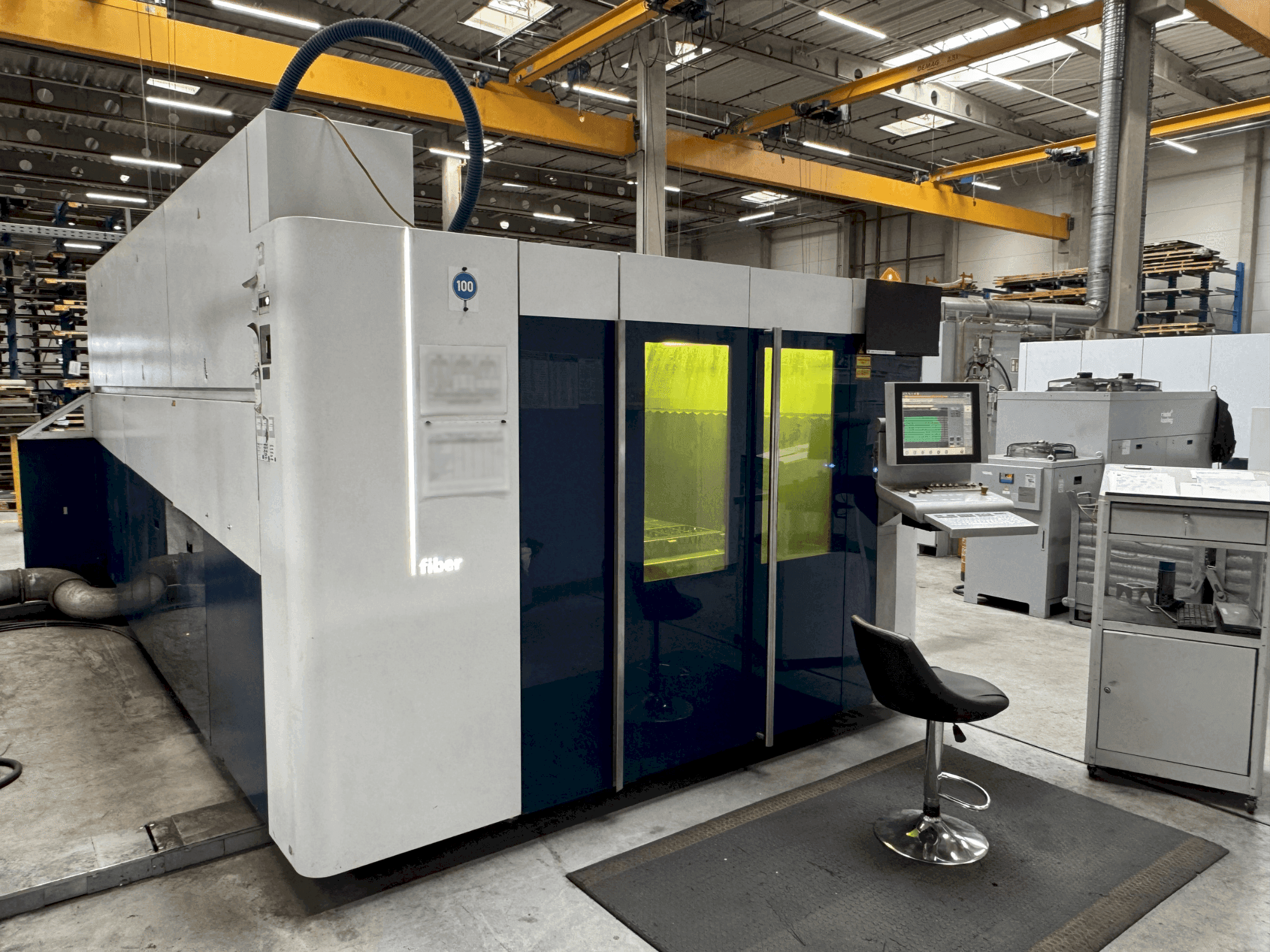

The TRUMPF TruLaser 5030 (L56) fiber 5kW, manufactured in 2015, is a precise and efficient laser cutter. Its 3-axis system handles work dimensions of 3000 x 1500 x 115 mm. Powered by a 5000 Watt TruDisk 5000 fiber laser, it achieves high-speed cuts up to 265 m/min. The machine, measures 8800 x 4800 x 2400 mm. It is controlled by a Siemens Sinumerik 840 D for accuracy and ease of use. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2015
- MODEL: TruLaser (L56) fiber
- application type: Laser Cutting
- Location: Poland
- machine type: Fiber laser cutting machines
- availability: Immediately
- control unit brand: Siemens
Technical Information - TRUMPF TruLaser (L56) fiber
General Data
- Measurements width: 4800 mm
- Measurements depth: 8800 mm
- Measurements height: 2400 mm
- Machine weight: 12000 kg
Control Unit
- Brand: Siemens
- Model: Sinumerik 840 D
Main drive
- Laserpower: 5000 Watt KW
- Laser type: TruDisk 5000 fiber
- Number of axis: 3
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 115 mm
Additional Information
- Technical Machine Benefits:
- - High-speed operation with a maximum speed of 265 m/min ensures rapid processing times.
- - Advanced siemens sinumerik 840 d control system provides precise and efficient control over cutting operations.
- Qualitative Machine Benefits:
- - High precision and clean cuts due to the powerful trudisk 5000 fiber laser with a rated output of 5000 watt.
- - Large working area (3000 x 1500 x 115 mm) allows for processing of large sheets, enhancing productivity.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
