➤ Used TRUMPF TruLaser 1030 For Sale | gindumac.com

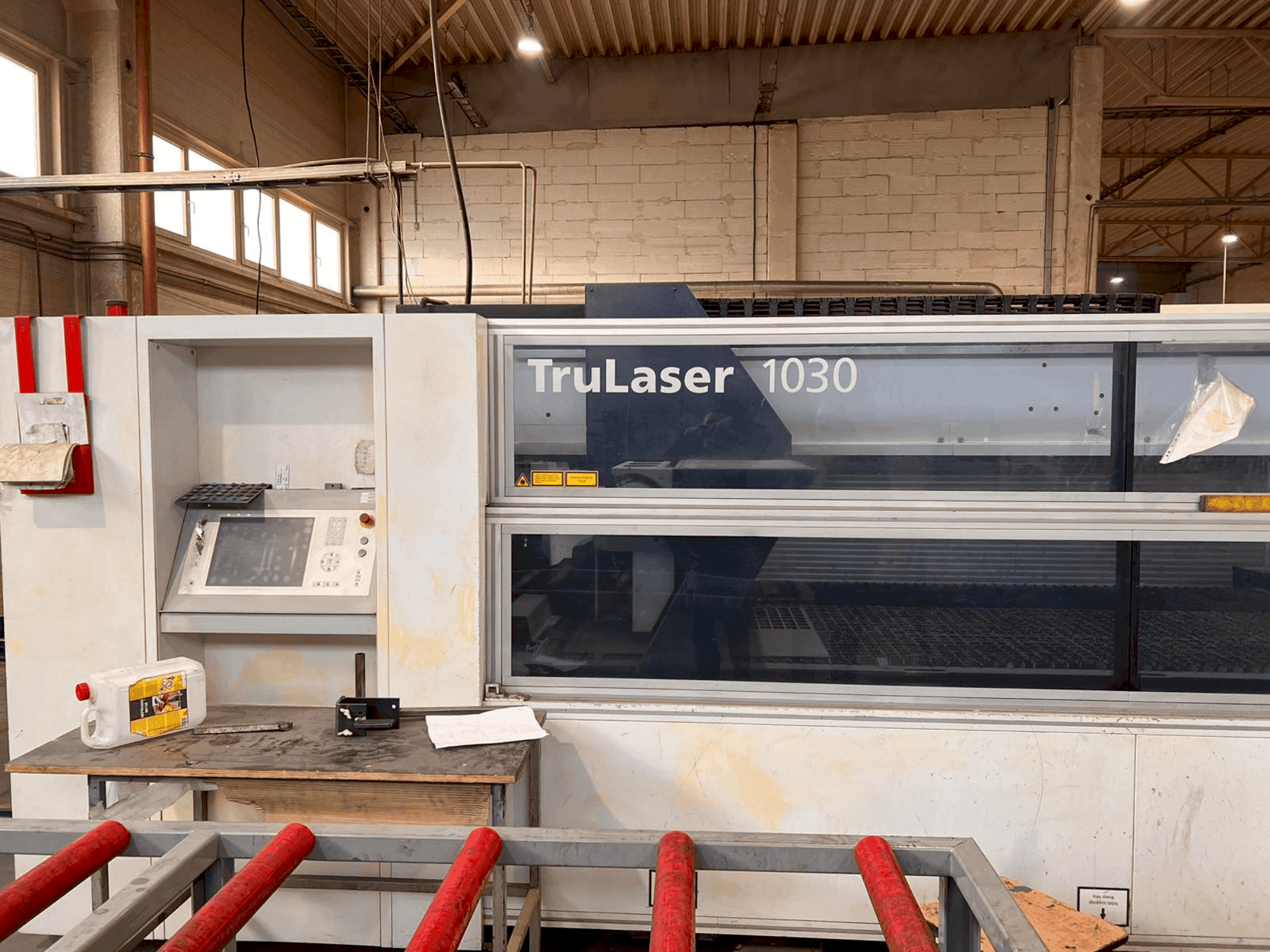

This 3-axis TRUMPF TruLaser 1030 was manufactured in 2011, featuring a robust fiber laser, TruDisk 2001, with a 2 kW output and a maximum material thickness capacity for mild steel at 25.0 mm. It operates with a SIEMENS SINUMERIK 840D control and can handle a maximum workpiece weight of 720 kg. If you are looking to get high-quality cutting capabilities, consider the TRUMPF TruLaser 1030 machine we have for sale. Contact us for more information.

Overview

brand: TRUMPF
year: 2011
MODEL: TruLaser 1030
production hours: 24000
application type: Cutting
Location: Lithuania
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 1030

General Data

Measurements width: 2800 mm
Measurements depth: 7800 mm
Measurements height: 2900 mm
Machine weight: 10400 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Number of axis: 3

Workpiece

Workpiece weight: 720 kg

Max Material thickness

Stainless steel: 8.0 mm
Aluminum: 6.0 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Laser output: 2 kw
- - Laser type: fiber trudisk 2001
- - Beam on working: 30000 hours
- - Electric consumption entire unit: 11 kw
- - Control: siemens sinumerik 840d, b&r automation pc 620
- - Simultaneous positioning speed: 85 m/min (x+y)
- - Working area (x x y x z): 3000 x 1500 x 75 mm
- - Brass: 3. 0 mm
- - Copper: 3. 0 mm
- - Mild steel: 25. 0 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
