- ➤ Used Trumpf Trulaser 3030 - 2007 - Laser Cutting Machine for sale | gindumac.com

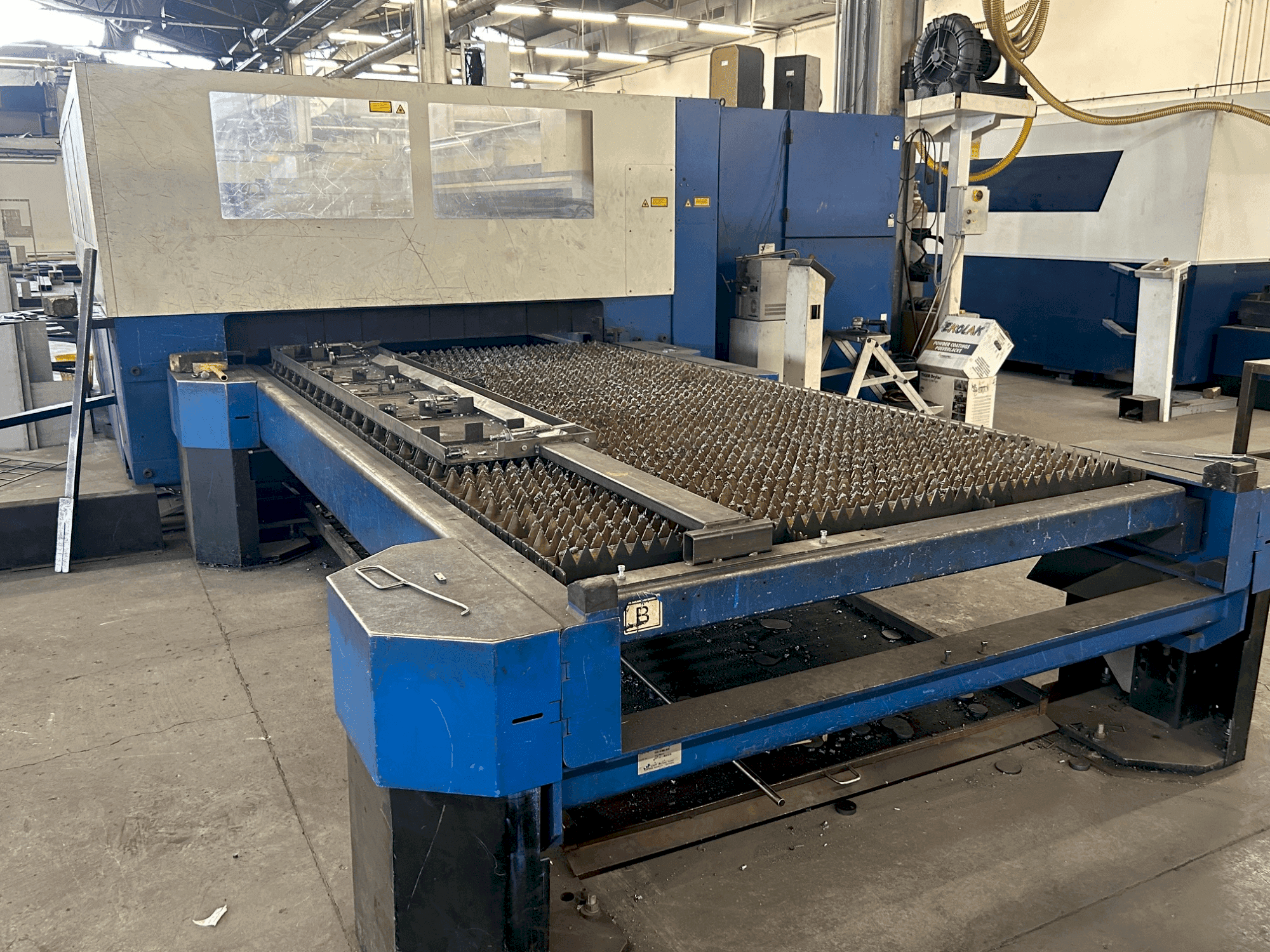

This TRUMPF trulaser 3030 laser cutting machine was manufactured in 2007. It offers a consistent laser power of 3200 W with the ability to handle cutting thicknesses up to 20 mm for steel, and includes efficient waste transportation. The working area spans dimensions of 3000 mm in the X-axis, 1500 mm in the Y-axis, and 115 mm in the Z-axis. The machine also features two interchangeable tables and an additional rotary head for tubes and profiles. For more information about this TRUMPF Trulaser 3030, please reach out to us.
Overview
- brand: TRUMPF
- year: 2007
- MODEL: trulaser 3030
- application type: Laser Cutting
- Location: Slovenia
- machine type: Laser Cutting Machines (CO2)
- availability: Immediately
Technical Information - TRUMPF trulaser 3030
General Data
- Machine weight: 11500 kg
Controller
- Brand: Siemens
- Model: Sinumerik 840D
Main drive
- Laserpower: 3200 W KW
- Number of axis: 3
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 115 mm
Max Material thickness
- Steel: 20 mm
- Stainless steel: 12mm
- Aluminum: 8mm
Additional Equipment
- - Two interchangeable tables
- - Waste transporter
- - Regularly serviced by Mastro
- - Additional rotary head for cutting tubes and profiles
Additional Information
- Technical Machine Benefits:
- - Max cutting thickness: 20 mm
- - Laser power during continuous operation: 3200 w
- - Electrical connection: 74 kva
- - Max. Cutting dimension - sheet dimension 3000x1500 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
