- ➤ Used TRUMPF TruLaser 5030 Fiber (L56) - 2015 - Laser cutter

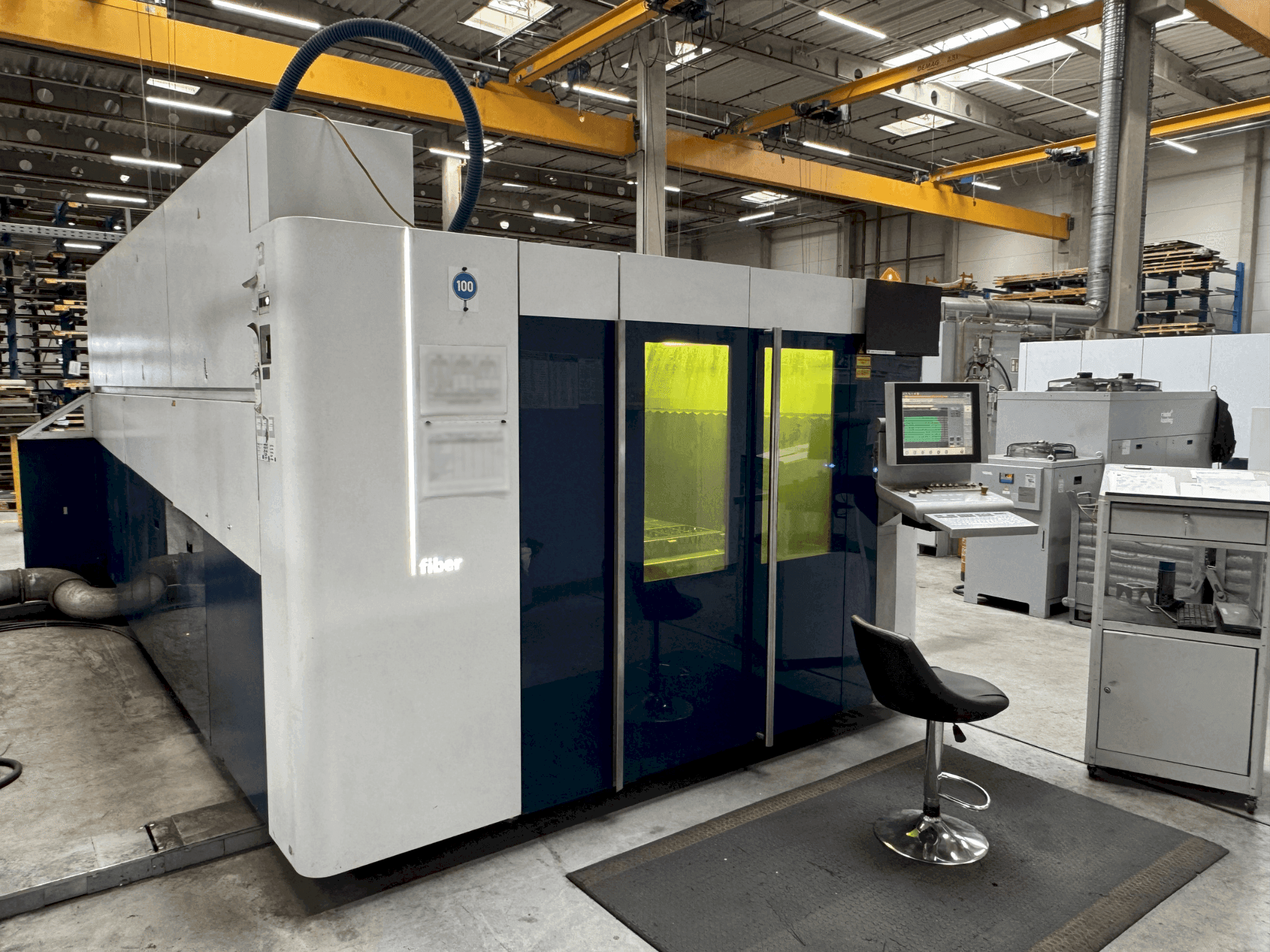

The TRUMPF TruLaser 5030 (L56) fiber 5kW, manufactured in 2015, is a precise and efficient laser cutter. Its 3-axis system handles work dimensions of 3000 x 1500 x 115 mm. Powered by a 5000 Watt TruDisk 5000 fiber laser, it achieves high-speed cuts up to 265 m/min. The machine, measures 8800 x 4800 x 2400 mm. It is controlled by a Siemens Sinumerik 840 D for accuracy and ease of use. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2015
- MODEL: TruLaser 5030 Fiber
- application type: Cutting
- Location: Poland
- machine type: Fiber Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser 5030 Fiber
General Data
- Measurements width: 4800 mm
- Measurements depth: 8800 mm
- Measurements height: 2400 mm
- Machine weight: 12000 kg
Control Unit
- Brand: SIEMENS
- Model: Sinumerik 840 D
Main drive
- Laserpower: 5000 Watt KW
- Laser type: TruDisk 5000 fiber
- Number of axis: 3
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 115 mm
Additional Information
- Technical Machine Benefits:
- - High-speed operation with a maximum speed of 265 m/min ensures rapid processing times.
- - Advanced siemens sinumerik 840 d control system provides precise and efficient control over cutting operations.
- - Working hours: 55377 h
- - Laser on: 40239 h
- - Maximum material thickness: mild steel: 25 mm/ stainless steel: 20 / 25 mm with brightline fiber/ aluminum: 20 / 25 mm with brightline fiber
- Qualitative Machine Benefits:
- - High precision and clean cuts due to the powerful trudisk 5000 fiber laser with a rated output of 5000 watt.
- - Large working area (3000 x 1500 x 115 mm) allows for processing of large sheets, enhancing productivity.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
