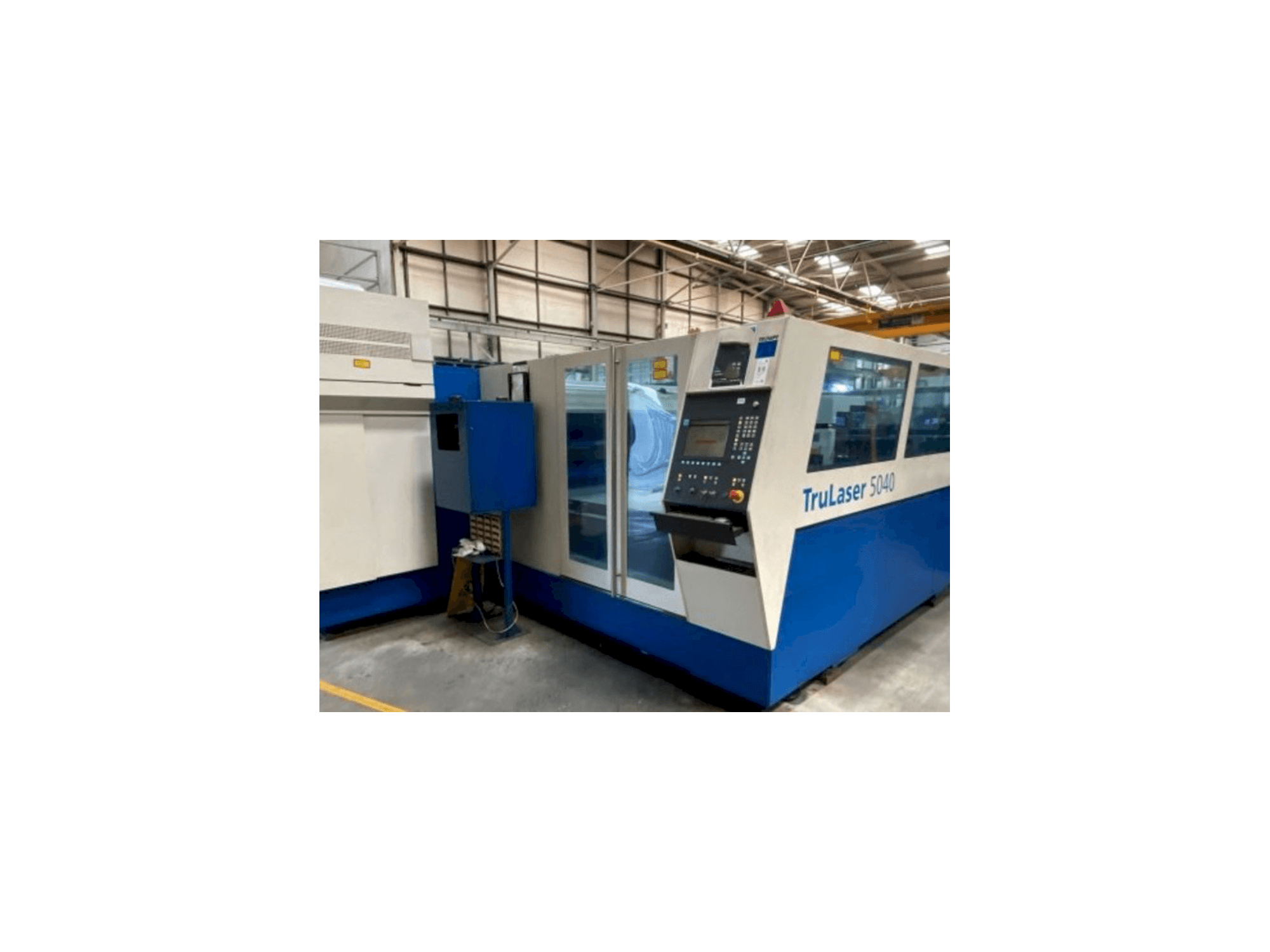

Front view of Trumpf TruLaser 5040 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser 5040

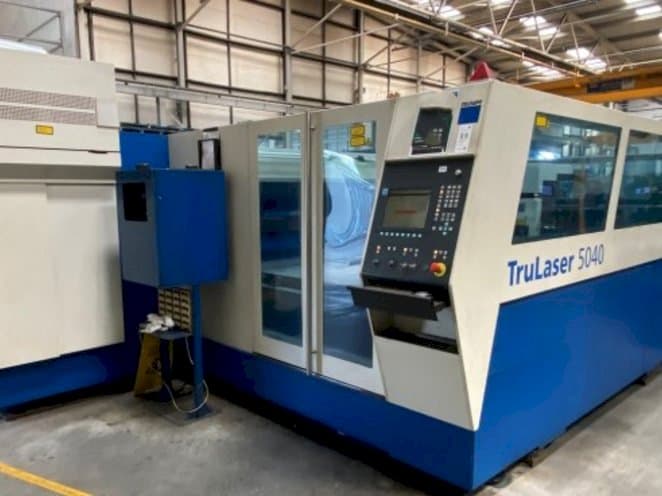

Photo Gallery

TRUMPF - TruLaser 5040IE-LAS-TRU-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf TruLaser 5040 Laser Cutting Machine

This Trumpf TruLaser 5040 Laser Cutting Machine was made in 2009 in Germany and has 28400 working hours. It is operated through a SIEMENS SINUMERIK 840D control unit. This machine has a laser power of 5kW, it includes a loadmaster and pallet changer.

Overview

brand: TRUMPF
year: 2009
MODEL: TruLaser 5040
production hours: 28400
application type: Cutting
Location: Ireland
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5040

General Data

Measurements width: 13000 mm
Measurements depth: 5400 mm
Measurements height: 2400 mm
Machine weight: 14000 kg

Control Unit

Model: Sinumerik 840D
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 5 kw

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 4000 mm
Workpiece y: 2000 mm
Workpiece weight: 1700 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Media

Main electronic connection: 400 V
Chip conveyor: Yes

Additional Information

Additional equipment

LoadMaster
Pallet Changer

Machine Benefits

Qualitative Machine Benefits

Last resonator maintenance: 2022
Very well maintained machine

Technical Machine Benefits

4m x 2m machine
High speed machine - trumpf 5000 series

Machine History

Industries

Agricultural

End product

Agricultural machinery parts

Material thickness

12 mm

Material type

Mild steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
