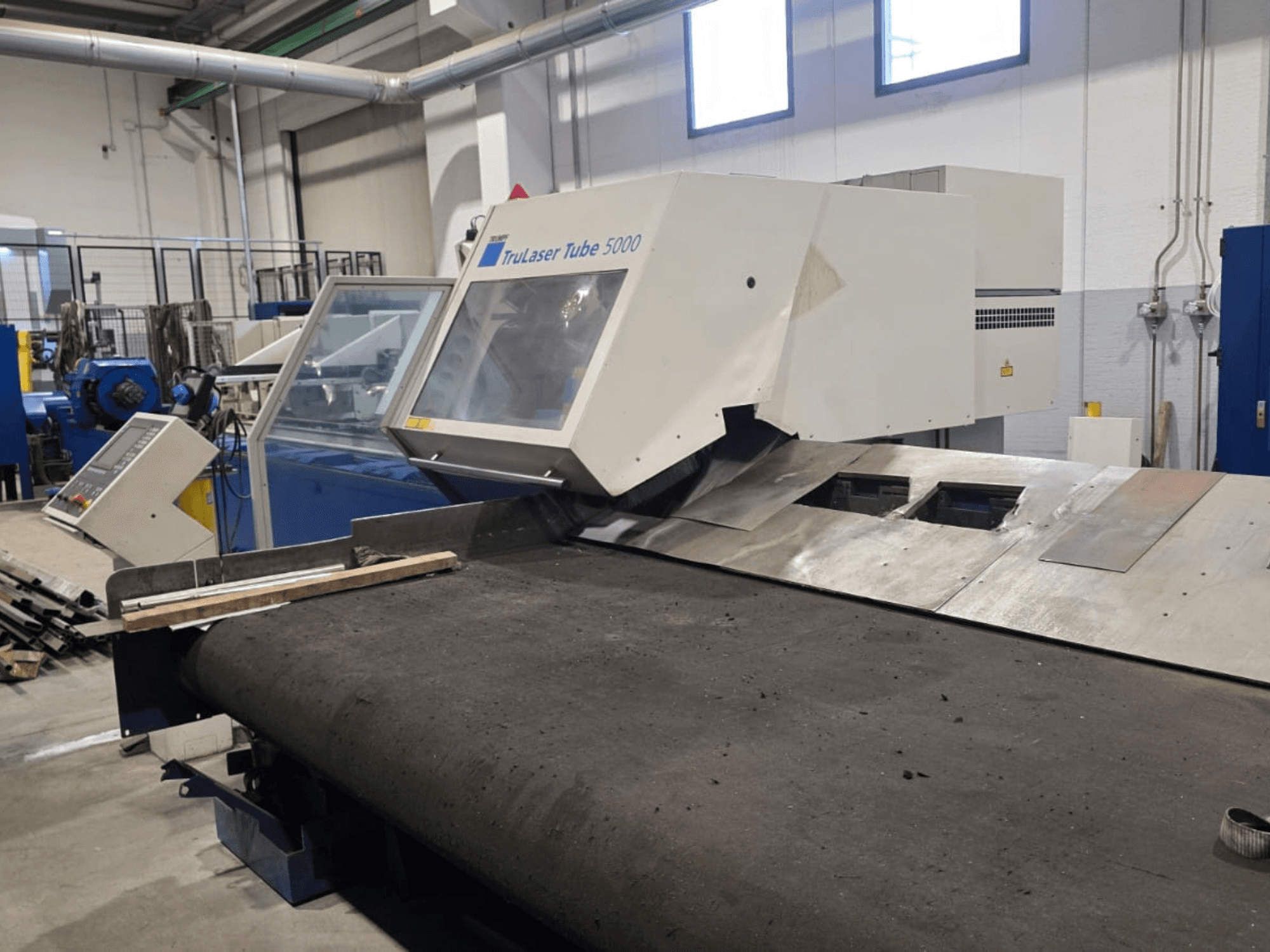

TRUMPF LASERTUBE 5000 tube cutting machine, viewed from the front, showcasing the cutting area and control panel.
TRUMPF LASERTUBE 5000 tube cutting machine, viewed from the front, showcasing the cutting area and control panel.

TRUMPF - TruLaser Tube 5000IT-CUT-TRU-2008-00001

40,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis TRUMPF TruLaser Tube 5000 was manufactured in 2008. It features a powerful CO₂ laser source with a laser power of 3.2 kW and a maximum X-axis travel of 7,100 mm. The machine includes an automatic bar loading and unloading system, enhancing efficiency. If you are looking to get high-quality tube cutting capabilities, consider the TRUMPF TruLaser Tube 5000 machine we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2008
  • MODEL: TruLaser Tube 5000
  • application type: Cutting
  • Location: Italy
  • machine type: Tube Cutting Machine

Technical Information - TRUMPF TruLaser Tube 5000

Movement

  • Number of Axes: 4
  • X-axis Travel: 7100 mm

Technical Specification

  • Laser Power: 3.2 kW

Additional Information

  • Max. tube diameter: Ø159 mm

  • Current status: Under power

  • Inspection/test: Available for visit and testing

  • Maintenance: Maintenance carried out by TRUMPF Italia

  • Known technical issue: Weld seam detection/control not working

Additional equipment

  • Automatic bar loading system

    • Automatic loading length: 2,000–6,500 mm

    • Maximum loadable bar length: 7,100 mm

  • Automatic unloading system

    • Unloading support length: 4,500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
