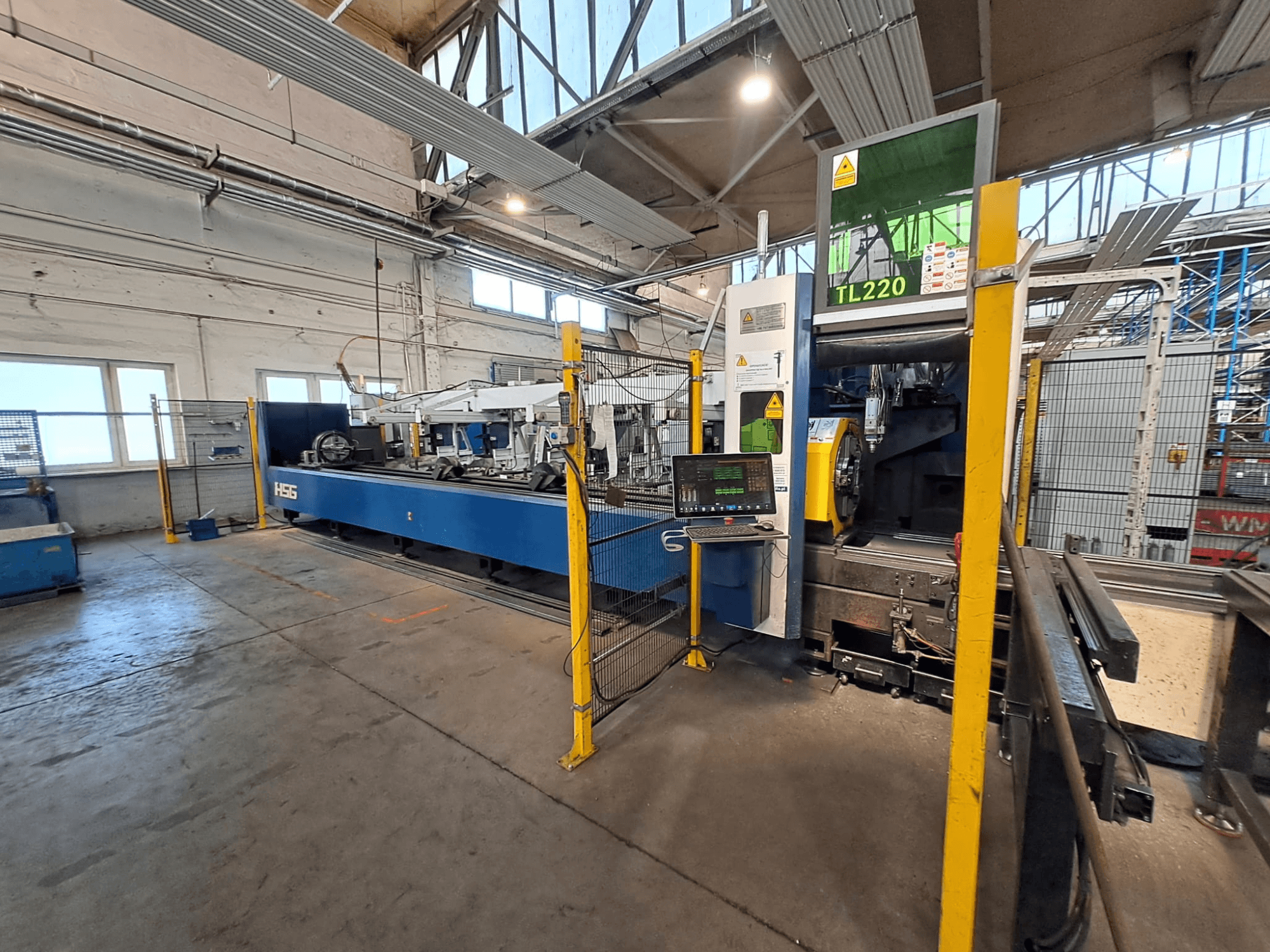

Front view of HSG HS-TL220 tube cutting machine with control panel and safety barriers in a factory setting.
Front view of HSG HS-TL220 tube cutting machine with control panel and safety barriers in a factory setting.

HSG - HS-TL220PL-CUT-HSG-2021-00001

200,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp

Tube cutting machine manufactured in 2021. This HSG HS-TL220 features a powerful 3000 W fiber laser and a maximum no-load speed of 110 m/min. It is capable of processing round tubes with diameters ranging from Ø20 to 210 mm and square tubes from 20 × 20 mm to 150 × 150 mm. If you are looking to get high-quality tube cutting capabilities, consider the HSG HS-TL220 machine we have for sale. Contact us for further details.

Overview

  • brand: HSG
  • year: 2021
  • MODEL: HS-TL220
  • application type: Cutting
  • Location: Poland
  • machine type: Tube Cutting Machine

Technical Information - HSG HS-TL220

Movement

  • Number of Axes: 3

Technical Specification

  • Laser Power: 3 kW

Additional Information

  • Positioning accuracy: ±0.03 mm/m

  • Repositioning accuracy: ±0.03 mm

  • Maximum no-load speed: 110 m/min

  • Chuck rotation speed: 100 rpm

  • Maximum acceleration: 1.0 G

  • Material processing capacity:

    • Round tubes: Ø20–210 mm

    • Square tubes: 20 × 20 mm to 150 × 150 mm

  • Maximum weight of a single tube: 100 kg

  • Bevel cutting: No

  • Chuck type: Standard pneumatic chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
